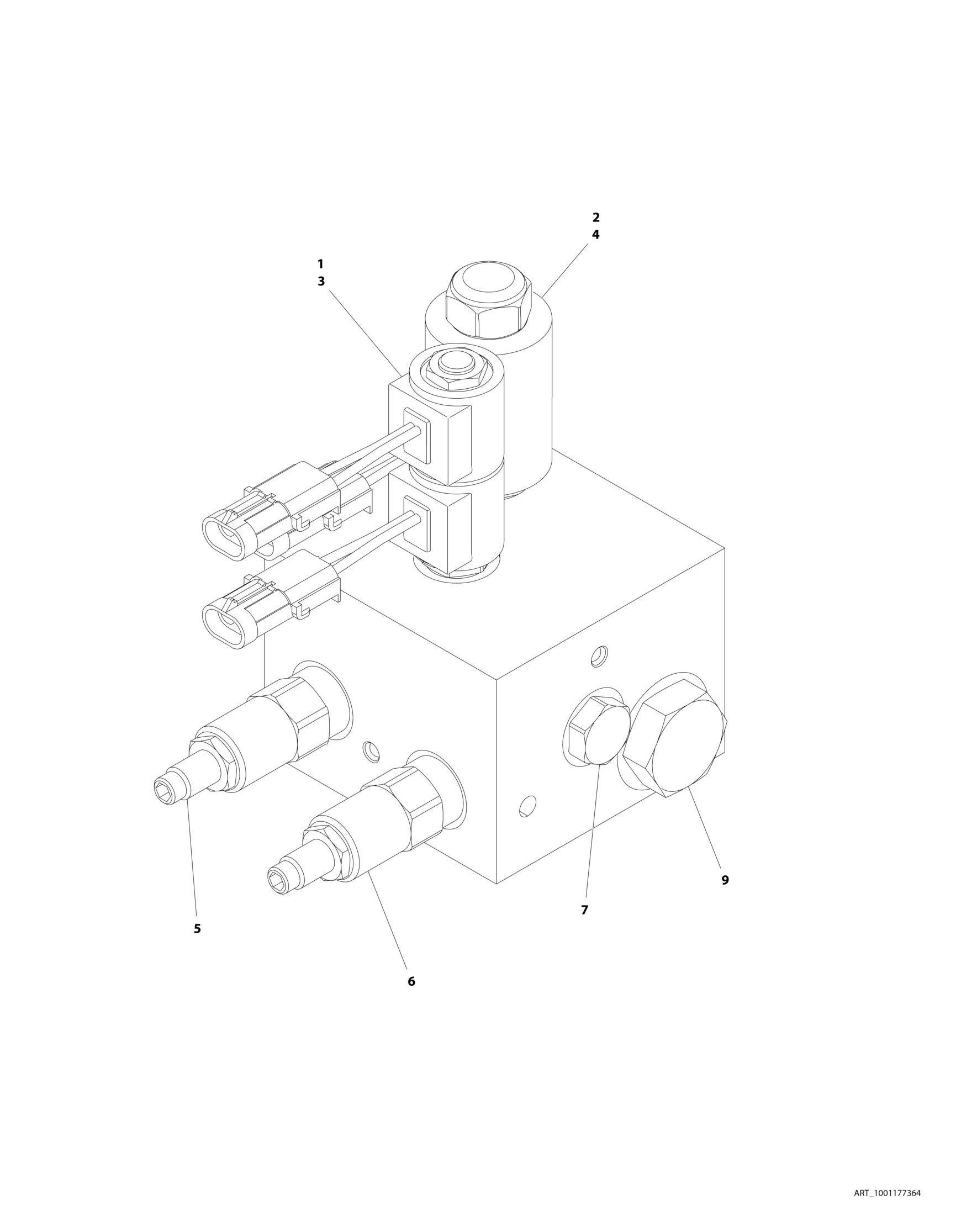

FIGURE 1 23. BRAKE/STEER VALVE ASSEMBLY

FIGURE 1-23. BRAKE/STEER VALVE ASSEMBLY

FIGURE 1-23. BRAKE/STEER VALVE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001177364 Ref BRAKE/STEER VALVE ASSEMBLY 1 7017433 1 Cartridge, without Coil (Steer) 1 7017402 1 Seal Kit - 7017433 Cartridge 2 7021611 1 Cartridge, Proportional without Coil (Flow Control) 2 7012518 1 Seal Kit - 7021611 Cartridge 3 7021609 2 Coil 4 7021618 1 Coil 5 7021659 1 Cartridge, Relief (Main) 5 7012972 1 Seal Kit - 7021659 6 7017488 1 Cartridge, Relief (Steer) 6 7012998 1 Seal Kit - 7017488 Cartridge 7 10837580 1 Cartridge, Load Shuttle 7 7010543 1 Seal Kit - 7012941 Cartridge 9 7021616 1 Cartridge, Filter

REV

G

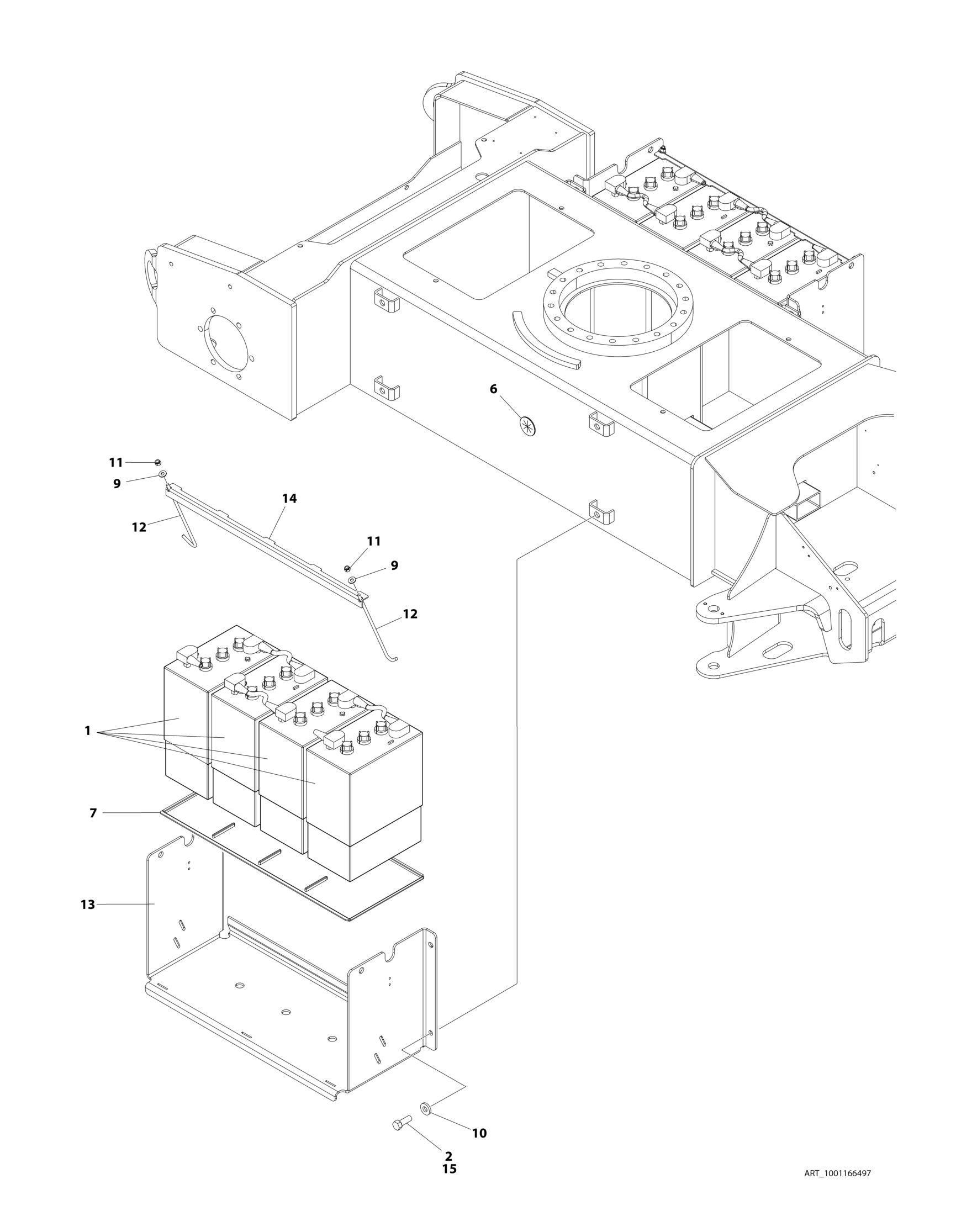

FIGURE 1-24. BATTERY BOX INSTALLATION - STANDARD (ALL SPECS EXCEPT AUSTRALIAN, CE AND CHINA SPECS)

FIGURE 1-24. BATTERY BOX INSTALLATION - STANDARD (ALL SPECS EXCEPT AUSTRALIAN, CE AND CHINA SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001166497 Ref BATTERY BOX INSTALLATION 1 0400055 8 Battery (Wet) 1 7016177 8 Battery (Dry) 2 0641811 8 Bolt 1/2 X 1-3/8 6 2540045 2 Grommet 7 3000003 2 Liner, Battery Box 9 4751500 4 Washer 5/16 10 4891800 8 Washer 1/2 Hardened 11 88521205 4 Nut 5/16 12 1001093382 4 Bolt, J-Bolt 13 1001166495 2 Tray, Battery 14 1001166496 2 Battery Hold Down 15 0100011 AR Compound, Locking

REV

C
