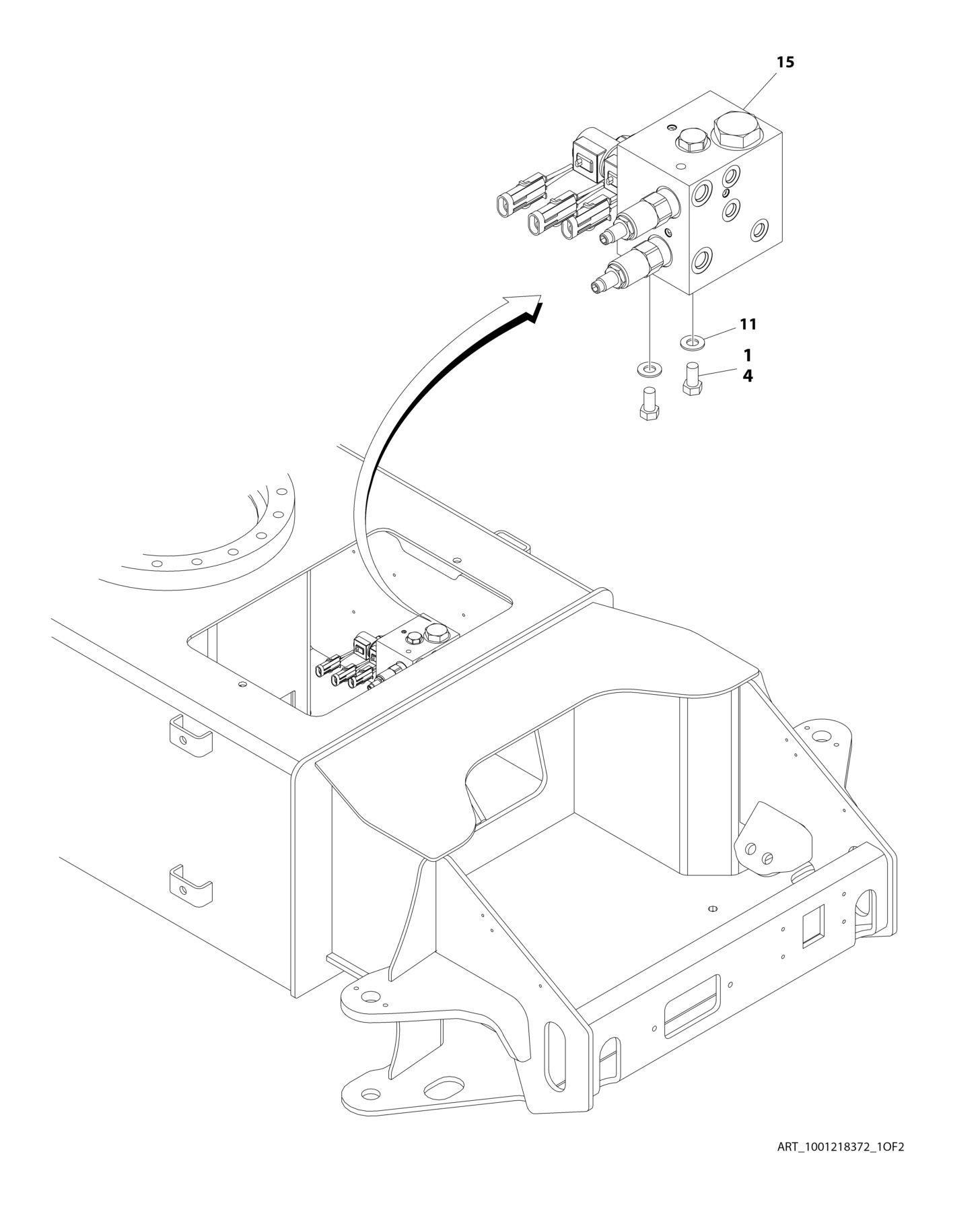

FIGURE 1 22. VALVE INSTALLATION FRAME MOUNTED M450AJ

FIGURE 1-22. VALVE INSTALLATION - FRAME MOUNTED - M450AJ

FIGURE 1-22. VALVE INSTALLATION - FRAME MOUNTED - M450AJ

ITEM PART NUMBER QTY

DESCRIPTION

1001218372 Ref VALVE INSTALLATION - FRAME MOUNTED 1 0100011 AR Compound, Locking 4 0641606 2 Bolt 3/8 x 3/4 11 4711600 4 Washer 3/8 15 1001177364 1 Steer/Brake Valve Assembly (See Separate Breakdown in this Section)

REV

A
