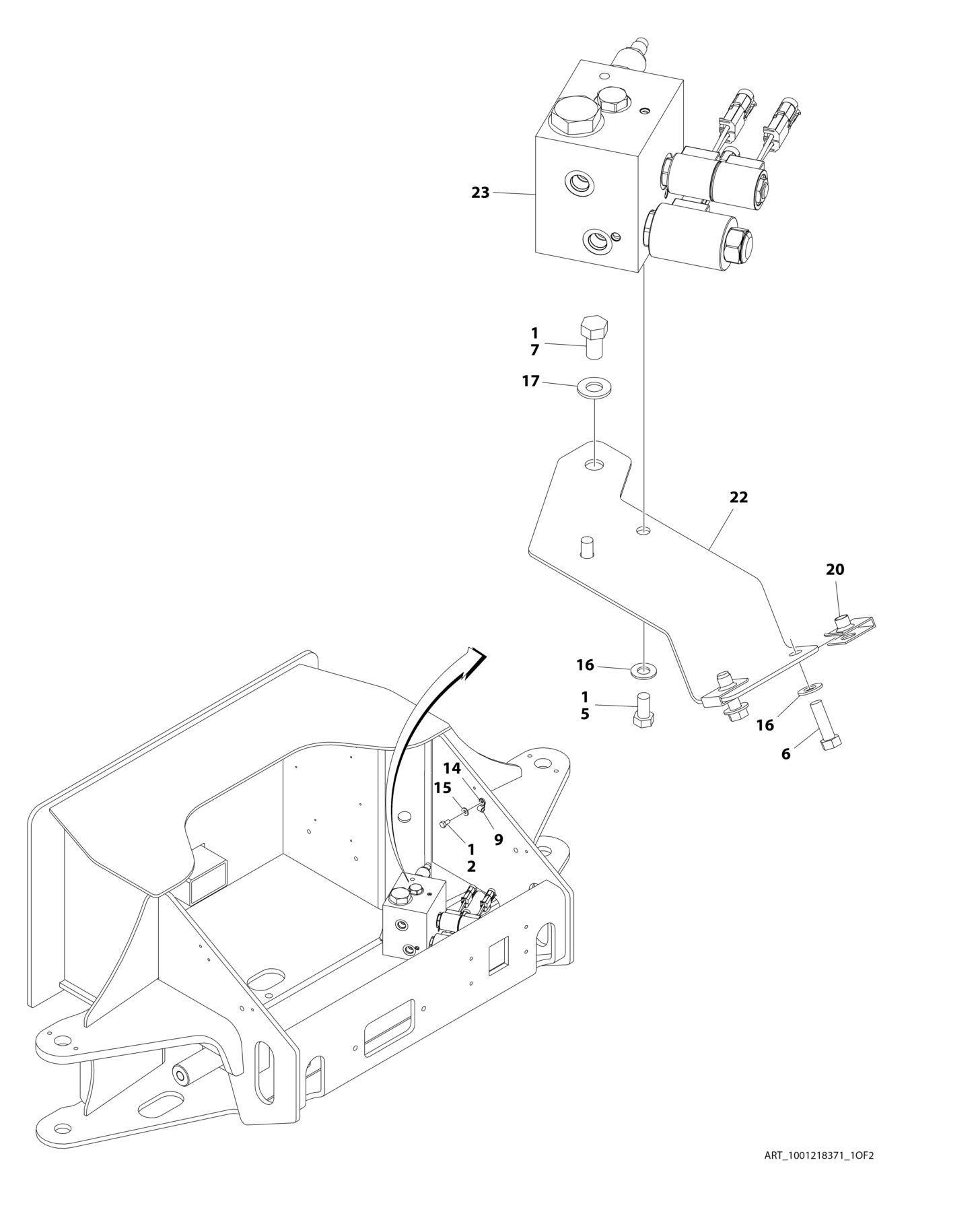

FIGURE 1 21. VALVE INSTALLATION FRAME MOUNTED E450AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001218371 Ref VALVE INSTALLATION - FRAME MOUNTED 1 0100011 AR Compound, Locking 2 0641404 1 Bolt 1/4 x 1/2 5 0641606 2 Bolt 3/8 x 3/4 6 0641610 2 Bolt 3/8 x 1-1/4 7 0641807 1 Bolt 1/2 x 7/8 9 1320040 1 Clamp 14 4240032 1 Tie-Strap 15 4711400 1 Washer 1/4 16 4711600 4 Washer 3/8 17 4711800 1 Washer 1/2 20 88662523 2 Nut, Tinnerman 22 1001166420 1 Bracket, Mounting 23 1001177364 1 Steer/Brake Valve Assembly (See Separate Breakdown in this Section)
