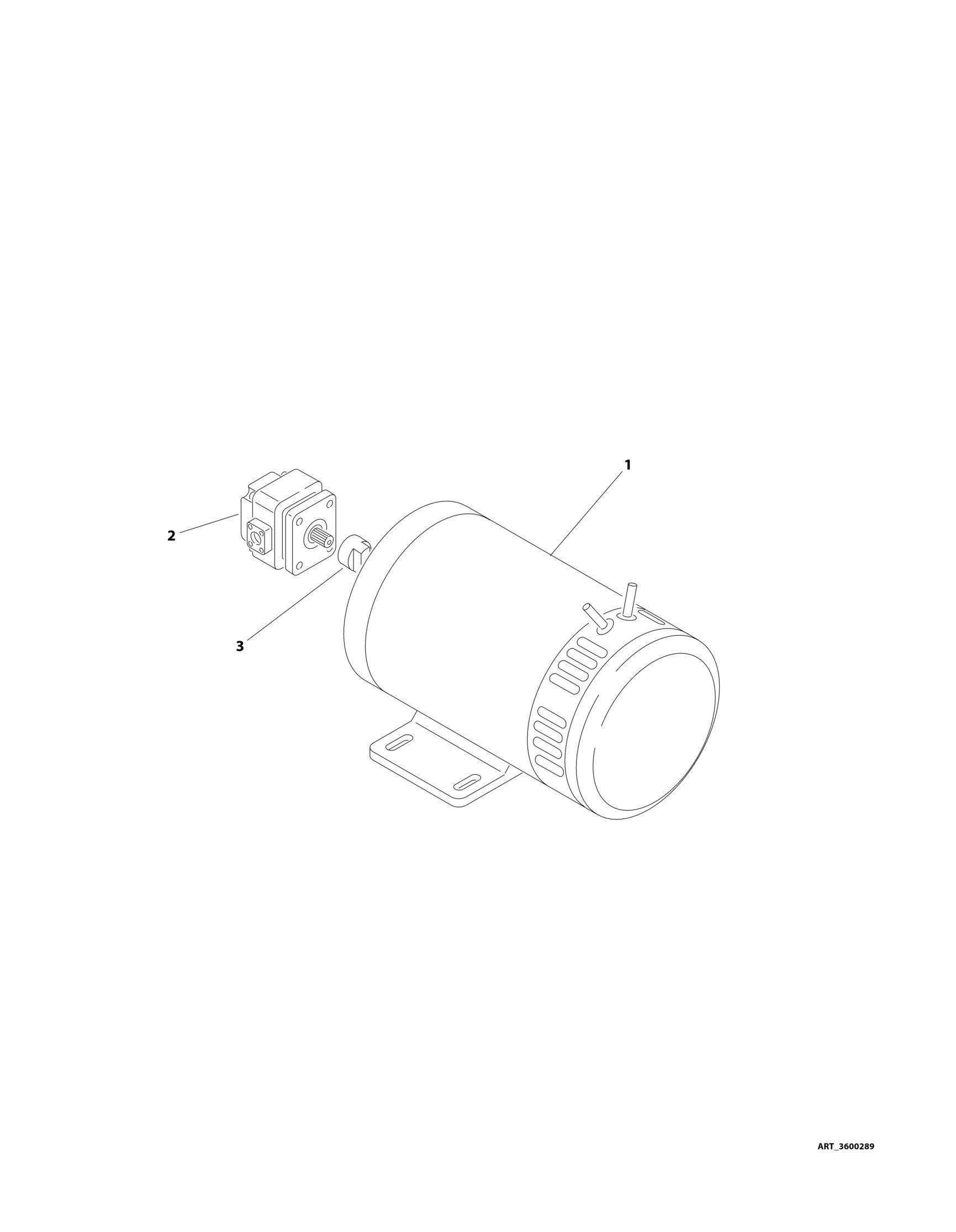

FIGURE 1 18. MOTOR/PUMP ASSEMBLY
FIGURE 1-18. MOTOR/PUMP ASSEMBLY
FIGURE 1-18. MOTOR/PUMP ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
3600289 Ref MOTOR/PUMP ASSEMBLY 1 7021318 1 Motor Assembly 1 7021361 1 Brush Kit 1 70003171 1 Spring, Brush 1 70001961 1 Seal, Oil 2 7021319 1 Pump Assembly 2 7021377 1 Seal Kit 3 70002523 1 Coupling
REV
A
