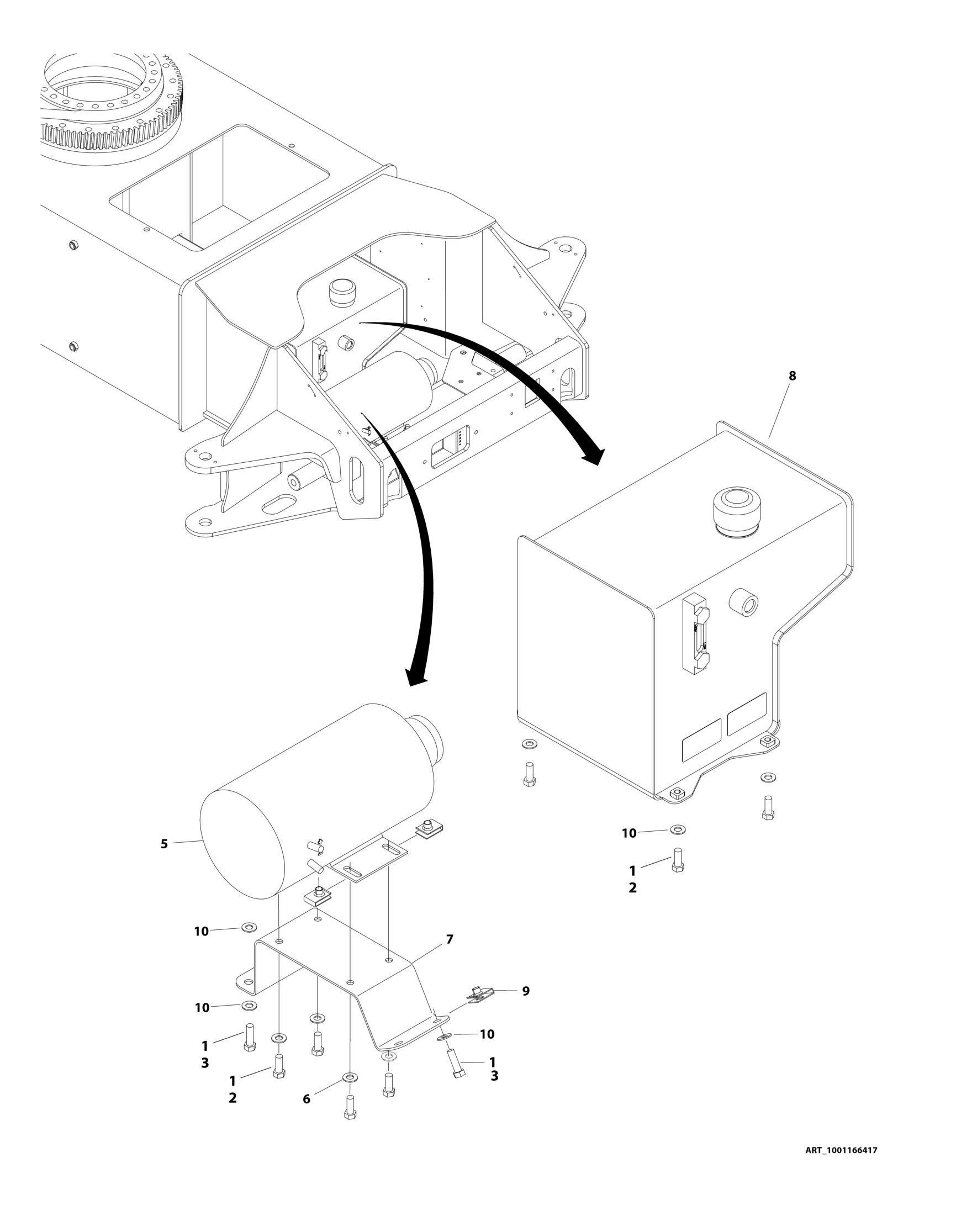

FIGURE 1 16. MOTOR/PUMP/TANK INSTALLATION E450A/E450AJ NON UL SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001166417 Ref MOTOR/PUMP/TANK INSTALLATION 1 0100011 AR Compound, Locking 2 0641608 8 Bolt 3/8 x 1 3 0641610 4 Bolt 3/8 x 1-1/4 5 3600289 1 Motor/Pump Assembly (See Separate Breakdown in this Section) 6 4711600 4 Washer 3/8 7 1001166419 1 Plate, Mounting 8 1001171213 1 Tank, Hydraulic (See Separate Breakdown in this Section) 9 88662523 8 Nut, Tinnerman 10 4891600 8 Washer 3/8 Hardened
REV
F
