FIGURE 1 11. ELECTRICAL PLATE ASSEMBLY RH (NON UL SPECS

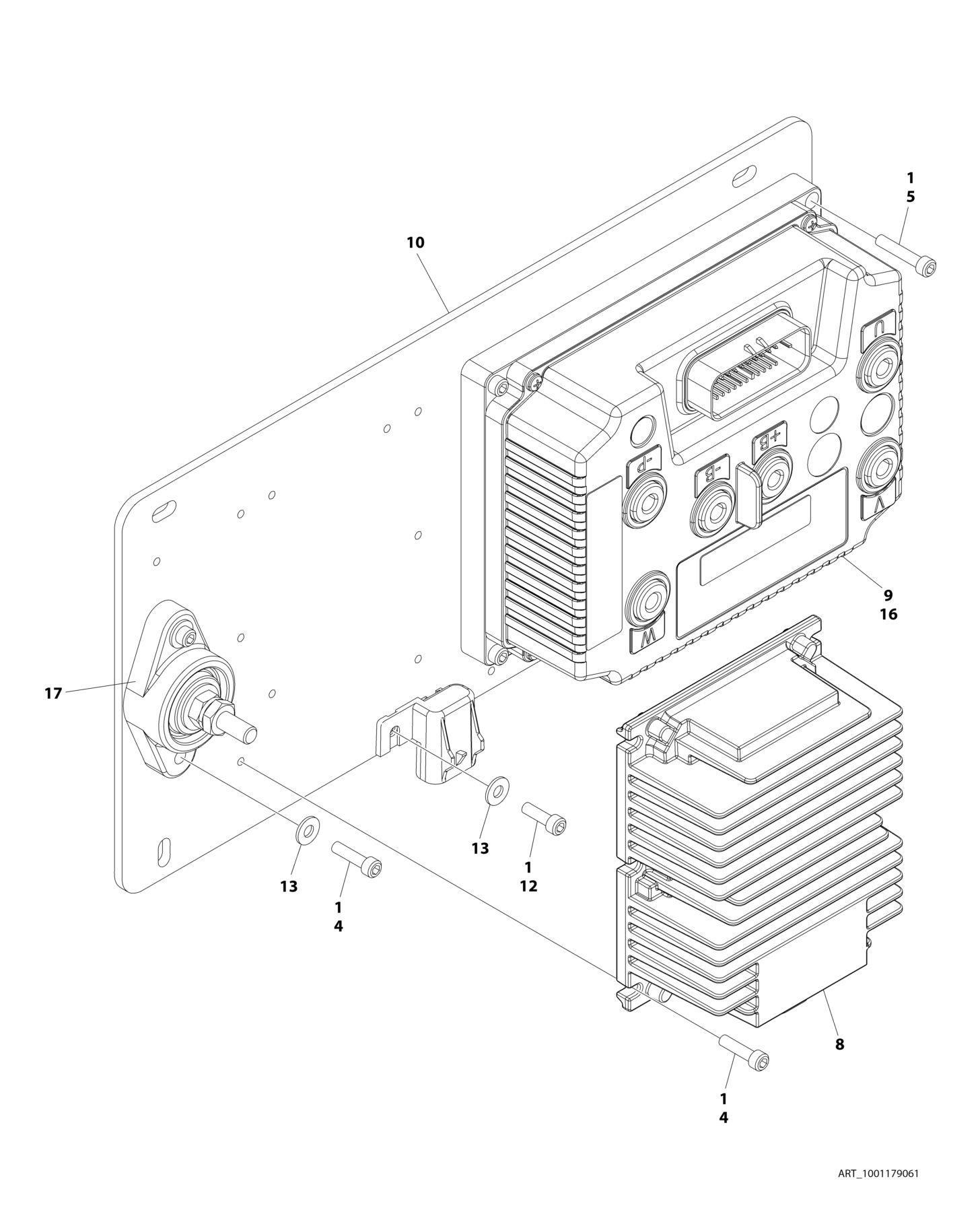

FIGURE 1-11. ELECTRICAL PLATE ASSEMBLY - RH (NON-UL SPECS)

FIGURE 1-11. ELECTRICAL PLATE ASSEMBLY - RH (NON-UL SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001179061 Ref ELECTRICAL PLATE ASSEMBLY - RH 1 0100035 AR Compound, Locking 4 3931012 8 Capscrew #10 X 3/4 5 3931016 4 Capscrew #10 X 1 8 1001174447 1 Converter 9 1001178339 1 Module, Drive 10 1001179064 1 Plate 12 3931010 1 Capscrew #10 X 5/8 13 4711000 3 Washer #10 16 0100083 AR Grease, Heat Transfer 17 1001212359 1 Stud, Power Distribution

REV

F
