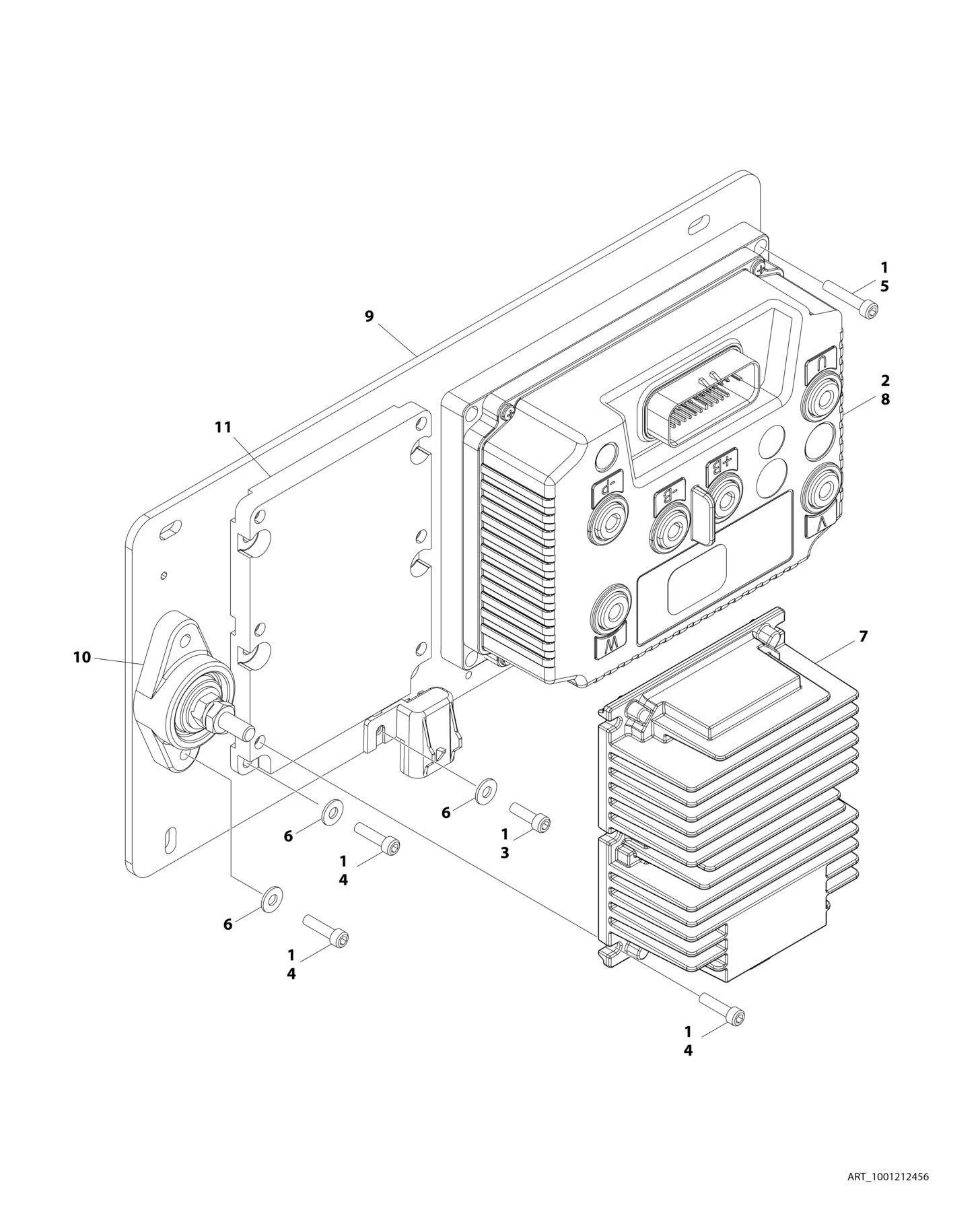

FIGURE 1 12. ELECTRICAL PLATE ASSEMBLY RH (UL SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001212456 Ref ELECTRICAL PLATE ASSEMBLY - RH 1 0100035 AR Compound, Locking 2 0100083 AR Grease, Heat Transfer 3 3931010 1 Capscrew #10 X 5/8 4 3931012 14 Capscrew #10 X 3/4 5 3931016 4 Capscrew #10 X 1 6 4711000 9 Washer #10 7 1001174447 1 Converter 8 1001178339 1 Module, Drive 9 1001179064 1 Plate 10 1001212359 1 Stud 11 1001212450 1 Insulate
REV
A
