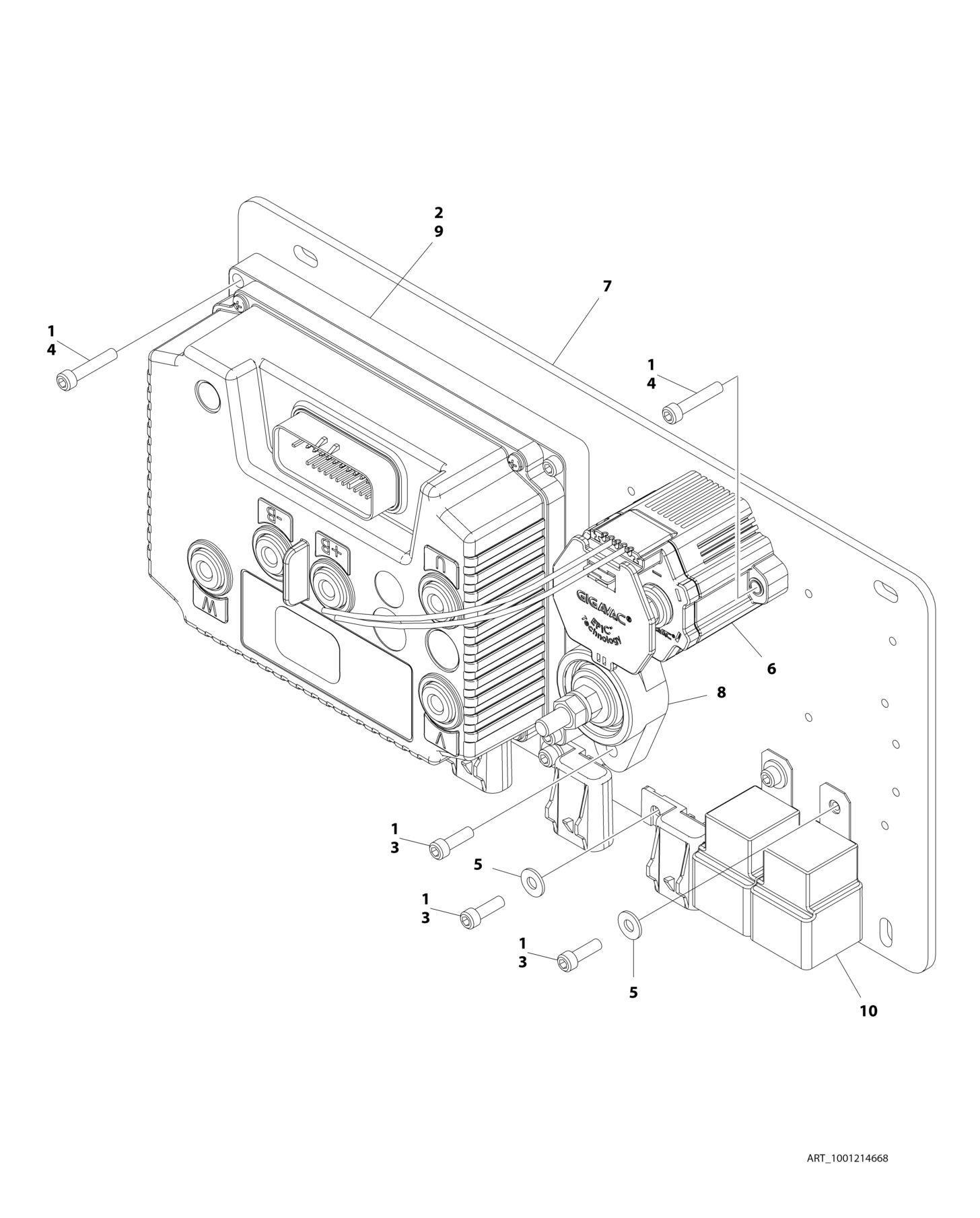

FIGURE 1 10. ELECTRICAL PLATE ASSEMBLY LH (UL SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001214668 Ref ELECTRICAL PLATE ASSEMBLY - LH 1 0100035 AR Compound, Locking 2 0100083 AR Grease, Heat Transfer 3 3931010 8 Capscrew #10 x 5/8 4 3931016 6 Capscrew #10 x 1 5 4711000 6 Washer #10 6 1001170367 1 Relay, Contacter 6 70004827 1 Receptacle, Female - 2 Position 7 1001179064 1 Plate 8 1001186860 1 Stud, Power Distribution 9 1001192212 1 Module, Drive 10 1001214667 2 Relay
REV
A
