FIGURE 1 9. ELECTRICAL PLATE ASSEMBLY LH (NON UL SPECS

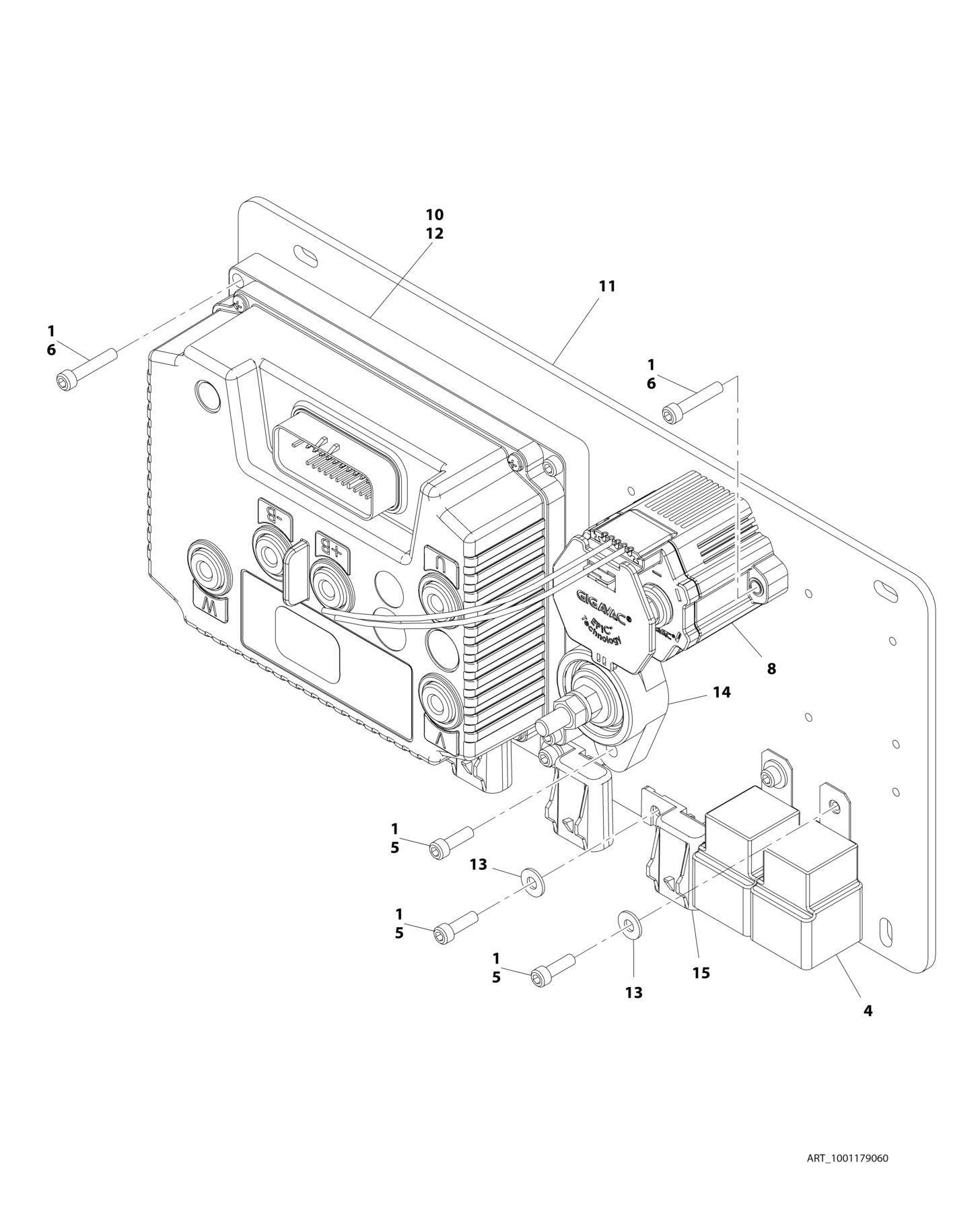

FIGURE 1-9. ELECTRICAL PLATE ASSEMBLY - LH (NON-UL SPECS)

FIGURE 1-9. ELECTRICAL PLATE ASSEMBLY - LH (NON-UL SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001179060 Ref ELECTRICAL PLATE ASSEMBLY 1 0100035 AR Compound, Locking 4 3740080 2 Relay 5 3931010 8 Capscrew #10 X 5/8 6 3931016 6 Capscrew #10 X 1 8 1001170367 1 Relay, Contacter 8 70004827 1 Receptacle, Female - 2 Position 10 1001192212 1 Module, Drive 11 1001179064 1 Plate 12 0100083 AR Grease, Heat Transfer 13 4711000 6 Washer #10 14 1001186860 1 Stud, Power Distribution 15 1001217842 4 Fuseholder

REV

G
