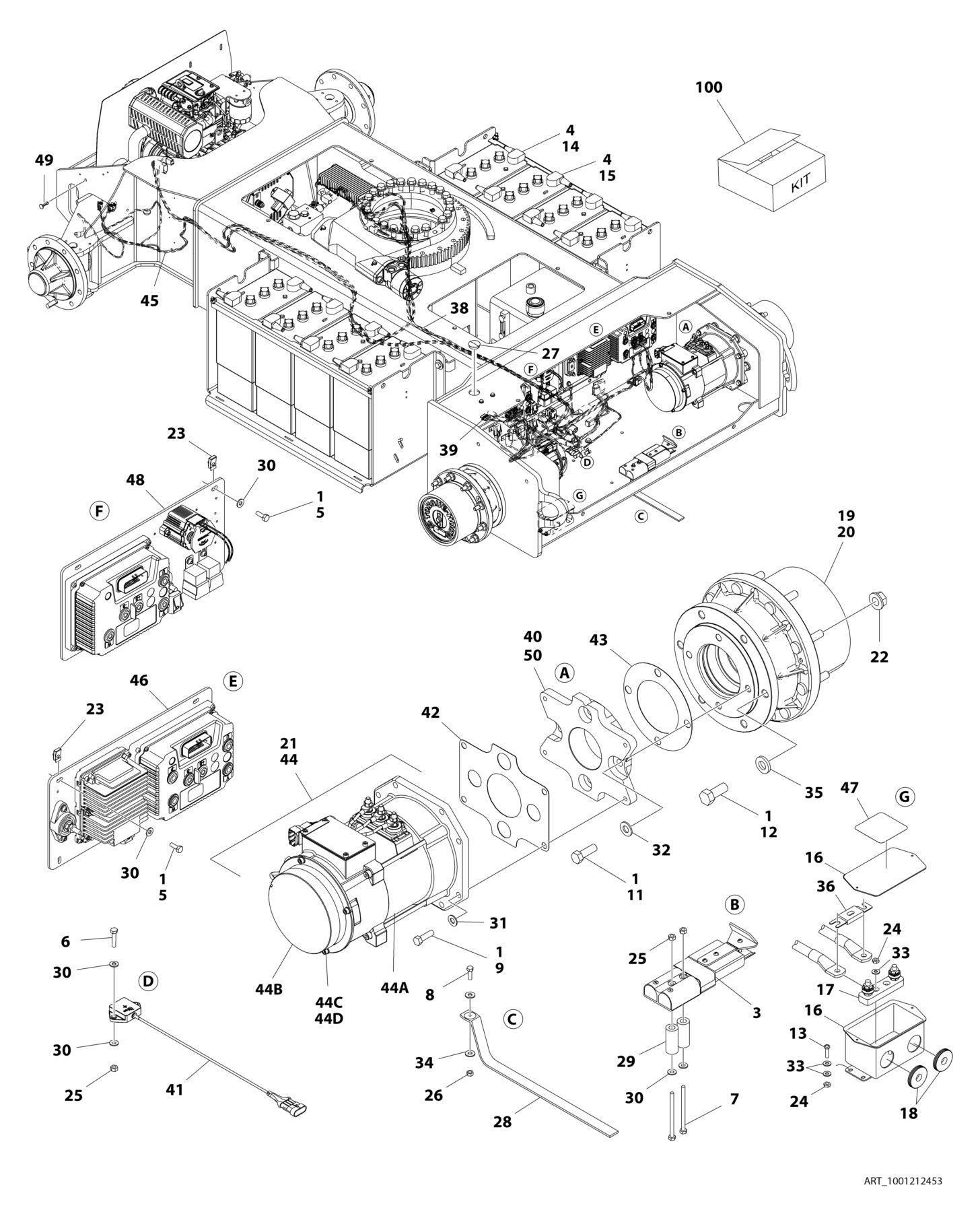

FIGURE 1 6. DRIVE INSTALLATION E450A AND E450AJ (UL SPECS
ITEM PART NUMBER QTY
1001212453 Ref DRIVE INSTALLATION
DESCRIPTION
1 0100011 AR Compound, Locking 3 0100048 AR Compound, Silicone 4 0100051 AR Grease, Battery Terminal 5 0641406 8 Bolt 1/4 x 3/4 6 0641408 2 Bolt 1/4 x 1 7 0641430 2 Bolt 1/4 x 3-3/4 8 0641508 1 Bolt 5/16 x 1 9 0641610 8 Bolt 3/8 x 1-1/4 11 0641812 8 Bolt 1/2 x 1-1/2 12 0682014 12 Bolt 5/8 x 1-3/4 Grade 8 13 0721006 4 Bolt #10 x 3/4 14 0840031 8 Boot, Terminal - "d" Shaped 15 0840032 8 Boot, Terminal - "b" Shaped 16 0861375 1 Box 17 2400044 1 Block, Fuse 18 2540037 2 Grommet 19 2780282 2 Drive Hub Assembly (See Separate Breakdown in this Section) 20 3020008 0.4 gal/ Lubricant, Gear - 80W-90 1.5L 21 3020037 AR Lube, Coupling Grease 22 3300426 18 Nut 5/8 23 3300454 8 Nut 1/4 24 3311001 6 Nut #10 25 3311401 4 Nut 1/4 26 3311505 1 Nut 5/16 27 3520035 1 Cap-Plug 28 4240084 1 Strap, Anti-Static 29 4568114 2 Tube, Spacer 30 4711400 14 Washer 1/4 31 4711600 8 Washer 3/8 32 4711800 8 Washer 1/2 33 4751000 10 Washer, 10 34 4751500 2 Washer 5/16 35 4892000 12 Washer 5/8 36 1001170365 1 Fuse 400 Amp 38 1001178405 1 Chassis to Turntable Harness (See Separate Breakdown in ELECTRICAL SECTION) 39 1001178629 1 Traction Harness (See Separate Breakdown in ELECTRICAL SECTION) 40 1001219722 2 Adapter, Motor 41 1001219601 1 Sensor 41 See Note 1 Receptacle, Female - 4 Position (Note: Not Available for Purchase) 41 1001196589 4 Terminal 42 1001220271 2 Seal 43 1001182960 2 Seal 44 1001184854 2 Drive Motor and Brake Assembly 44A 1001182550 2 Drive Motor Assembly (See Separate Breakdown in this Section) 44B 1001184852 2 Drive Brake Assembly
REV
D
ITEM PART NUMBER QTY
DESCRIPTION
44B 70005415 2 O-Ring Between Brake and Motor (1 Per Assembly) (Not Shown) 44C 4031707 8 Capscrew M6 x 16 44D 1001109892 8 Washer M6 45 1001188528 1 Steer/Brake Harness (See Separate Breakdown in ELECTRICAL SECTION) 46 1001212456 1 Electrical Plate Assembly - RH (See Separate Breakdown in this Section) 47 1001213626 1 Decal - 400 Amp Fuse 48 1001214668 1 Electrical Plate Assembly - LH (See Separate Breakdown in this Section) 49 4240175 1 Tie-Strap Clamp 50 0100020 AR Sealant 100 1001212454 1 Battery Cable Kit (See Separate Breakdown in ELECTRICAL SECTION)
