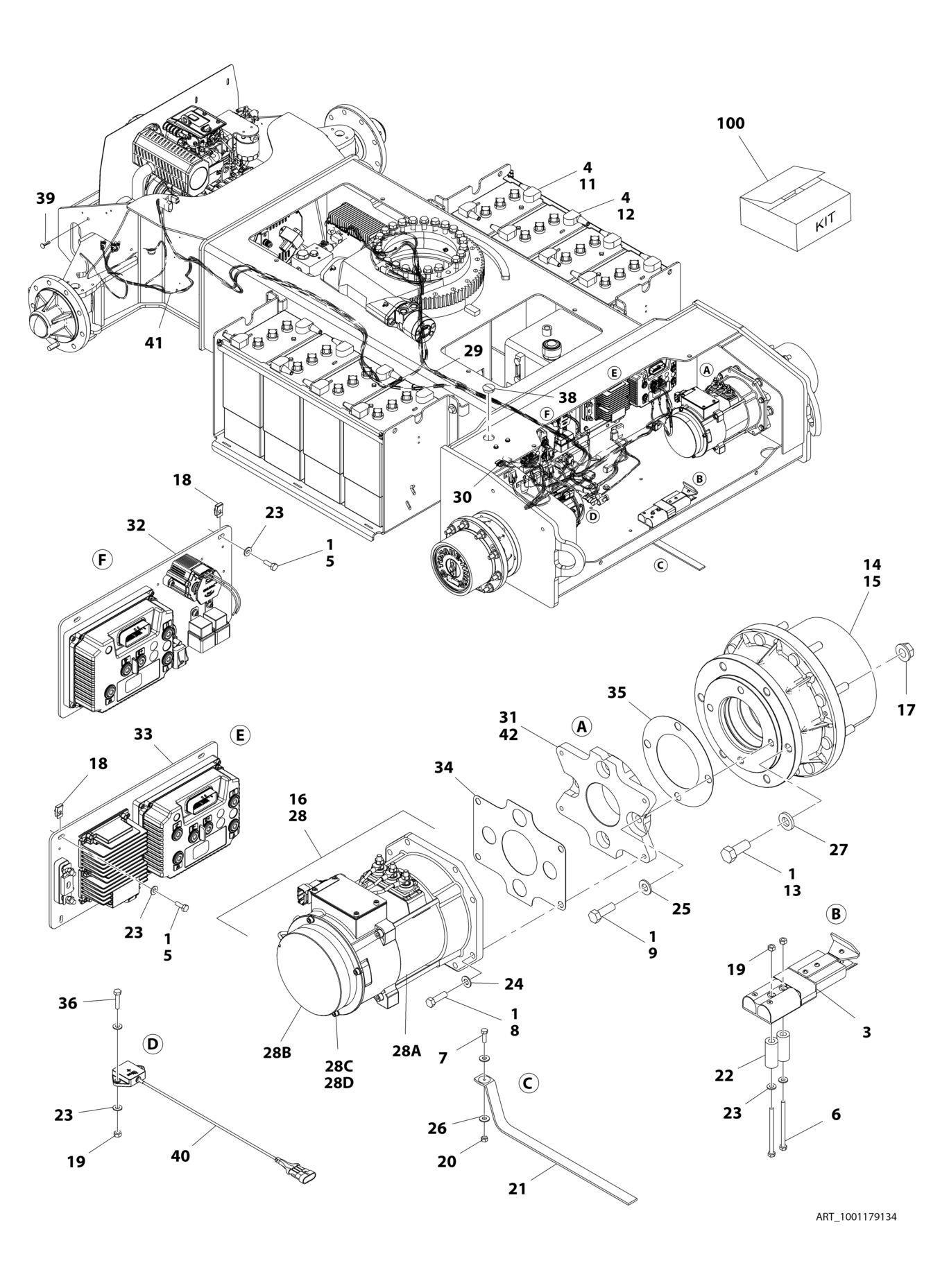

FIGURE 1 5. DRIVE INSTALLATION E450A AND E450AJ (NON UL SPECS
ITEM PART NUMBER QTY
1001179134 Ref DRIVE INSTALLATION
DESCRIPTION
1 0100011 AR Compound, Locking 3 0100048 AR Compound, Silicone 4 0100051 AR Grease, Battery Terminal 5 0641406 8 Bolt 1/4 X 3/4 6 0641430 2 Bolt 1/4 X 3-3/4 7 0641508 1 Bolt 5/16 X 1 8 0641610 8 Bolt 3/8 X 1-1/4 9 0641812 8 Bolt 1/2 X 1-1/2 11 0840031 8 Boot, Terminal - "d" Shaped 12 0840032 8 Boot, Terminal - "b" Shaped 13 0682014 12 Bolt 5/8 X 1-3/4 Grade 8 14 2780282 2 Drive Hub Assembly (See Separate Breakdown in this Section) 15 3020008 0.4 gal/ Lubricant, Gear - 80W-90 1.5L 16 3020037 AR Lube, Coupling Grease 17 3300426 18 Nut 5/8 18 3300454 8 Nut 1/4 19 3311401 4 Nut 1/4 20 3311505 1 Nut 5/16 21 4240084 1 Strap, Anti-Static 22 4568114 2 Tube, Spacer 23 4711400 14 Washer 1/4 24 4711600 8 Washer 3/8 25 4711800 8 Washer 1/2 26 4751500 2 Washer 5/16 27 4892000 12 Washer 5/8 28 1001184854 2 Drive Motor and Brake Assembly 28A 1001182550 2 Drive Motor Assembly (See Separate Breakdown in this Section) 28B 1001184852 2 Drive Brake Assembly 28B 70005415 2 O-Ring Between Brake and Motor (1 Per Assembly) (Not Shown) 28C 4031707 8 Capscrew M6 x 16 28D 1001109892 8 Washer M6 29 1001178405 1 Chassis to Turntable Harness (See Separate Breakdown in ELECTRICAL SECTION) 30 1001178629 1 Traction Harness (See Separate Breakdown in ELECTRICAL SECTION) 31 1001219722 2 Adapter, Motor 32 1001179060 1 Electrical Plate Assembly - LH (See Separate Breakdown in this Section) 33 1001179061 1 Electrical Plate Assembly - RH (See Separate Breakdown in this Section) 34 1001220271 2 Seal 35 1001182960 2 Seal 36 0641408 2 Bolt 1/4-20 x 1 38 3520035 1 Cap-Plug 39 4240175 1 Tie-Strap Clamp 40 1001219601 1 Sensor 40 See Note 1 Receptacle, Female - 4 Position (Note: Not Available for Purchase)
REV
I
ITEM PART NUMBER QTY DESCRIPTION
40 1001196589 4 Terminal 41 1001188528 1 Steer/Brake Harness (See Separate Breakdown in ELECTRICAL SECTION) 42 0100020 AR Sealant 100 1001190088 1 Battery Cable Kit (See Separate Breakdown in ELECTRICAL SECTION)
