FIGURE 1 3. HUB SPINDLE ASSEMBLY RH

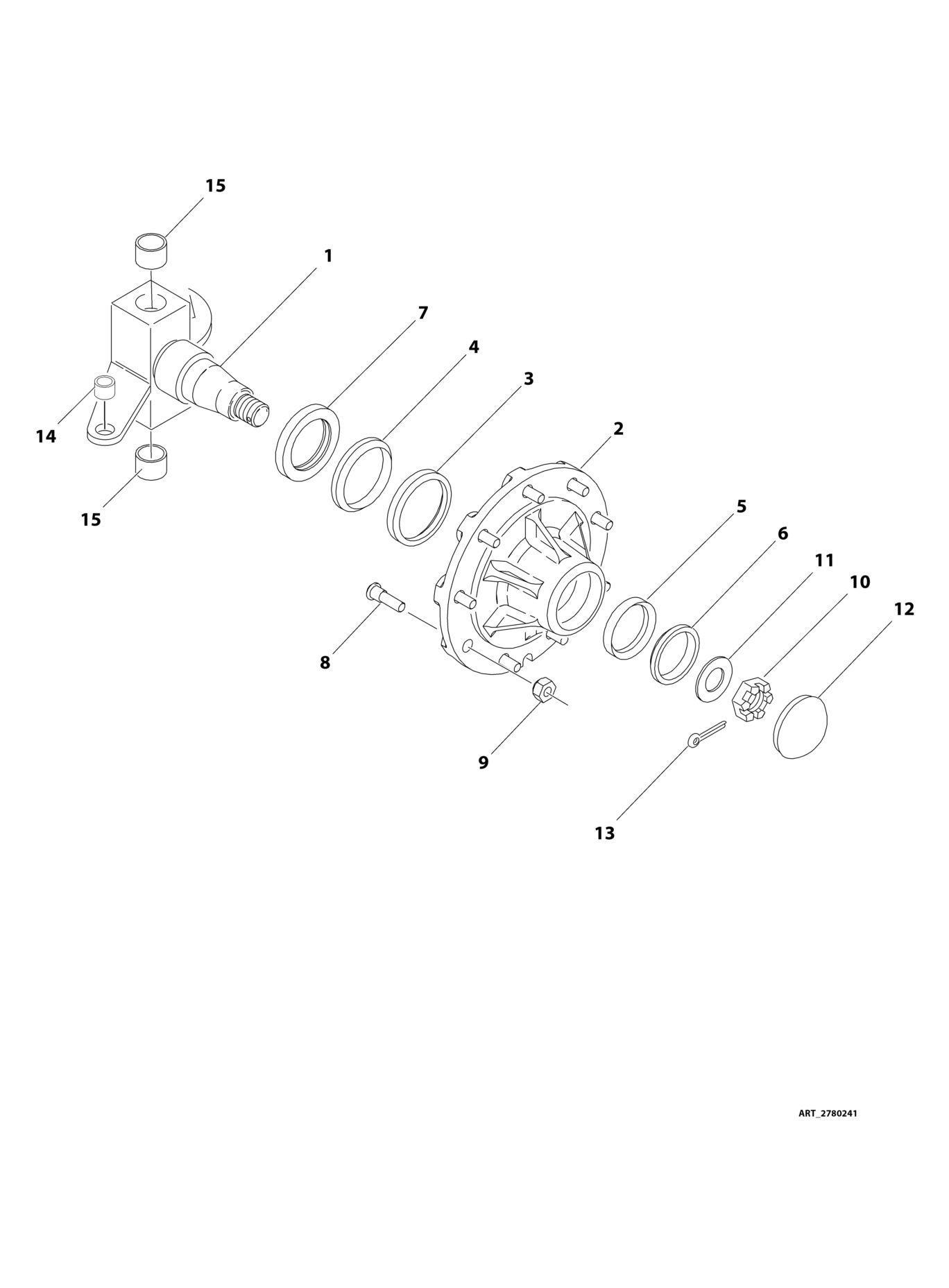

FIGURE 1-3. HUB - SPINDLE ASSEMBLY - RH

FIGURE 1-3. HUB - SPINDLE ASSEMBLY - RH

ITEM PART NUMBER QTY

DESCRIPTION

2780241 Ref HUB - SPINDLE ASSEMBLY, RH 1 4130351 1 Spindle R.H. 2 7020035 1 Hub 3 7020036 1 Cup, Bearing - Inner 4 7020037 1 Cone, Bearing - Inner 5 7020038 1 Cup, Bearing - Outer 6 7020039 1 Cone, Bearing - Outer 7 7020040 1 Seal 8 7020041 9 Stud, Wheel 9 7020042 9 Lugnut 10 7020054 1 Nut, Castle 11 7020055 1 Washer, Spindle 12 7020137 1 Dust Cap 13 7020140 1 Pin, Cotter 14 0962140 1 Bushing 15 0961951 2 Bushing

REV

C
