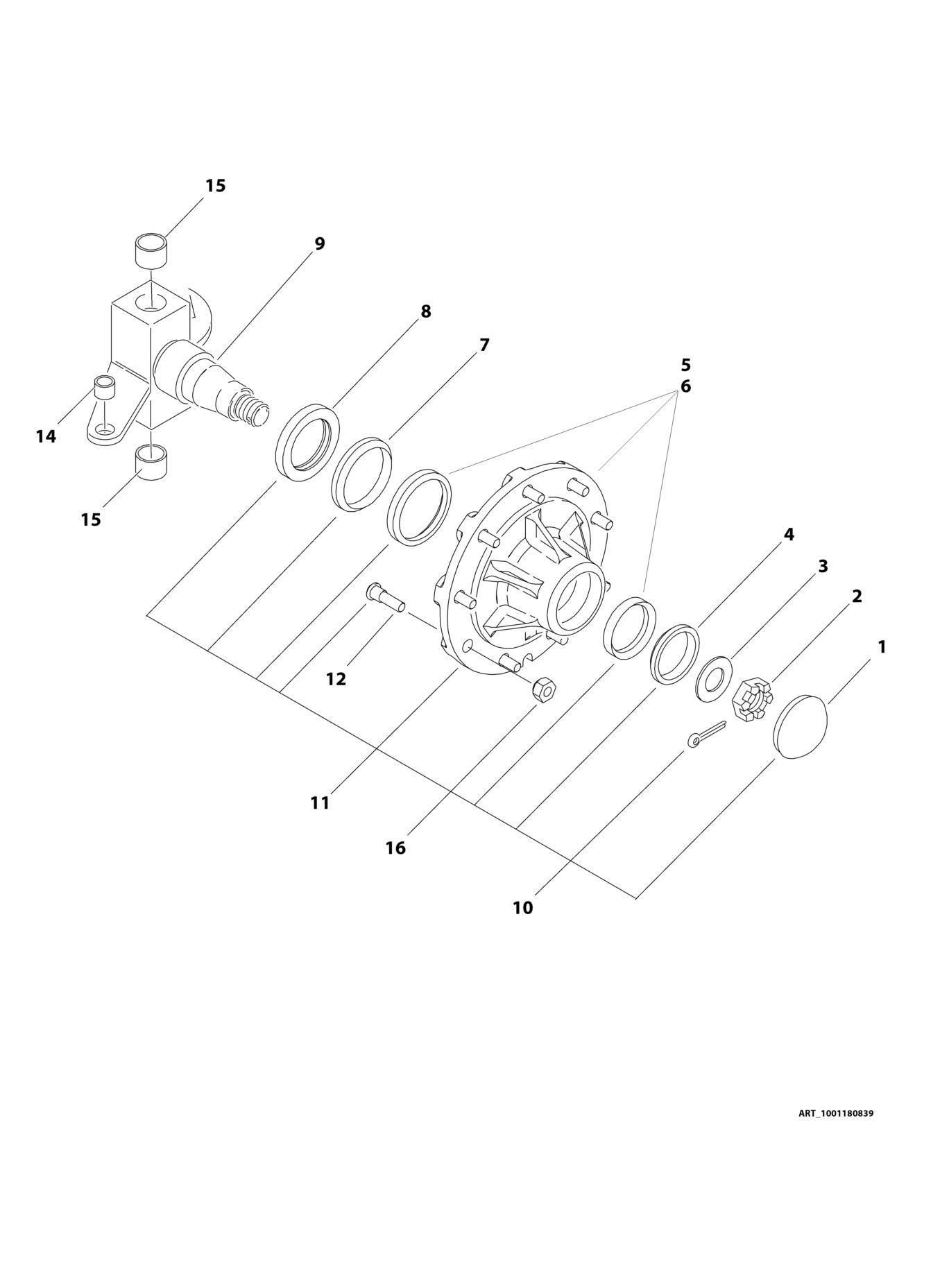

FIGURE 1 4. HUB SPINDLE ASSEMBLY LH

FIGURE 1-4. HUB - SPINDLE ASSEMBLY - LH

FIGURE 1-4. HUB - SPINDLE ASSEMBLY - LH

ITEM PART NUMBER QTY

DESCRIPTION

1001180839 Ref HUB - SPINDLE ASSEMBLY - LH 1 7020137 1 Dust Cap 2 7020054 1 Nut, Castle 3 7020055 1 Washer, Spindle 4 7020039 1 Cone, Bearing - Outer 5 See Note NLA Hub (Note: Use Item 11) 6 See Note 1 Grease, Lithium (Note: Purchase Locally) 7 7020037 1 Cone, Bearing - Inner 8 7020040 1 Seal 9 70005216 1 Spindle 10 7020140 1 Pin, Cotter 11 70005215 1 Hub Assembly (Includes Items 1,4,5,7,8 & 12)) 12 0630490 9 Stud, Wheel 14 0962140 1 Bearing 15 0961951 2 Bearing 16 3300426 9 Lugnut (Note: Must be Purchased Separately)
