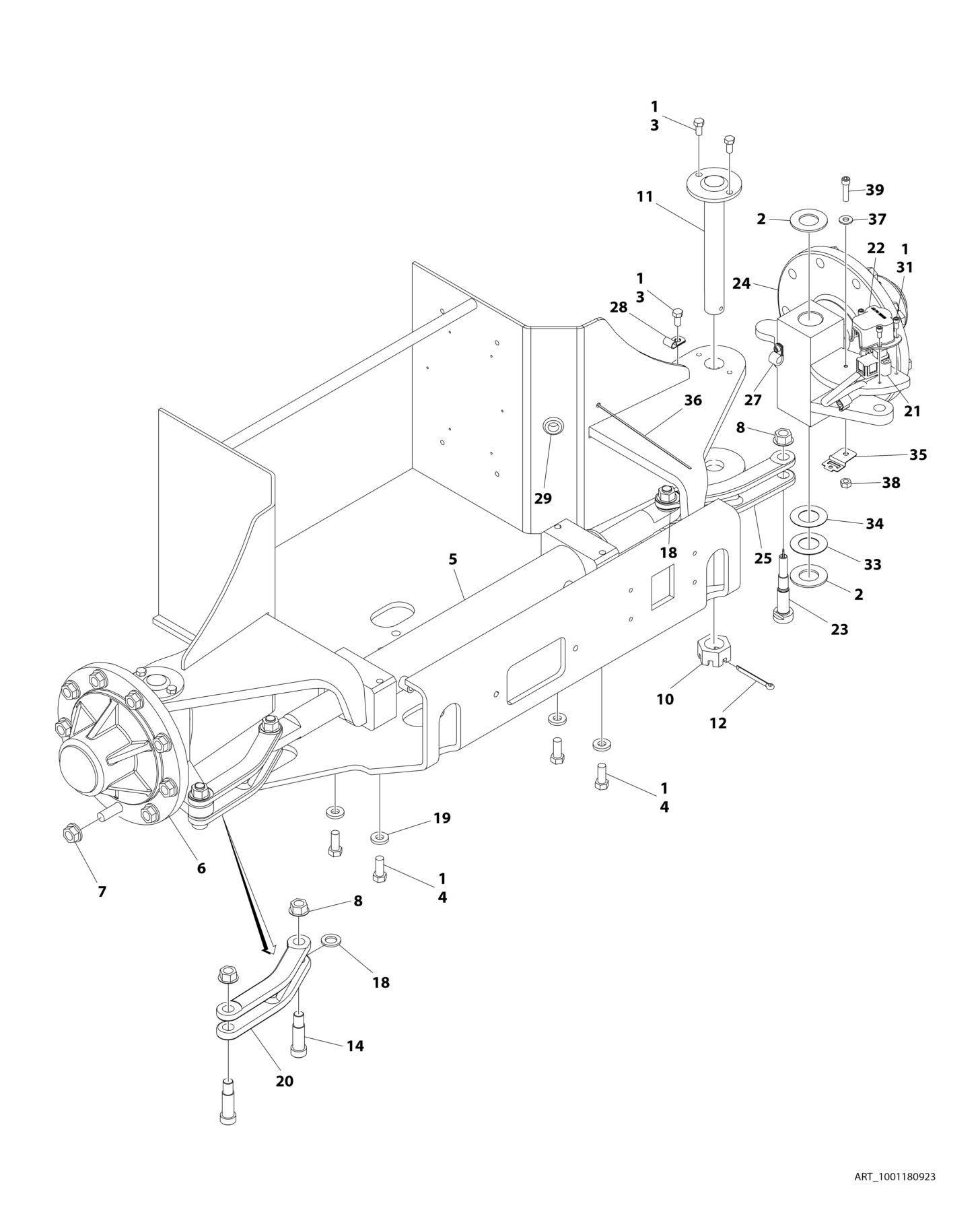

FIGURE 1 1. STEERING INSTALLATION E450AJ (CHINA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001180923 Ref STEERING INSTALLATION 1 0100011 AR Compound, Locking 2 1001193047 AR Bearing, Thrust 3 0641606 5 Bolt 3/8 X 3/4 4 0681810 4 Bolt 1/2 X 1-1/4 Grade 8 5 1001221480 1 Steer Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 6 2780241 1 Hub - Spindle Assembly - RH (See Separate Breakdown in this Section) 7 3300426 18 Nut 5/8 8 3312008 4 Nut 5/8 10 3323003 2 Nut 1-1/4 11 3422692 2 Kingpin 12 3450810 2 Pin, Cotter 14 3900109 3 Screw, Shoulder 18 4740156 2 Washer 19 4891800 4 Washer 1/2 20 1001153021 1 Link 21 1001161117 1 Switch, Angle Sensor 21 4460536 1 Receptacle, Female - 3 Position 21 4460464 3 Pin, Male 22 1001169423 1 Cover 23 1001180835 1 Pin 24 1001180839 1 Hub - Spindle Assembly - LH (See Separate Breakdown in this Section) 25 1001180841 1 Link 27 1320041 1 Clamp 28 1320263 1 Clamp, Cable 29 2540038 1 Grommet 31 3931408 4 Capscrew 1/4 X 1/2 33 1001151395 1 Shim 18Ga 34 1001151428 1 Shim 20Ga 35 1001153749 1 Clip, Connector 36 4240175 1 Tie-Strap 37 4711400 1 Washer 1/4 38 3311405 1 Nut 1/4 39 3931416 1 Capscrew 1/4 x 1
REV
G
