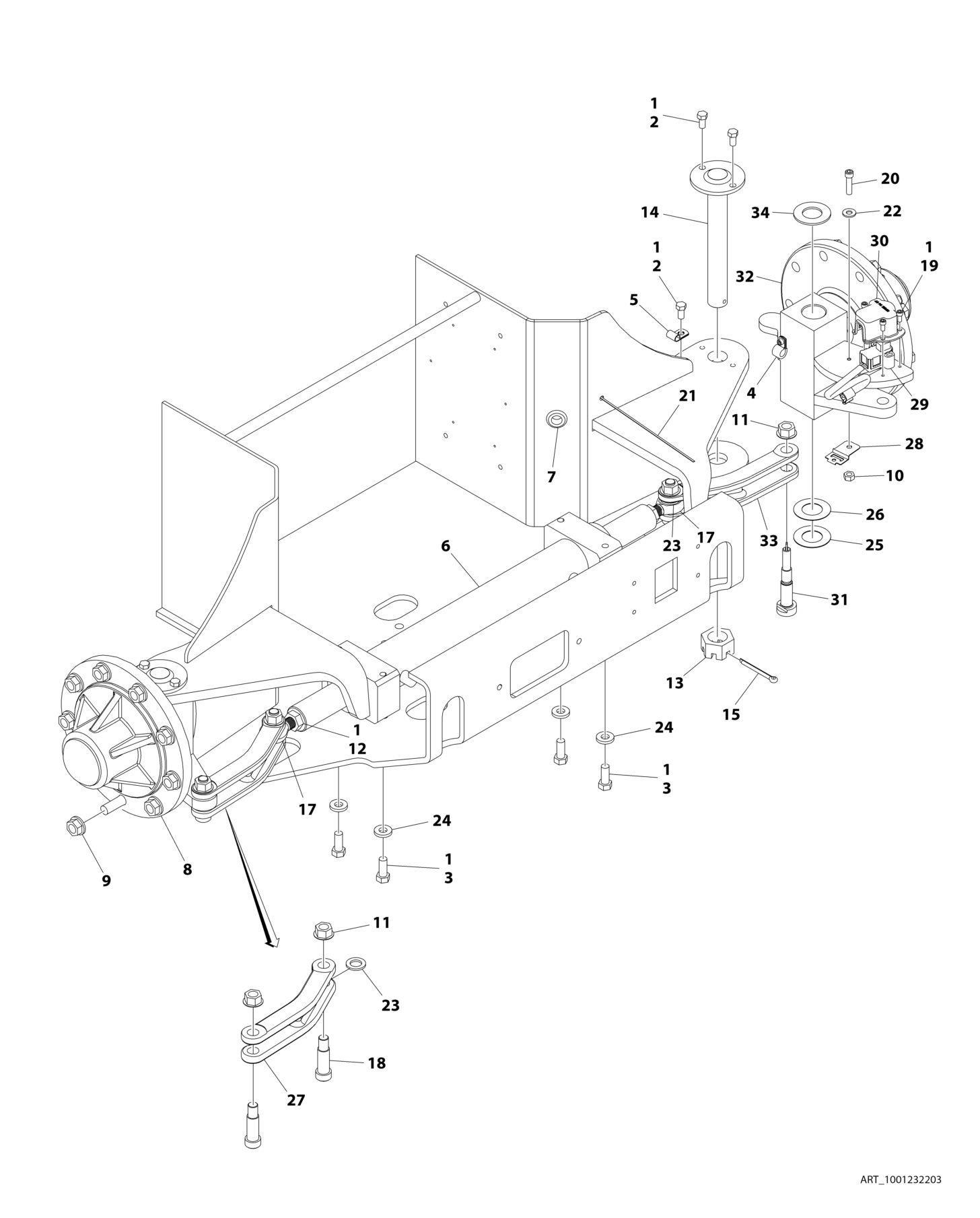

FIGURE 1 2. STEERING INSTALLATION (USA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001232203 Ref STEERING INSTALLATION 1 0100011 AR Compound, Locking 2 0641606 5 Bolt 3/8 X 3/4 3 0681810 4 Bolt 1/2 X 1-1/4 Grade 8 4 1320041 1 Clamp 5 1320263 1 Clamp, Cable 6 1683591 1 Steer Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 7 2540038 1 Grommet 8 2780241 1 Hub - Spindle Assembly - RH (See Separate Breakdown in this Section) 9 3300426 18 Nut 5/8 10 3311405 1 Nut 1/4 11 3312008 4 Nut 5/8 12 3322202 2 Nut 13 3323003 2 Nut 1-1/4 14 3422692 2 Kingpin 15 3450810 2 Pin, Cotter 17 3841517 2 End, Tie-Rod 18 3900109 3 Screw, Shoulder 19 3931408 4 Capscrew 1/4 X 1/2 20 3931416 1 Capscrew 1/4 x 1 21 4240175 1 Tie-Strap 22 4711400 1 Washer 1/4 23 4740156 2 Washer 24 4891800 4 Washer 1/2 25 1001151395 1 Shim 18Ga 26 1001151428 1 Shim 20Ga 27 1001153021 1 Link 28 1001153749 1 Clip, Connector 29 1001161117 1 Switch, Angle Sensor 29 4460536 1 Receptacle, Female - 3 Position 29 4460464 3 Pin, Male 30 1001169423 1 Cover 31 1001180835 1 Pin 32 1001180839 1 Hub - Spindle Assembly - LH (See Separate Breakdown in this Section) 33 1001180841 1 Link 34 1001193047 2 Bearing, Thrust
