FIGURE 7 35. SKYEYE EMITTER HARNESS

from JLG E300AJ E300AJP PVC 2001 2007 Parts Manual (31215002)_english

FIGURE 10 1. SPECIAL OPTIONS

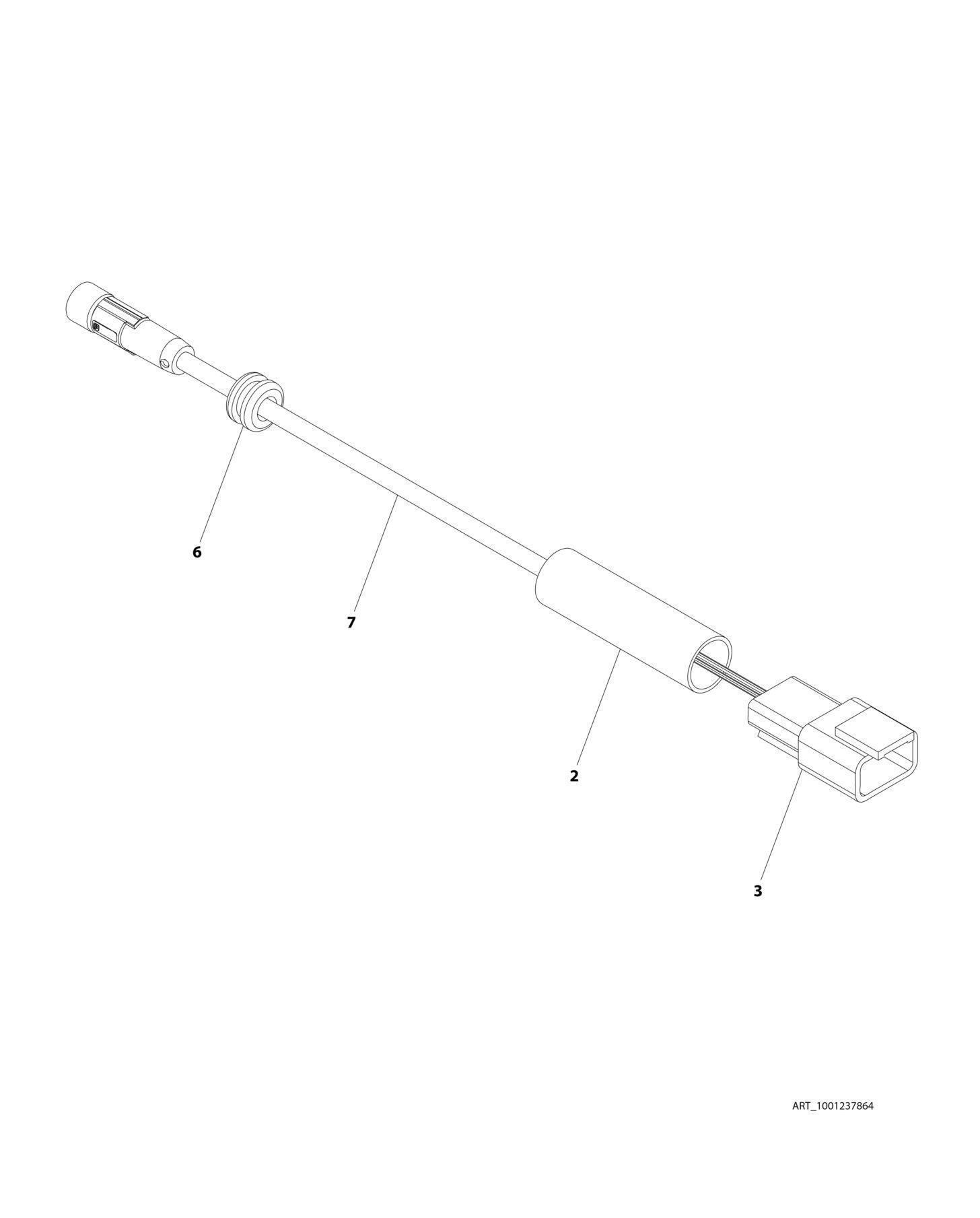

FIGURE 7-35. SKYEYE EMITTER HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001237864 Ref SKYEYE EMITTER HARNESS 2 2820247 AR Tubing, Heat Shrink 3 4460910 1 Connector - 3 Position 3 1001119620 3 Pin, Male 6 1001227996 1 Grommet 7 1001258495 1 Cable, M8 Female Cordset
