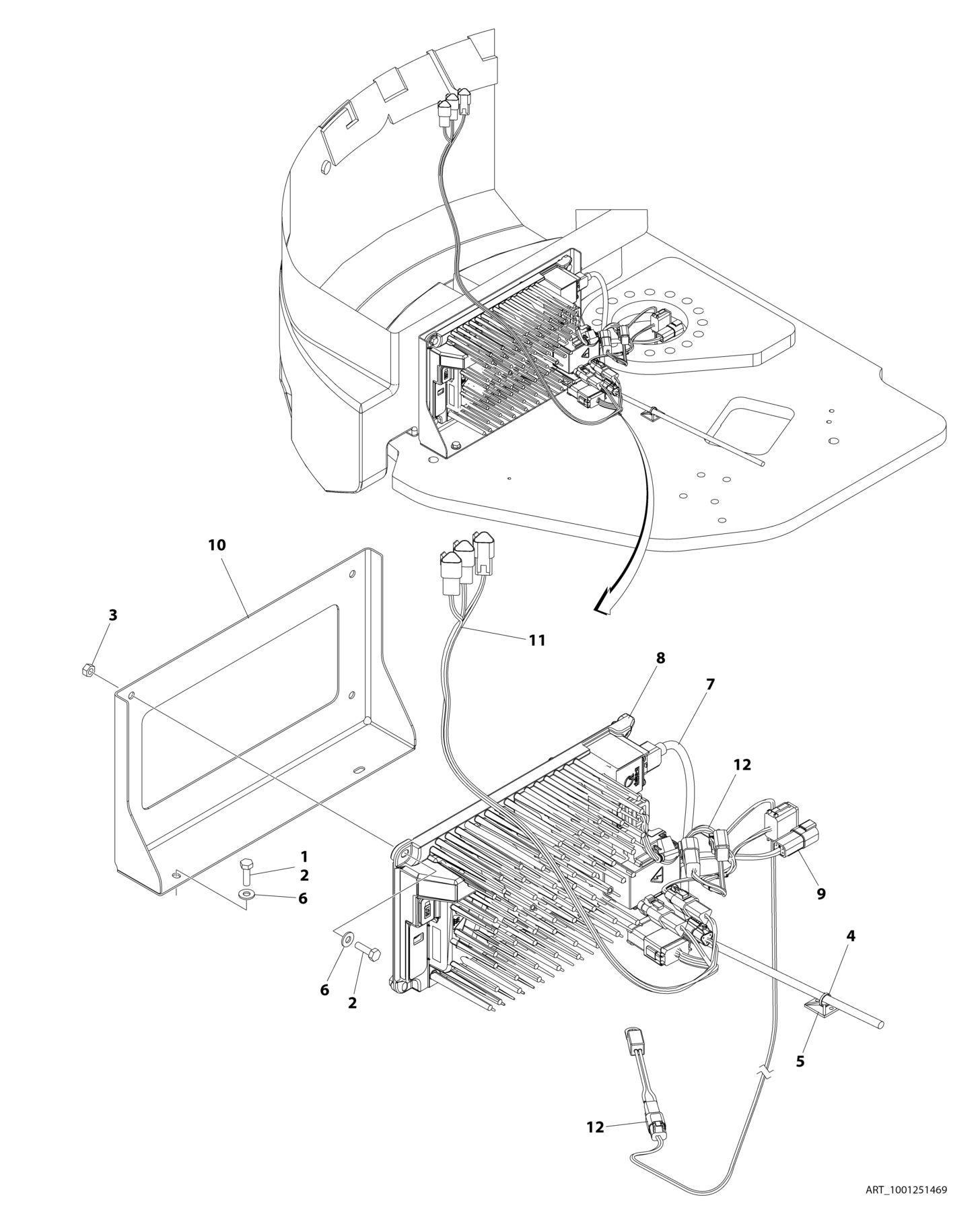

FIGURE 2 25. BATTERY CHARGER INSTALLATION WITHOUT PLUG (PVC 2007
ITEM PART NUMBER QTY
DESCRIPTION
1001251469 Ref BATTERY CHARGER INSTALLATION - WITHOUT PLUG 1 0100011 AR Compound, Locking 2 0641407 6 Bolt 1/4 x 7/8 3 3311401 4 Nut 1/4 4 4240032 AR Tie-Strap 5 4460234 AR Mount, Cable 6 4711400 6 Washer 1/4 7 1001207974 1 Cable, Charger AC Input 8 1001251382 1 Charger, 48V 9 1001260408 1 Harness, Charger DC Connection 10 1001260438 1 Bracket, Charger Mount 11 1001260532 1 Harness, Eboom Can Splice 12 1001260537 1 Harness, Charger 48V DC (See Separate Breakdown in ELECTRICAL Section)
