FIGURE 2 23. BATTERY CHARGER INSTALLATION WITH PLUG (CE SPECS) (PVC 2007

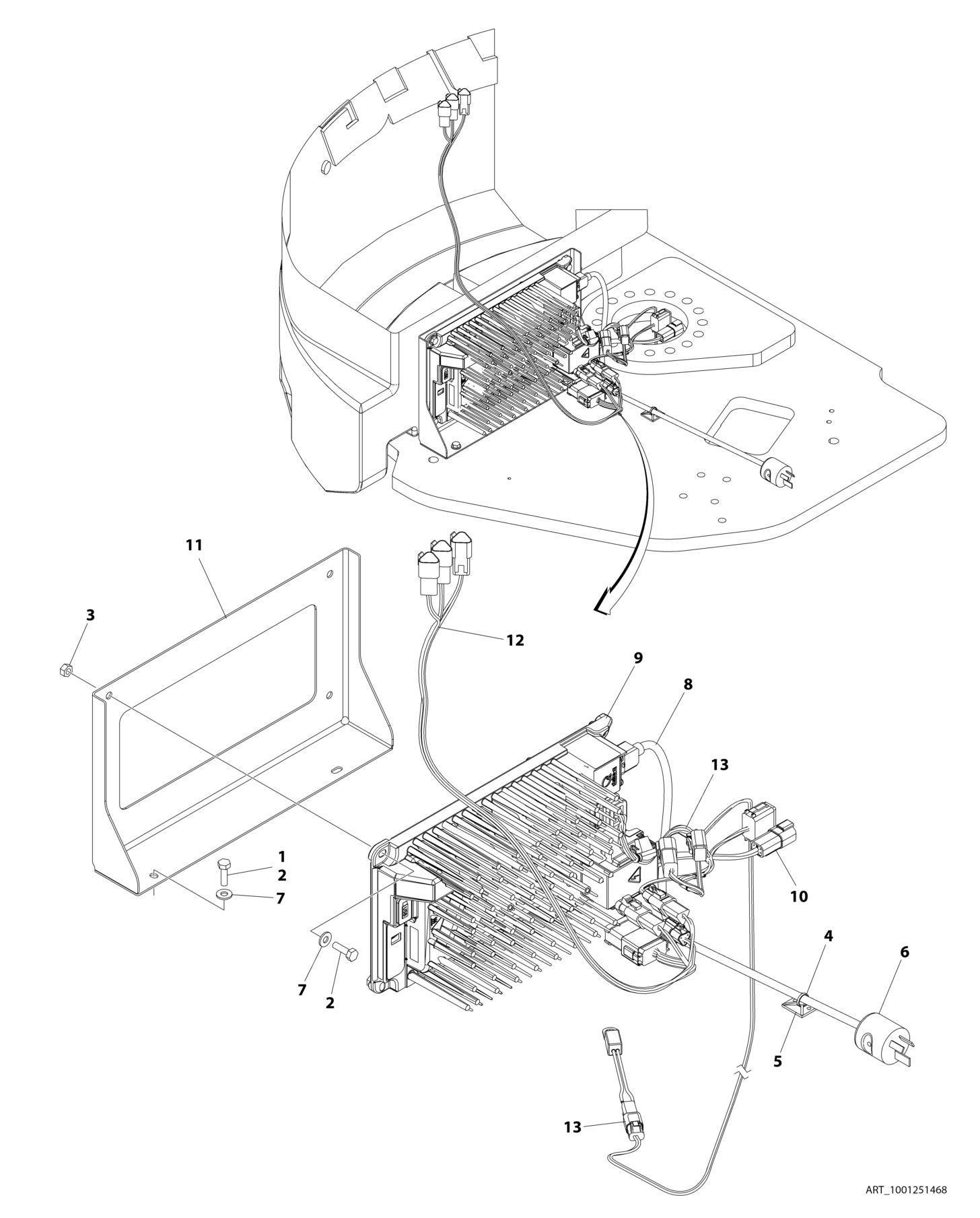

FIGURE 2-23. BATTERY CHARGER INSTALLATION - WITH PLUG (CE SPECS) (PVC 2007)

FIGURE 2-23. BATTERY CHARGER INSTALLATION - WITH PLUG (CE SPECS) (PVC 2007)

ITEM PART NUMBER QTY

DESCRIPTION

1001251468 Ref BATTERY CHARGER INSTALLATION - WITH PLUG 1 0100011 AR Compound, Locking 2 0641407 6 Bolt 1/4 x 7/8 3 3311401 4 Nut 1/4 4 4240032 AR Tie-Strap 5 4460234 AR Mount, Cable 6 4460805 1 Plug 7 4711400 6 Washer 1/4 8 1001207974 1 Cable, Charger AC Input 9 1001251382 1 Charger, 48V 10 1001260408 1 Harness, Charger DC Connection 11 1001260438 1 Bracket, Charger Mount 12 1001260532 1 Harness, Eboom CAN Splice 13 1001260537 1 Harness, Charger 48V DC (See Separate Breakdown in ELECTRICAL Section)

REV

A
