FIGURE 6 12. HYDRAULIC DIAGRAM TELESCOPE (MAIN BOOM

FIGURE 6-12. HYDRAULIC DIAGRAM - TELESCOPE (MAIN BOOM)

ITEM PART NUMBER QTY

DESCRIPTION

2791499 Ref HYDRAULIC DIAGRAM - TELESCOPE (MAIN BOOM) 1 2220773 2 Fitting, 90 2 2220507 2 Fitting, 90 4 2220372 2 Fitting 6 2750910 2 Hose 0100020 AR Sealant, Thread

REV

C

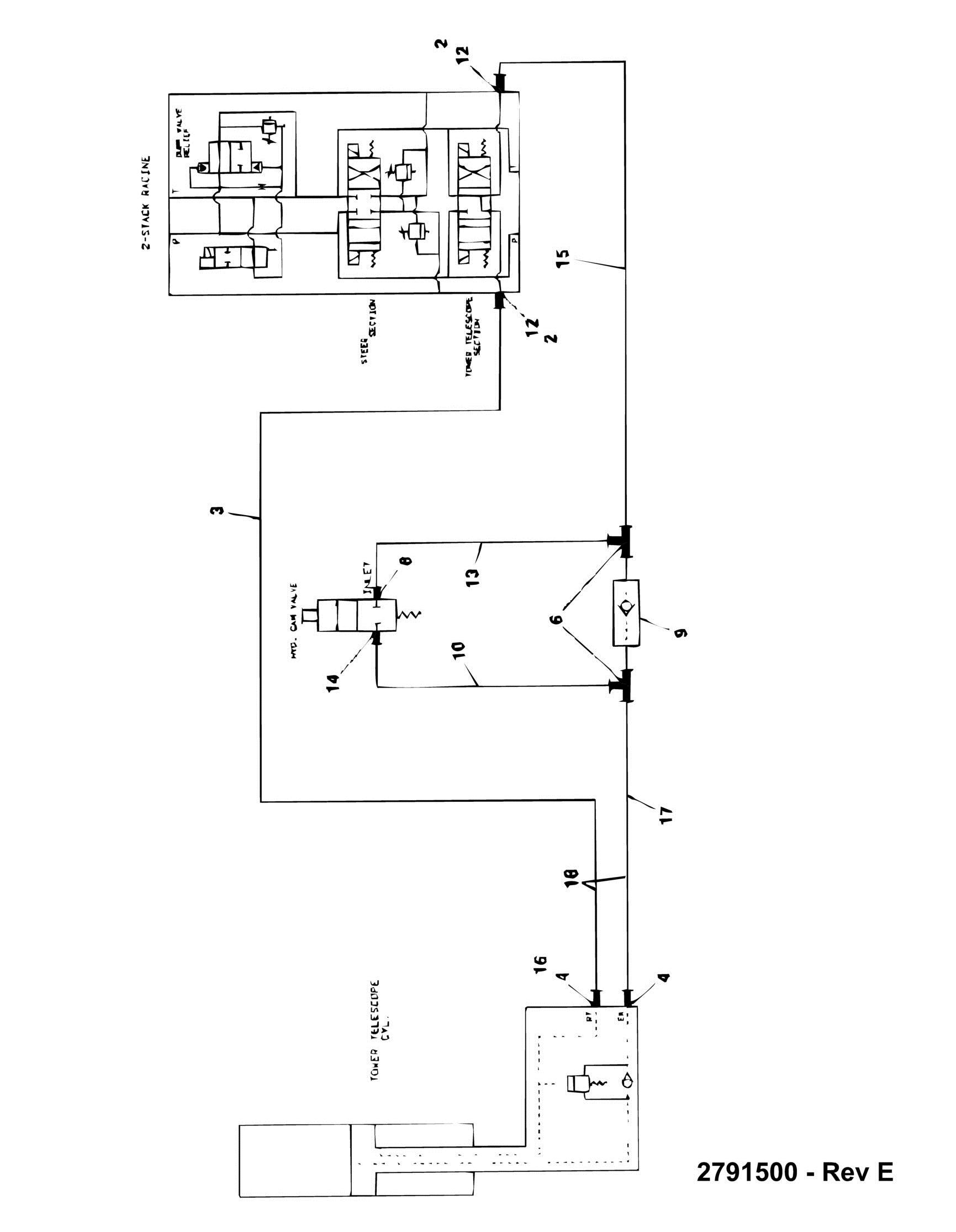

FIGURE 6-13. HYDRAULIC DIAGRAM - TELESCOPE (TOWER BOOM)
