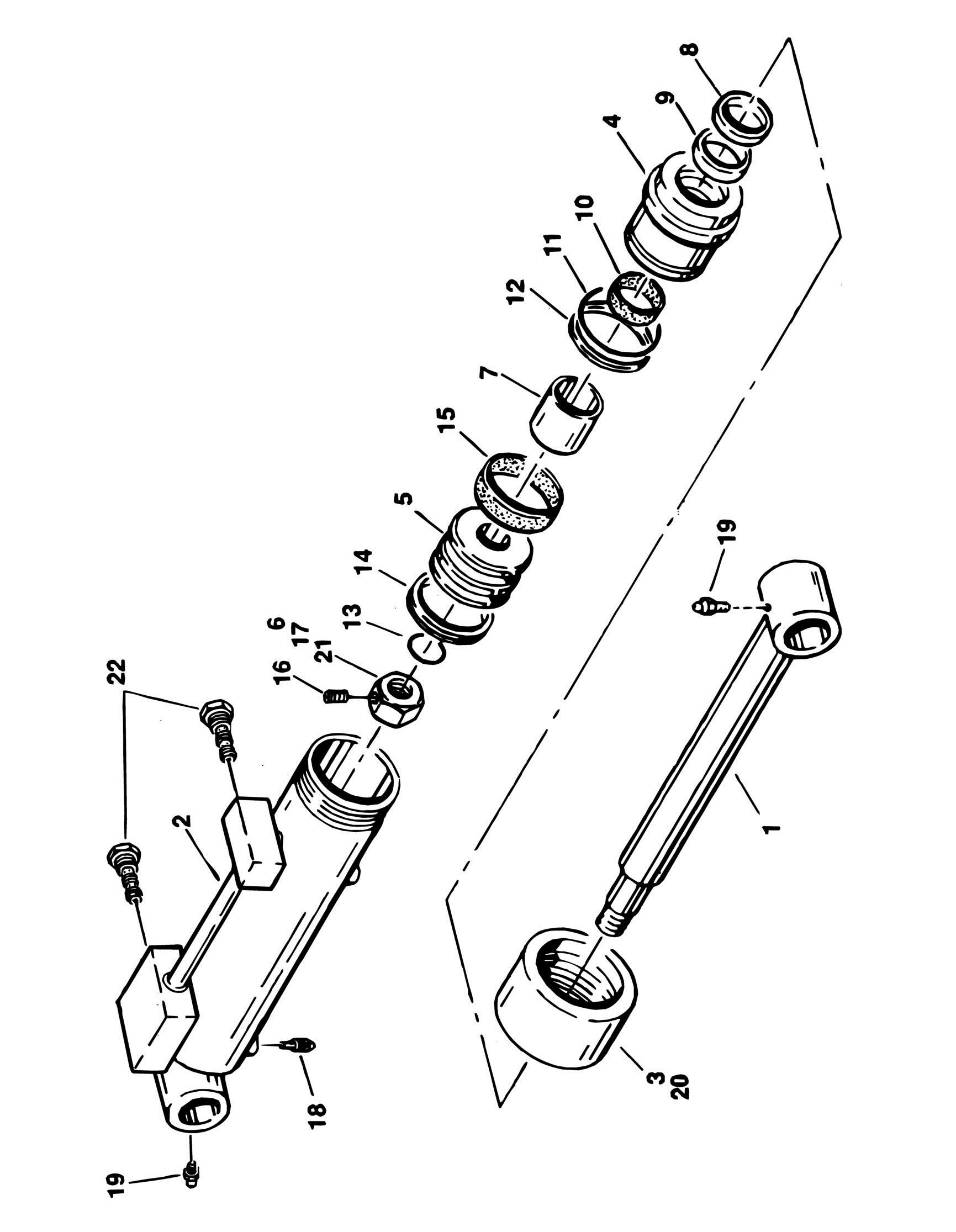

FIGURE 5-6. AXLE LOCKOUT CYLINDER ASSEMBLIES - 4WD/4WS (SEPTEMBER 1992 TO PRESENT) (USE WITH OPTIONAL OSCILLATING AXLE

FIGURE 5-6. AXLE LOCKOUT CYLINDER ASSEMBLIES - 4WD/4WS (SEPTEMBER 1992 TO PRESENT) (USE WITH OPTIONAL OSCILLATING AXLE)

FIGURE 5-6. AXLE LOCKOUT CYLINDER ASSEMBLIES - 4WD/4WS (SEPTEMBER 1992 TO PRESENT) (USE WITH OPTIONAL OSCILLATING AXLE)

ITEM PART NUMBER QTY DESCRIPTION

1682757

AXLE LOCKOUT CYLINDER ASSEMBLIES - 4WD/4WS (SEPTEMBER 1992 TO PRESENT)

1 1681787 1 Rod 2 1682758 1 Barrel 3 1120179 1 Retainer 4 1680892 1 Head 5 3480120 1 Piston 6 3300187 1 Nut (Prior to April 1992) 6 3300273 1 Nut, Hex (April 1992 to Present) 7 4563647 1 Tube, Spacer 8 Kit 1 Seal, Wiper 9 Kit 1 Seal, Rod 10 Kit 1 Ring, Wear 11 Kit 1 O-Ring 12 Kit 2 Ring, Back-up 13 Kit 1 O-Ring 14 Kit 1 Seal, Piston 15 Kit 1 Ring, Wear 16 3900141 2 Setscrew 1/4in-20NC x 3/8in (Prior to April 1992) 16 3900170 1 Setscrew 3/8in-16NC x 3/8in (April 1992 to Present) 17 0100011 AR Loctite #242 18 3900175 2 Setscrew 1/4in-28NF x 3/4in 18 3960416 2 Seal, Thread 18 3321401 2 Nut 1/4in-28NF Ref Note: Replace existing bleeders with these components when

ordering parts.

19 2160002 2 Fitting, Grease 20 0100035 AR Compound, Locking 21 0100038 AR Primer, Locking 22 4640509 2 Valve, Holding 22 2900792 2 Seal Kit - 4640509 Valve 2900381 1 Seal Kit (Includes Items 8-15)

REV

A
