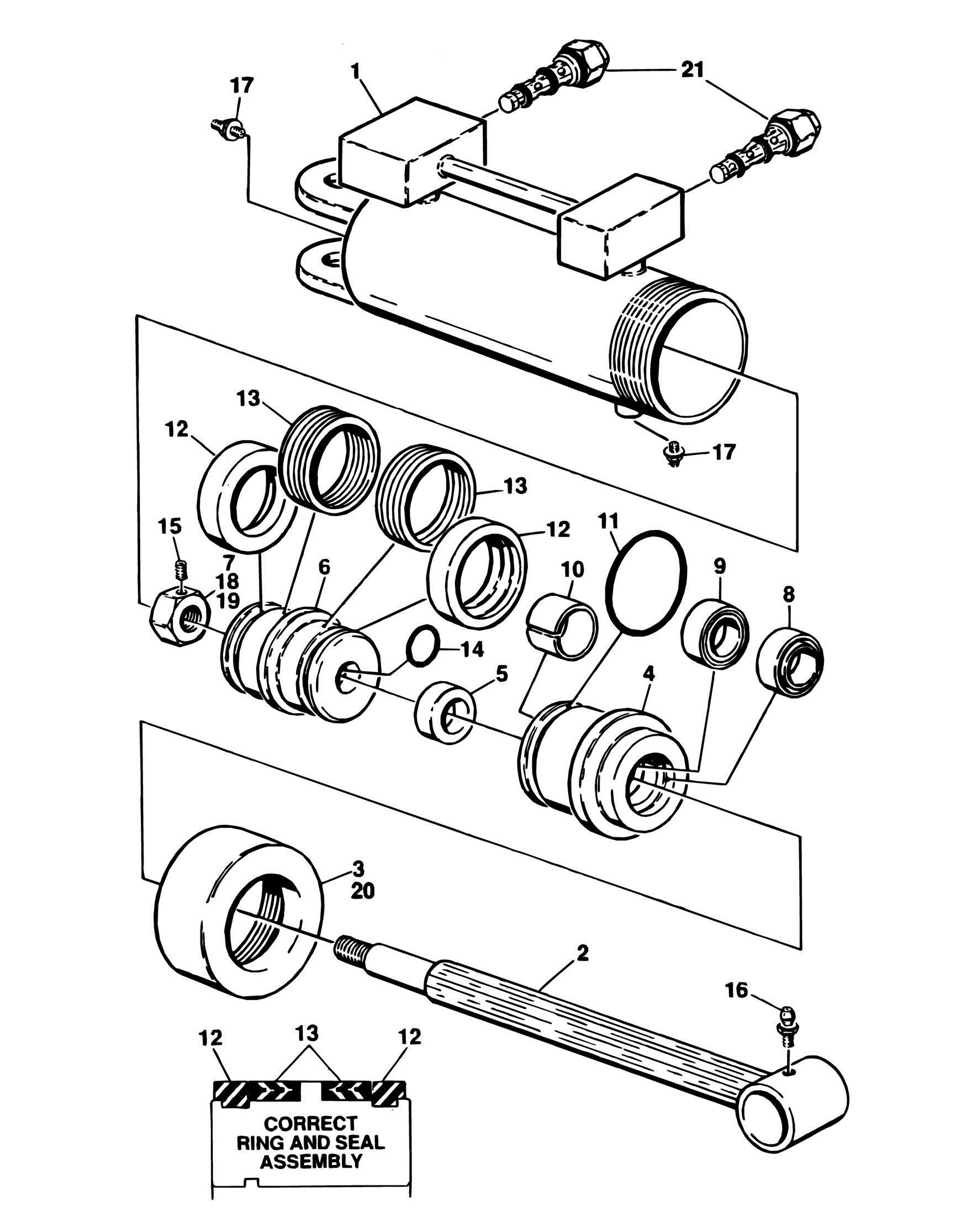

FIGURE 5-2. AXLE LOCKOUT CYLINDER ASSEMBLIES - 2WD (SEPTEMBER 1992 TO PRESENT) (USE WITH OPTIONAL OSCILLATING AXLE

FIGURE 5-2. AXLE LOCKOUT CYLINDER ASSEMBLIES - 2WD (SEPTEMBER 1992 TO PRESENT) (USE WITH OPTIONAL OSCILLATING AXLE)

FIGURE 5-2. AXLE LOCKOUT CYLINDER ASSEMBLIES - 2WD (SEPTEMBER 1992 TO PRESENT) (USE WITH OPTIONAL OSCILLATING AXLE)

ITEM PART NUMBER QTY DESCRIPTION REV

1682724 Ref AXLE LOCKOUT CYLINDER ASSEMBLY (STANDARD PARTS) C 1 1682725 1 Barrel Assembly 2 1681462 1 Rod 3 1120108 1 Retainer 4 1681322 1 Head 5 4562859 1 Spacer 6 3480116 1 Piston 7 3300273 1 Nut, Hex 8 Kit 1 Seal, Wiper 9 Kit 1 Seal, Rod 10 Kit 1 Ring, Wear 11 Kit 1 O-Ring 12 Kit 2 Ring, Lock 13 Kit 2 Seal, Piston 14 Kit 1 O-Ring 15 3900170 1 Setscrew 3/8in-16NC x 3/8in 16 2160003 1 Fitting, Grease - 45 16 2160002 1 Fitting, Grease - 45 17 3900175 3 Setscrew 1/4in-28NF x 3/4in 17 3960416 3 Seal, Thread 17 3321401 3 Nut 1/4in-28NF 18 0100011 AR Loctite #242 19 0100038 AR Primer, Locking 20 0100035 AR Loctite #222 21 4640509 2 Valve, Cartridge (Counterbalance) 21 2900792 2 Seal Kit - 4640509 Valve (1 Per Cartridge) 2900379 1 Seal Kit - Lockout Cylinder (Includes Items 8-14)
