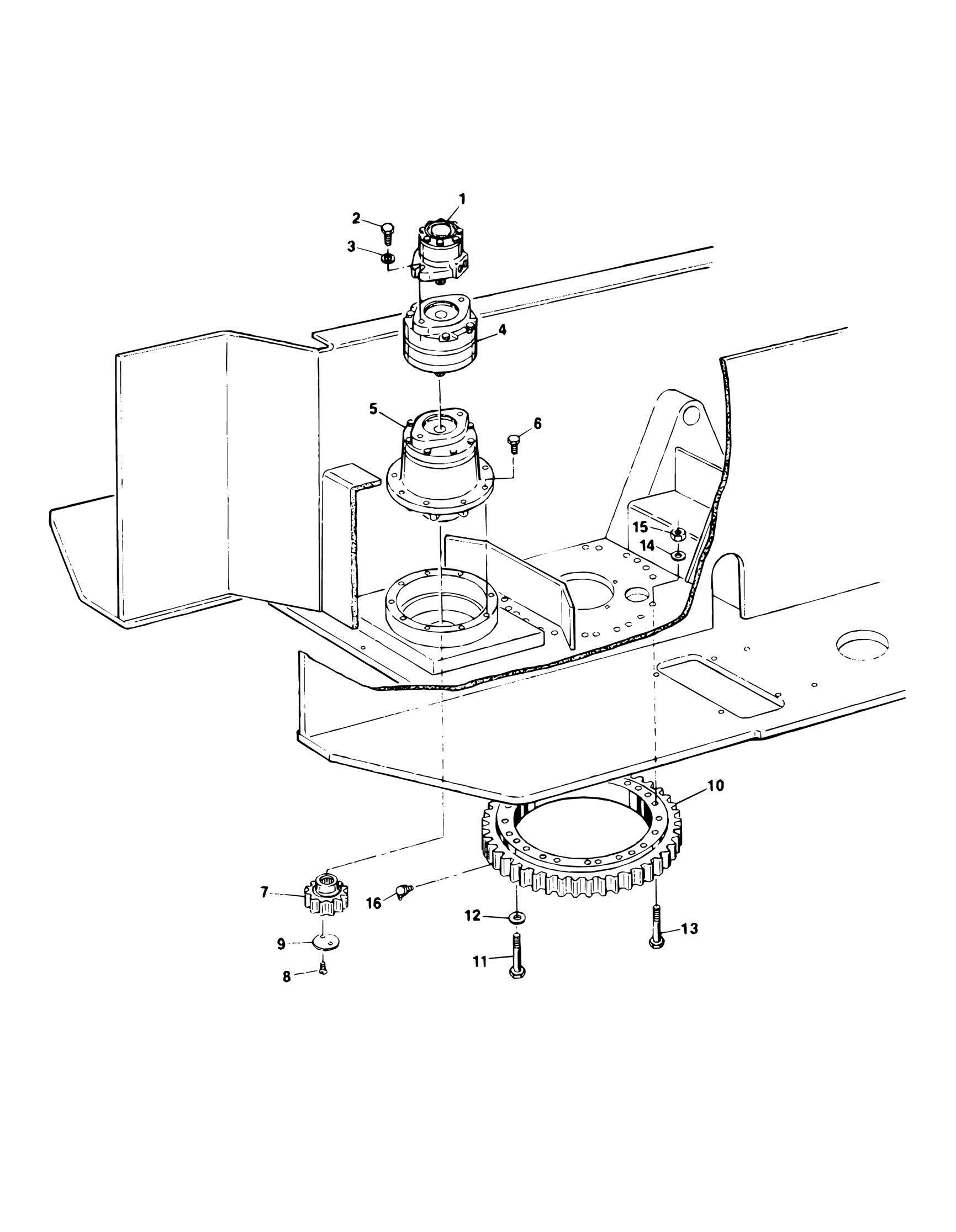

FIGURE 2-8. TURNTABLE, SWING DRIVE AND BEARING INSTALLATIONS

FIGURE 2-8. TURNTABLE, SWING DRIVE AND BEARING INSTALLATIONS

FIGURE 2-8. TURNTABLE, SWING DRIVE AND BEARING INSTALLATIONS

ITEM PART NUMBER QTY

DESCRIPTION

0250315 Ref SWING DRIVE INSTALLATION 1 3160156 1 Swing Motor Assembly (Prior to August 1991) (See SWING MOTOR ASSEMBLY for Breakdown) 1 3160181 1 Swing Motor Assembly (August 1991 to Present) (See SWING MOTOR ASSEMBLY for Breakdown) Ref Note: When replacing complete motor recommend using p/n

3160181 motor.

2 0681836 2 Bolt 1/2in-13NC x 4 1/2in (Grade 8) 3 4740171 2 Washer, Hardened 3 0100009 AR Sealant 4 0920068 1 Swing Brake Assembly (Prior to August 1991) (See BRAKE ASSEMBLY for Breakdown) 4 0920086 1 Swing Brake Assembly (August 1991 to Present) (See BRAKE ASSEMBLY - AUSCO 37845 for Breakdown) 5 2780055 1 Swing Hub Assembly (See SWING HUB ASSEMBLY for Breakdown) 6 0641912 9 Bolt 9/16in-12NC x 1 1/2in 6 0100019 AR Loctite #271 7 2440022 1 Gear, Pinion (0239488 Installation) 7 2440059 1 Gear, Pinion (0250315 Installation) 8 0741606 2 Screw, Flat Head 3/8in-16NC x 3/4in 9 3501916 1 Plate, Retaining (0239488 Installation) 9 4740367 1 Plate, Retaining (0250315 Installation) 9 0100019 AR Loctite 0239725 Ref TURNTABLE BEARING INSTALLAITON 10 2915092 1 Bearing Kit (was p/n 0440055) (Kit Includes Bearing and Mounting Hardware) 11 0681820 24 Bolt 1/2in-13NC x 2 1/2in (Grade 8) 12 4740003 24 Washer, Hardened 13 0682032 20 Bolt 5/8in-11NC x 4in (Grade 8) 13 0682028 3 Bolt 5/8in-11NC x 3 1/2in (Grade 8) 14 4740004 16 Washer, Hardened 14 4740048 7 Washer, Special 15 3300183 23 Nut 5/8in-11NC (Grade 8) 15 0100019 AR Loctite #271 15 0100004 AR Devcon 16 2160001 1 Fitting, Grease Ref TURNTABLE WELDMENTS 4620047 1 Turntable (Prior to February 1993) 4620091 1 Turntable (February 1993 to Present with Noise Reduction Package)

REV

D

E
