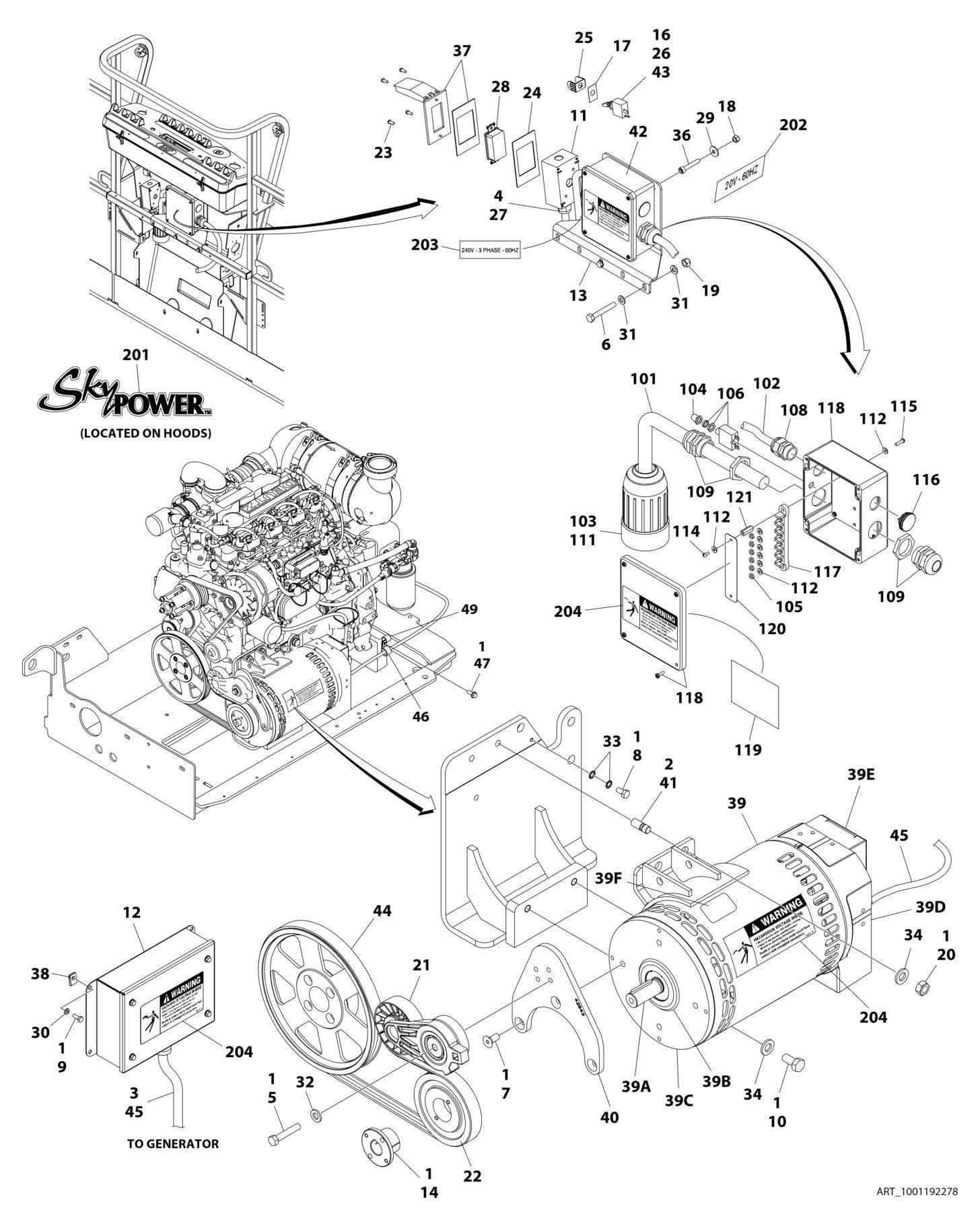

FIGURE 3-58. 7500W SKYPOWER GENERATOR INSTALLATION - 110V/60HZ (DEUTZ TD2.9L4 ENGINES) (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
1001192278 Ref 7500W SKYPOWER GENERATOR INSTALLATION 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0100048 AR Compound Terminal 4 0100079 AR Sealant 5 0641616 1 Bolt 3/8 x 2 6 0700819 2 Bolt M8 x 55 7 0741607 3 Screw 3/8 x 7/8 8 0760606 1 Bolt M6 x 12 9 0760608 4 Bolt M6 x 16 10 0761212 2 Bolt M12 x 25 11 0860038 1 Box, Receptacle 12 0861538 1 Control Box Assembly 12 7024488 1 Card, Circuit - Generator Power 12 See Note NSS Fuse (Note: Not Available - Purchase Locally) 12 7024489 1 Card, Circuit - Control 12 70000619 1 Harness, Control Box (Internal) Ref Note: Same Circuit Card (P/N 7024489) is used for both 60Hz and 50Hz. When replacing card, rocker switch on card must be set for required application. 13 0902888 1 Bracket 14 0962520 1 Bushing, Split 16 2820031 AR Heat Shrink 17 3252764 1 Nameplate - AC & Weld 18 3290505 4 Nut M5 19 3290805 2 Nut M8 20 3291201 2 Nut M12 21 3580317 1 Tensioner, Belt 22 3580318 1 Pulley 23 3910606 4 Screw #6 x 3/8 24 3960422 1 Gasket 25 4060802 1 Guard, Switch 26 4360336 1 Switch, Toggle 27 4460071 1 Connector, Strain Relief
REV
G
28 4460346 1 Receptacle 29 4811602 4 Washer M5 30 4811700 4 Washer M6 31 4811900 4 Washer M8 32 5241000 1 Washer M10 33 4871700 2 Washer M6 34 5241200 4 Washer M12 36 1001104029 1 Capscrew M5 x 30 Grade 12.9 37 1001110873 1 Cover 38 1001130220 4 Nut, Tinnerman M6 39 1001212223 1 Generator Assembly 39 70001100 1 Rotor (Includes p/n 70001384 & 70000863) (Not Shown) 39 70001384 1 Bearing, Ball Radial (Not Shown) 39 70000863 1 Fan (Not Shown)
ITEM PART NUMBER QTY DESCRIPTION
39 70006093 1 Stator (Not Shown) 39 70002297 1 Stud 39 70003631 1 Brushholder Assembly (Not Shown) (was p/n 7024484) 39A 70004099 1 Key 39B 70001966 1 Bearing, Ball Radial (Located in Belt Tensioner Endbell) 39B 70003708 1 Ring, Internal Retaining (Located in Belt Tensioner Endbell) 39B 70003709 1 Ring, External Retaining (Located in Belt Tensioner Endbell) 39C 70004092 1 Endbell, Belt Tensioner 39D 70004094 1 Endbell, Brush Block 39E 70006094 1 Shroud 39E 70002291 1 Insulator, Endbell 39E 7027799 1 Block, Connector - 6 Position (Not Shown) 39E 70002460 1 Nut, Brass (Attaches p/n 7027799 to Cover) (Not Shown) 39E 70006095 1 Breaker, Circuit 30Amp (Not Shown) 39E 70006096 1 Boot, Breaker (Not Shown) 39E 7026626 1 Connector, 6 Position (Includes Seal) (Not Shown - Plugs into Item 45) 39E 7026597 1 Connector with Leads (Not Shown) 39E 70004098 1 Clamp, Cable (Not Shown) 39E 70006097 1 Plate, End Panel 39E 70001974 1 Decal - Terminal Connections 39F 70001973 1 Decal - Warning Moving Parts 40 1001142643 1 Support 41 1001196382 2 Stud 42 1001157592 1 Junction Box Assembly (See Items 101-121 for Breakdown) 43 4922641 1 Generator Switch Harness 44 1001142646 1 Belt 45 4922925 1 Generator Harness (See Separate Breakdown in ELECTRICAL SECTION) 46 7274000040 1 Clamp 47 5251012 1 Bolt M10 x 25 49 1320061 1 Clamp 1001157592 Ref JUNCTION BOX ASSEMBLY 101 1060343 1.5 ft/ 0.5m Cable, Electrical 10/4
102 1001179154 2.5 ft/ 76cm Cable, Electrical 12/3
103 1671092 1 Cover, Connector 104 3300396 1 Cover, Fuse 105 3311001 6 Nut #10 106 4360070 1 Circuit Breaker - 15Amp 108 4460425 1 Connector, Strain Relief 109 4460426 2 Connector, Strain Relief 111 4460963 1 Connector 112 4711000 4 Washer #10 114 10702077 2 Screw #10 x 3/8 115 10702082 2 Screw #10 x 3/4 116 1001152525 1 Plug 117 1001157520 1 Block, Terminal 118 1001157521 1 Box, Junction 119 1001157528 1 Decal - Wiring Schematic 120 1001158007 1 Cover, PVC
REV
C
ITEM PART NUMBER QTY
121 1001158008 1 Stand-Off 0272435 Ref DECAL INSTALLATION
DESCRIPTION
201 1705460 2 Decal - SkyPower 202 3251243 1 Decal - 120V-60Hz 203 1705375 1 Decal - 240V - 3 Phase - 60Hz 204 1705387 3 Decal - Hazardous Voltage
REV
D
