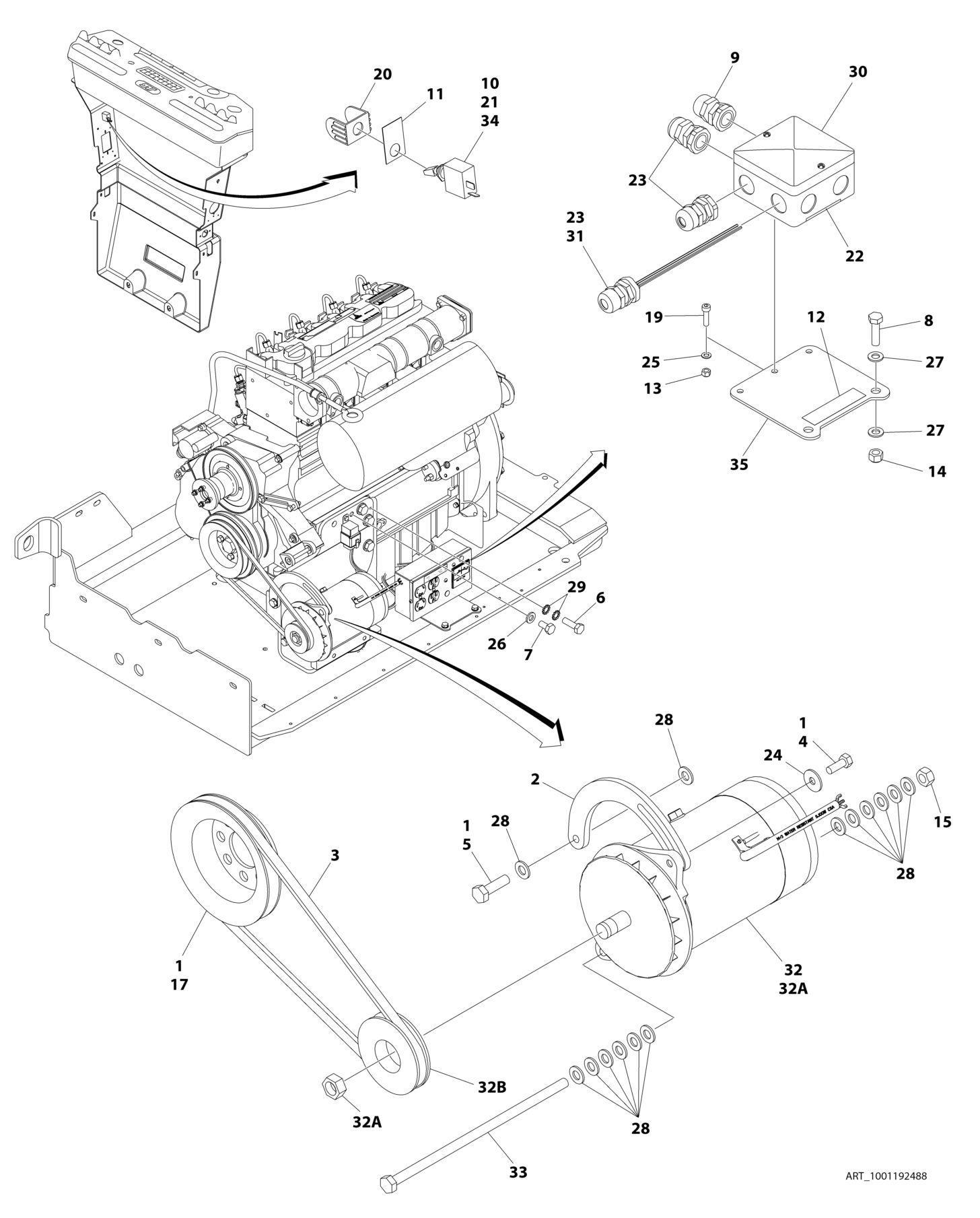

FIGURE 3-53. 2500W GENERATOR INSTALLATION - 220V/50HZ (DEUTZ D2011 ENGINES) (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
1001192488 Ref 2500W GENERATOR INSTALLATION 1 0100011 AR Compound, Locking 2 1001239716 1 Arm, Adjusting 3 0480124 1 Belt, Generator 4 0641508 1 Bolt 5/16 x 1 5 0761012 1 Bolt M10 x 25 6 0700610 1 Bolt M6 x 20 7 0760606 1 Bolt M6 x 12 8 0760814 2 Bolt M8 x 30 9 0962449 1 Bushing 10 2820031 AR Heat Shrink 11 3251102 1 Nameplate - Generator On/Off 12 3252507 1 Decal - 220 Volt 13 3290505 1 Nut M5 14 3290805 2 Nut M8 15 3291007 1 Nut M10 17 3580158 1 Pulley 19 4031608 1 Capscrew M5 x 20 20 4060802 1 Guard, Switch 21 4360336 1 Switch, Toggle 22 4420060 1 Tape 23 4460968 3 Connector, Strain Relief 24 4811902 1 Washer M8 25 4811600 1 Washer M5 26 4811700 1 Washer M6 27 4811900 4 Washer M8 28 4812000 14 Washer M10 29 4871700 2 Washer M6 30 1001099869 1 Box, Junction 31 1001100234 1 Lamp, Red 32 1001100321 1 Generator Assembly 32A Ref Note: Replacement Generators come standard with p/n 3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below. 32A 70000123 1 Armature with Slip Rings 32A 7012513 4 Cap, Brush Holder 32A 7020108 4 Brush 32A 7020109 4 Holder, Brush 32A 7012514 1 Fan 32A 7020110 1 Bell, Front 32A 7020111 1 Bell, Rear 32A 7020190 2 Bearing 32B 3580134 1 Pulley 32B 7027887 1 Key, Woodruff 33 1001119280 1 Bolt M10 x 260 34 4922641 1 Generator Switch Harness 35 1001193167 1 Plate 36 1001194114 1 Generator Harness - 2500W (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION)
