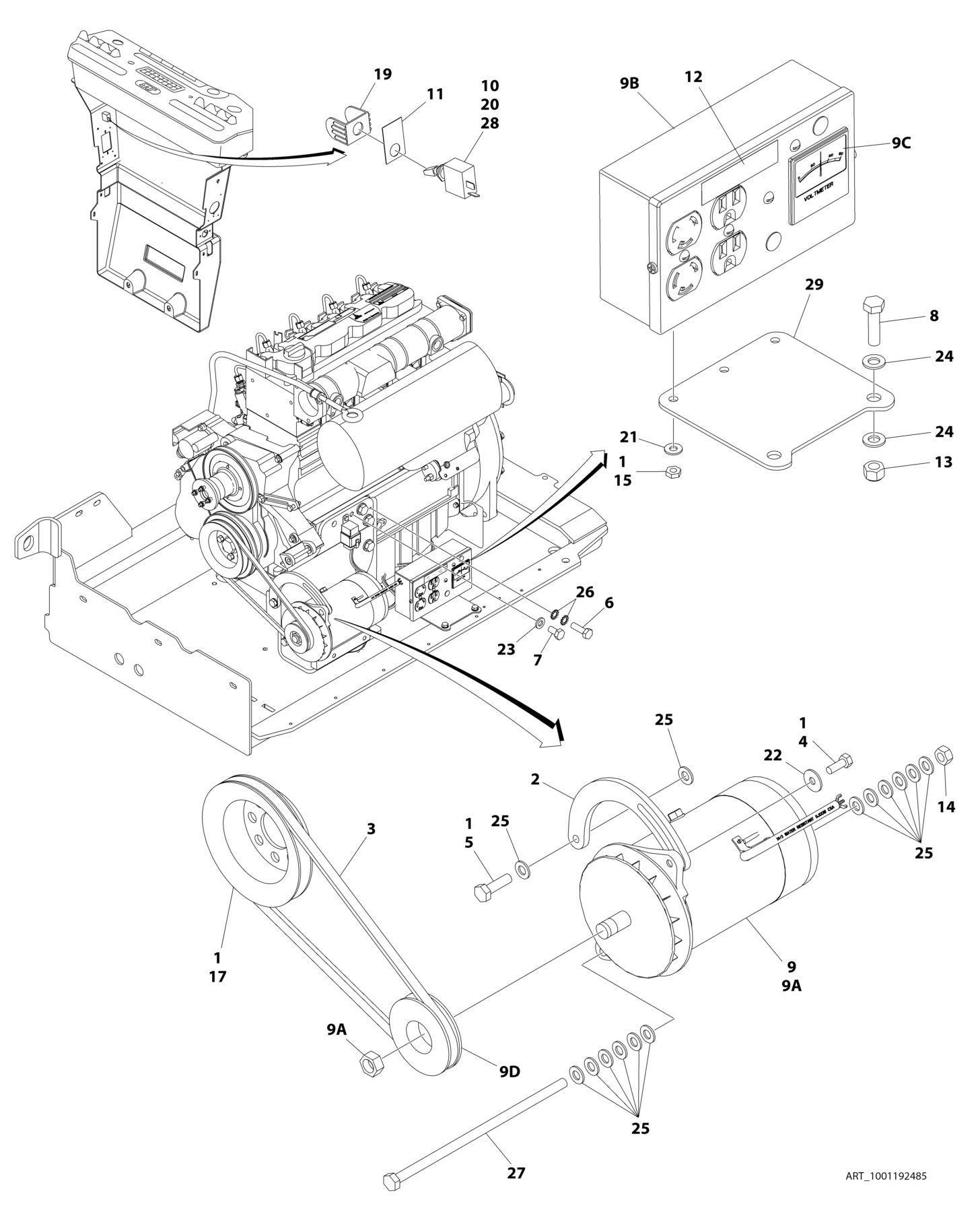

FIGURE 3-50. 2500W GENERATOR INSTALLATION - 110V/60HZ (DEUTZ D2011 ENGINES) (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
1001192485 Ref 2500W GENERATOR INSTALLATION 1 0100011 AR Compound, Locking 2 1001239716 1 Arm, Adjusting 3 0480124 1 Belt 4 0641508 1 Bolt 5/16 x 1 5 0761012 1 Bolt M10 x 25 6 0700610 1 Bolt M6 x 20 7 0760606 1 Bolt M6 x 12 8 0760814 2 Bolt M8 x 30 9 2460055 1 Generator and Control Box Assembly 9A 7012558 1 Generator, Replacement 9A Ref Note: Replacement Generators come standard with p/n 3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below. 9A 7012513 4 Cap, Brush Holder 9A 7020108 4 Brush 9A 7020109 4 Holder, Brush 9A 7012514 1 Fan 9A 7020190 2 Bearing 9A 7020110 1 Bell, Front 9A 7020111 1 Bell, Rear 9B 7019680 1 Box, Control 9B 4360542 1 Breaker, Circuit 9B 4460190 AR Receptacle, Standard 9B 4460027 AR Receptacle, Twistlock 9C 2420203 1 Voltmeter 9D 3580276 1 Pulley 9D 7027887 1 Key, Woodruff 10 2820031 AR Heat Shrink 11 3251102 1 Nameplate - Generator On/Off 12 3251243 1 Decal - 120V-60Hz 13 3290805 2 Nut M8 14 3291007 1 Nut M10 15 3311001 2 Nut #10 17 3580158 1 Pulley 19 4060802 1 Guard, Switch 20 4360336 1 Switch, Toggle 21 4751000 1 Washer #10 22 4811902 1 Washer M8 23 4811700 1 Washer M6 24 4811900 4 Washer M8 25 4812000 14 Washer M10 26 4871700 2 Washer M6 27 1001119280 1 Bolt M10 x 260 28 4922641 1 Generator Switch Harness 29 1001193167 1 Plate, Mounting 30 1001194114 1 Generator Harness - 2500W (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION)
REV
F
