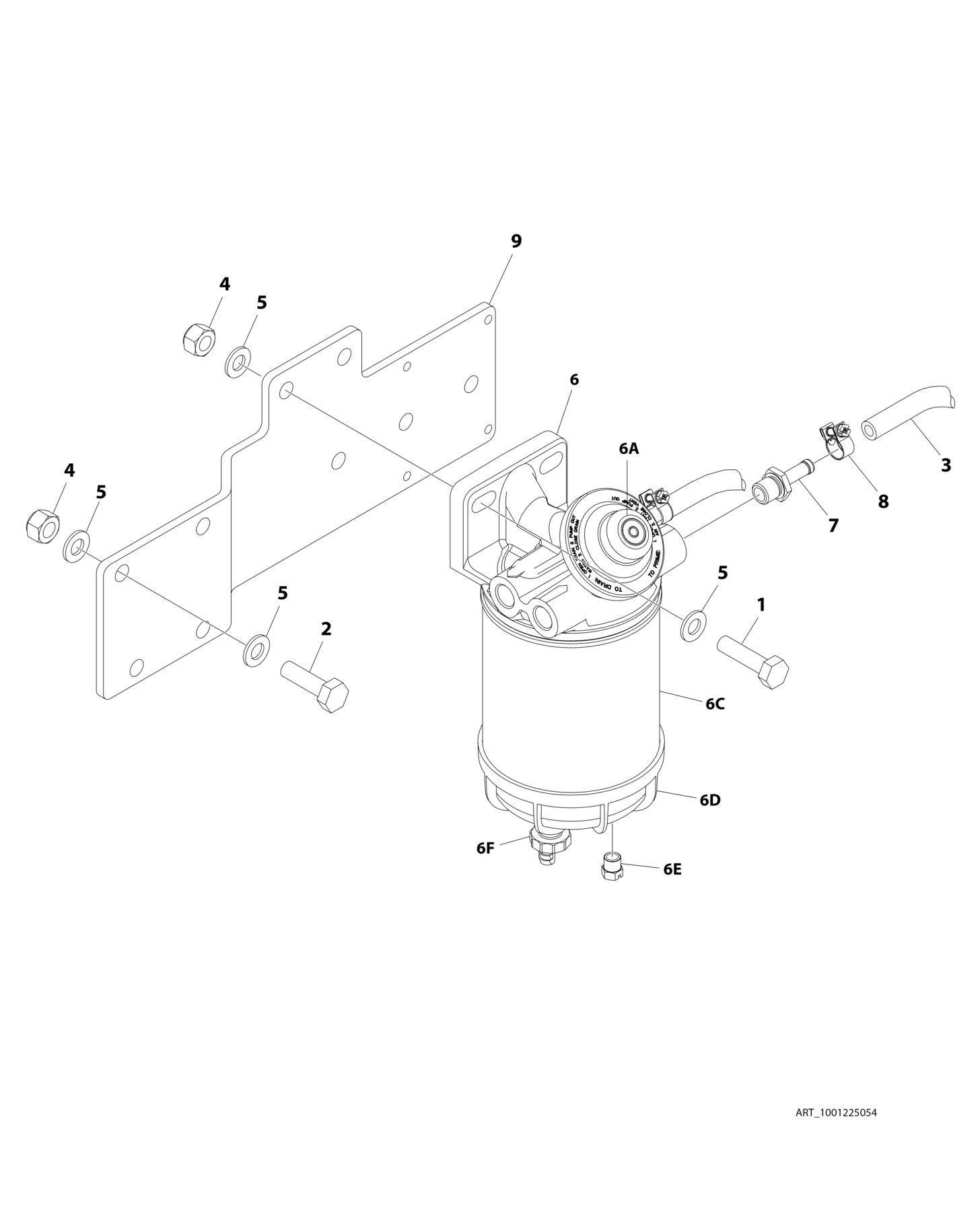

FIGURE 3-38. FUEL FILTER INSTALLATION (STEEL FUEL TANK) (DEUTZ D2011 ENGINES
ITEM PART NUMBER QTY
DESCRIPTION
1001225054 Ref FUEL FILTER INSTALLATION 1 0761016 2 Bolt M10 x 40 2 0761015 2 Bolt M10 x 35 2 1001228406 2 Bolt M10 x 35 3 2720058 32 in/ 80cm Hose, Fuel Line 4 3291005 4 Nut M10 5 4812000 AR Washer M10 6 1001149452 1 Fuel Filter/Water Separator Assembly 6A See Note NSS Indicator, Restriction (Note: Use p/n 1001149452) 6B 70004064 1 Bypass Valve Kit (Not Shown) 6C 70004065 1 Gasket, Head to Element 6C 70004066 1 Element, Filter 6D 70004067 1 Gasket, Element to Bowl 6D 70004068 1 Bowl Kit (Includes Bowl, Element and Plug) 6E 70004069 1 Plug 6F 70004070 1 Drain 7 1001149469 2 Fitting, Straight Barbed 8 1001174486 2 Clamp 9 1001224967 1 Bracket
