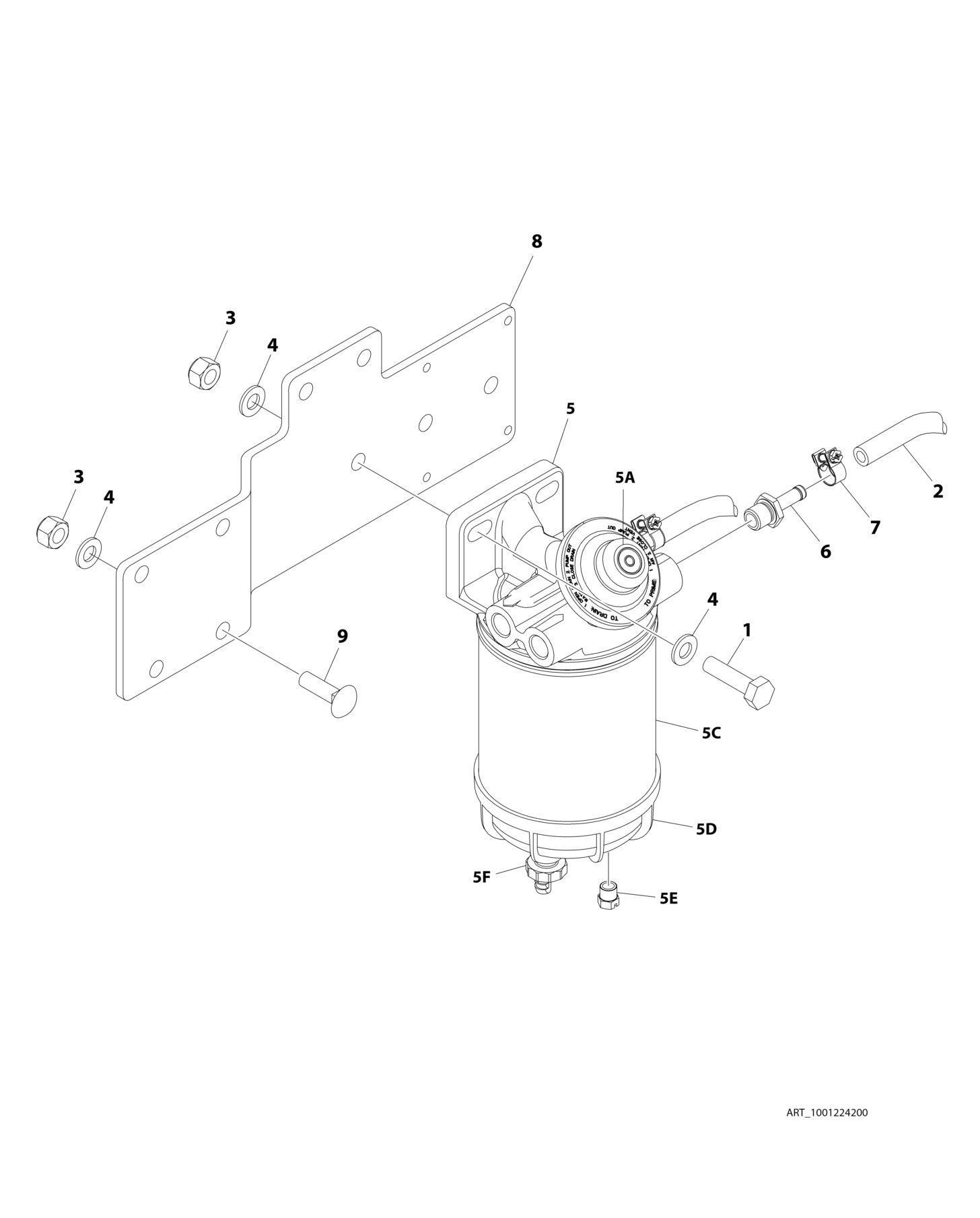

FIGURE 3-37. FUEL FILTER INSTALLATION (POLY FUEL TANK
ITEM PART NUMBER QTY
DESCRIPTION
1001224200 Ref FUEL FILTER INSTALLATION 1 0761016 2 Bolt M10 x 40 2 2720058 46 in/1.2m Hose, Fuel Line 3 3291005 4 Nut M10 4 4812000 6 Washer M10 5 1001149452 1 Fuel Filter/Water Separator Assembly 5A See Note NSS Indicator, Restriction (Note: Use p/n 1001149452) 5B 70004064 1 Bypass Valve Kit (Not Shown) 5C 70004065 1 Gasket, Head to Element 5C 70004066 1 Element, Filter 5D 70004067 1 Gasket Element to Bowl 5D 70004068 1 Bowl Kit (Includes Bowl, Element and Plug) 5E 70004069 1 Plug 5F 70004070 1 Drain 6 1001149469 2 Fitting, Straight Barbed 7 1001174486 2 Clamp 8 1001224967 1 Bracket 9 1001228406 2 Bolt M10 x 35
