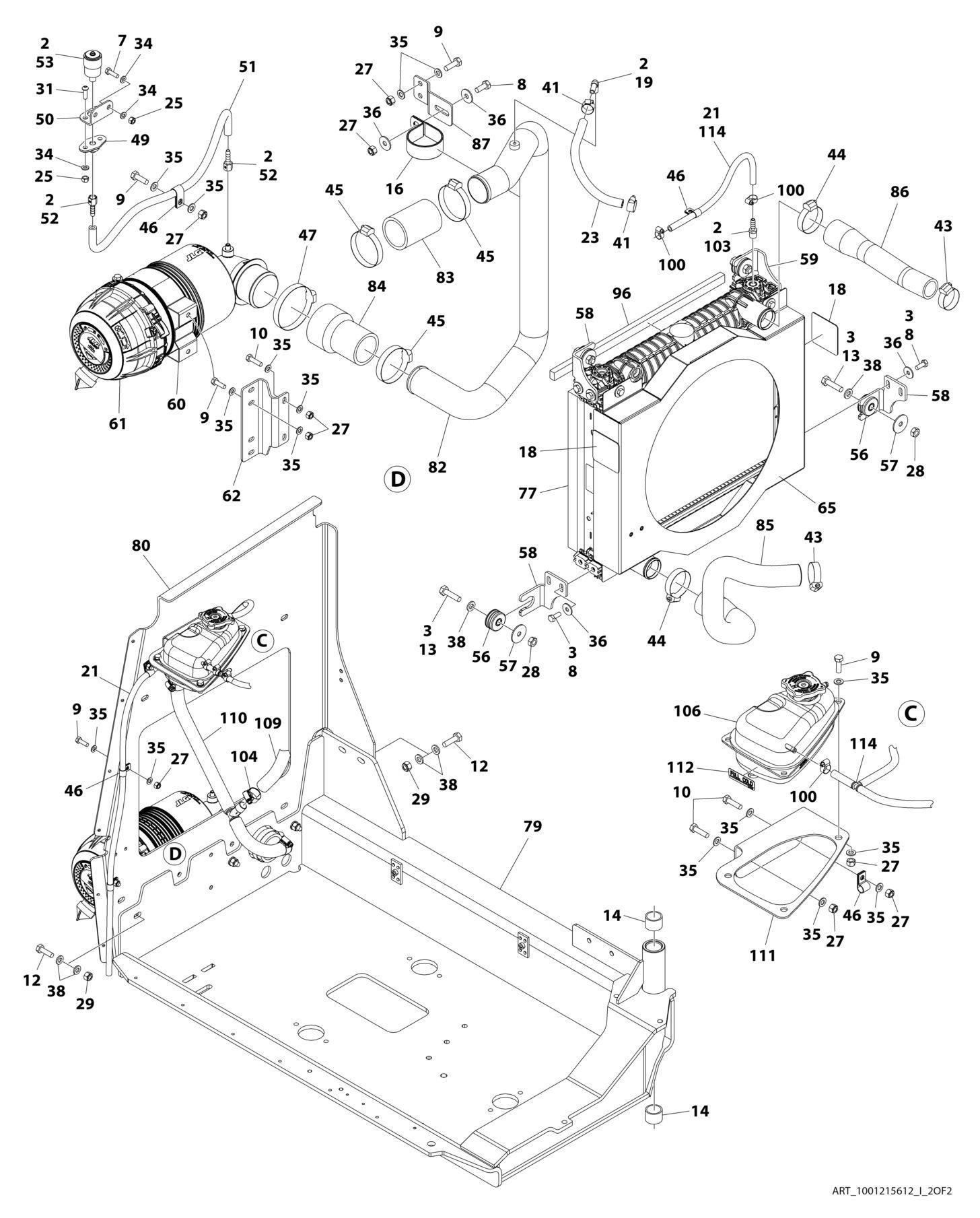

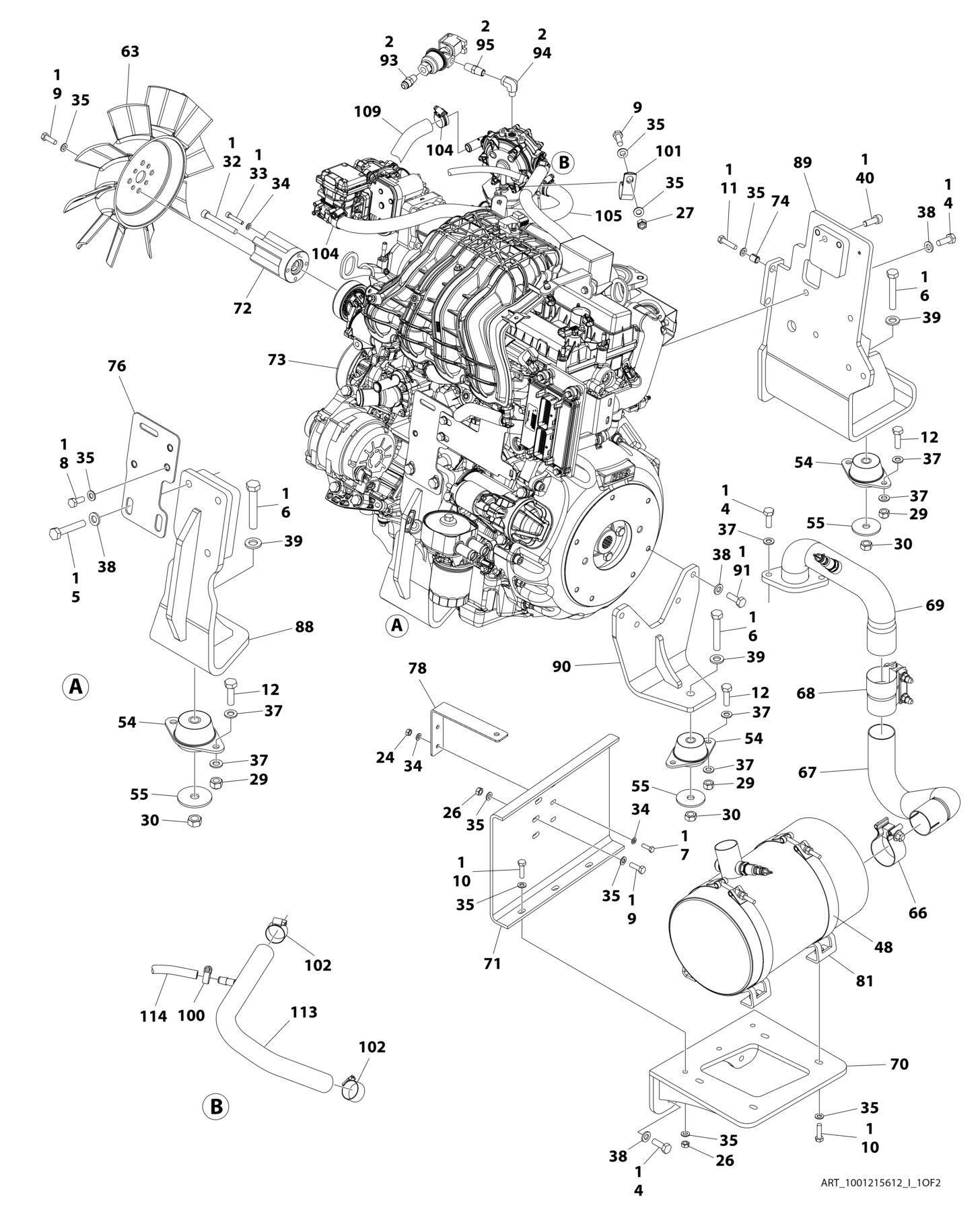

FIGURE 3-28. FORD ENGINE ASSEMBLY - WITHOUT ARCTIC PACKAGE (600S HC3/660SJ HC3
ITEM PART NUMBER QTY
DESCRIPTION
1001215612 Ref FORD ENGINE ASSEMBLY 1 0100011 AR Compound, Locking 2 0100020 AR Sealant 3 1001180620 AR Adhesive 4 0711014 10 Bolt M10 x 30 5 0711020 3 Bolt M10 x 60 6 0711223 3 Bolt M12 x 75 7 0760610 4 Bolt M6 x 20 8 0760810 11 Bolt M8 x 20 9 0760812 18 Bolt M8 x 25 10 0760814 11 Bolt M8 x 30 11 0760815 2 Bolt M8 x 35 12 0761015 11 Bolt M10 x 35 13 0761016 4 Bolt M10 x 40 14 0961951 2 Bushing 16 1320110 1 Clamp 18 1703162 2 Decal - Fan Blade 19 2180467 1 Fitting, Straight NPT/Barb 21 2720058 AR Hose, Fuel 23 1001165035 11 in/ 28cm Hose 24 3290601 2 Nut M6 25 3290605 4 Nut M6 26 3290801 5 Nut M8 27 3290805 17 Nut M8 28 3291001 4 Nut M10 29 3291005 11 Nut M10 30 3331211 3 Nut M12 31 3900364 2 Capscrew M6 x 20 32 3931648 1 Capscrew 3/8 x 3 33 4031711 1 Capscrew M6 x 35 34 4811700 14 Washer M6 35 4811900 54 Washer M8 36 4811902 10 Washer M8 37 4812000 14 Washer M10 38 5241000 29 Washer M10 39 5241200 3 Washer M12 40 5272010 1 Capscrew M10 x 30 41 8405006 2 Clamp 43 8405102 2 Clamp 44 8405104 2 Clamp 45 8405203 3 Clamp 46 8406109 AR Clip 47 8410011 1 Clamp 48 1001128901 2 Strap 49 1001138173 1 Support 50 1001138175 1 Bracket 51 1001138248 23 in/.6m Hose 52 1001141995 2 Fitting, Straight NPT/Barbed 53 1001149639 1 Indicator, Restriction
REV
I
ITEM PART NUMBER QTY DESCRIPTION
54 1001191610 3 Mount, Motor 55 1001168018 3 Washer 56 1001169054 4 Isolator 57 1001169138 4 Pad, Snubbing 58 1001169967 3 Bracket 59 1001170035 1 Bracket 60 1001186426 1 Clamp 61 1001189979 1 Filter, Air 61 70005008 1 Element, Filter 62 1001190942 1 Support 63 1001223042 1 Fan 64 1001215218 1 Engine Harness - Ford Engines (Not Shown) (See Separate Breakdown in ELECTRICAL SECTION) 65 1001223923 1 Radiator 66 1001215681 1 Clamp 67 1001215899 1 Pipe, Exhaust 68 1001215974 1 Clamp 69 1001216075 1 Pipe, Exhaust 70 1001216086 1 Bracket 71 1001216092 1 Shield, Heat 72 1001216201 1 Adapter 73 1001216910 1 Ford Engine Prep Assembly (See Separate Breakdown in this Section) 74 1001216919 2 Sleeve 76 1001222033 1 Plate 77 1001217185 2 Seal 78 1001217186 1 Support 79 1001217450 1 Tray 80 1001217453 1 Support, Radiator 81 1001217543 2 Mount 82 1001217593 1 Pipe, Air Intake 83 1001217594 1 Pipe, Air Intake 84 1001217595 1 Pipe, Air Intake 85 1001217647 1 Hose, Radiator (Lower) 86 1001217648 1 Hose, Radiator (Upper) 87 1001218471 1 Bracket 88 1001218559 1 Mount, Engine (RH Front) 89 1001218565 1 Mount, Engine (LH Front) 90 1001218575 1 Mount, Engine (Rear) 91 0761014 4 Bolt M10 x 30 92 1001187781 1 Tie-Strap (Not Shown) 93 2180418 1 Fitting 94 1001247359 1 Fitting, 90 95 2220261 1 Fitting 96 1001217183 2 Seal 100 8405009 AR Gear 101 8406201 1 Clip 102 8410009 AR Clamp 103 8420231 1 Fitting, Barb 104 1001173535 6 Clamp 105 1001216531 25 in/ 63cm Hose
REV
ITEM PART NUMBER QTY DESCRIPTION
106 1001223584 1 Tank, Surge 109 1001224486 1 Hose 110 1001224489 1 Hose 111 1001225442 1 Bracket 112 1001225510 1 Decal - Full Cold, Surge Tank 113 1001227666 1 Hose 114 1001227667 1 Hose
