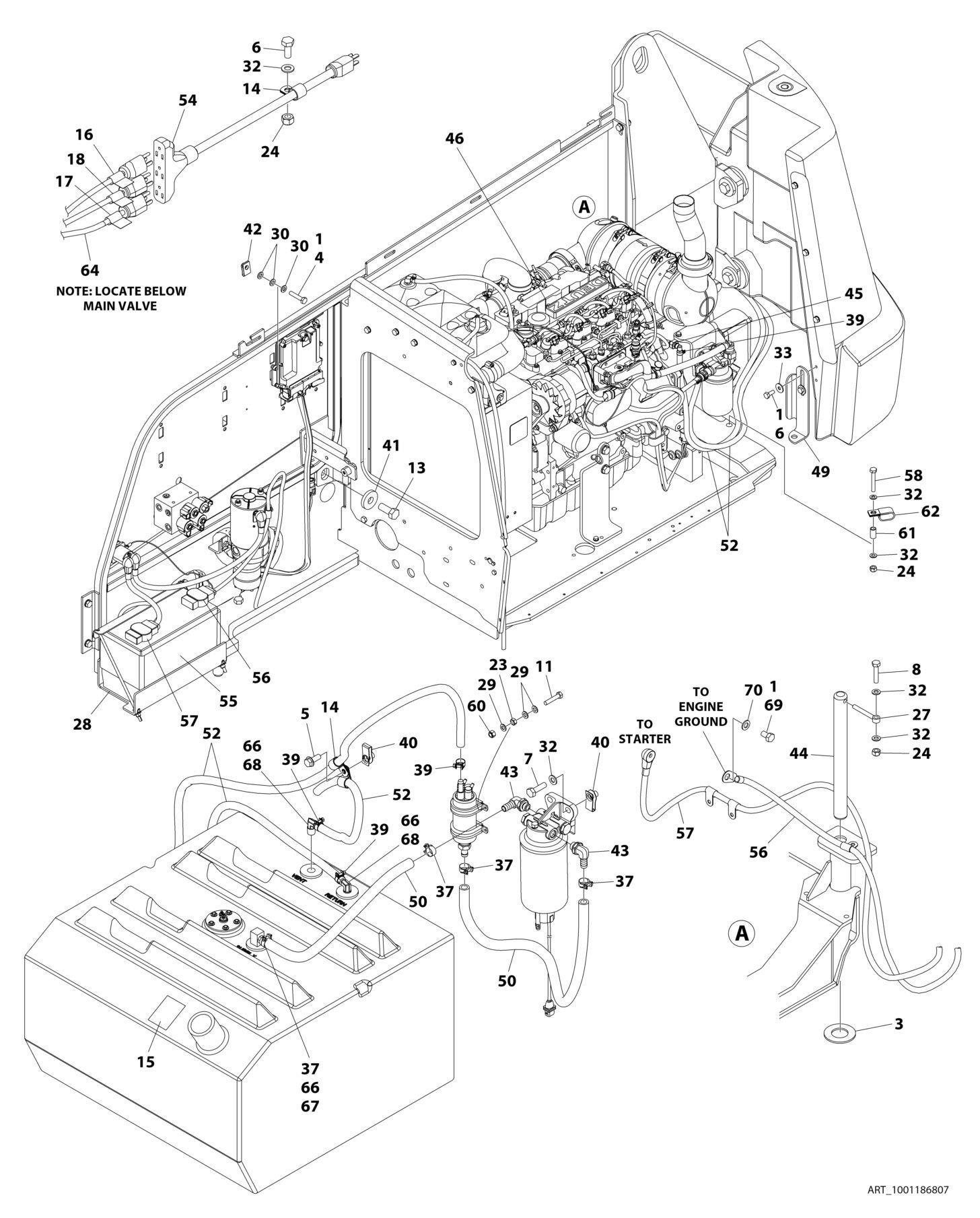

FIGURE 3-19. DEUTZ TD2.9L4 ENGINE INSTALLATION - WITH ARCTIC PACKAGE (600S HC3
ITEM PART NUMBER QTY
DESCRIPTION
1001186807 Ref DEUTZ TD2.9L4 - 67HP ENGINE INSTALLATION 1 0100011 AR Compound, Locking 3 0440162 1 Bearing 4 0700614 4 Bolt M6 x 30 5 5251012 1 Bolt M10 x 25 6 0701012 3 Bolt M10 x 25 7 0701015 2 Bolt M10 x 35 8 0711018 1 Bolt M10 x 50 11 0760512 4 Bolt M5 x 25 13 0772018 1 Bolt M20 x 50 14 1320061 3 Clamp 15 1701505 1 Decal - Diesel Fuel 16 1702941 1 Decal - Battery Heater 17 1702942 1 Decal - Engine Block Heater 18 1702943 1 Decal - Hydraulic Tank Heater 22 1001188972 1 Heater, Immersion (Not Shown - Located on Hydraulic Tank) 23 3290501 4 Nut M5 24 3291005 3 Nut M10 27 3841143 1 Keeper, Pin 28 3980007 1 Seat, Battery 29 4811600 12 Washer M5 30 4811700 12 Washer M6 32 4812000 7 Washer M10 33 4812002 2 Washer M10 37 1001175568 4 Clip 39 1001136975 5 Clamp 40 1001118972 3 Nut, Tinnerman M10 41 1001119051 1 Washer 42 1001130220 4 Nut, Tinnerman M6 43 1001142501 2 Fitting, 90 Barbed 44 1001155094 1 Pin 45 1001155823 1 Fitting, 90 Quick Connect 46 1001186813 1 Deutz TD2.9L4 - 67HP Engine and Pumps Sub-Assembly (See Separate Breakdown in this Section) 49 1001196398 1 Bracket 50 1001154405 33 in/ 0.8cm Hose 52 1001165035 27 ft/ 8.2m Hose 54 1060626 1 Plug, 3 Way 55 2580024 1 Heater, Battery 56 1001188668 1 Cable, Battery (-) to Aux Pump and Ground 57 1001188669 1 Cable, Battery (+) to Aux Relay to Starter 58 0701022 1 Bolt M10 x 70 60 3290505 4 Nut M5 61 1001200731 1 Tube 62 1001026127 1 Clamp 63 4240099 1 Tie-Strap (Not Shown) 64 1001150918 1 Cable, Extension 65 1001190444 1 Engine Harness - Deutz TD2.9L4 - 67HP Engines (Not Shown)
REV
N
ITEM PART NUMBER QTY
DESCRIPTION
(See Separate Breakdown in ELECTRICAL SECTION) 66 0100020 AR Sealant 67 2180832 1 Fitting, Straight Barbed 68 2220313 2 Fitting, 90 NPTF/Barb 69 0761210 1 Bolt M12 x 20 70 4812100 1 Washer M12 71 1001192690 1 Hose (Case Drain) (Drive Pump Case Gauge Port to Tank) (Not Shown) 72 1001203431 1 Hose (Case Drain) (Drive Pump Case Outlet Port to Tank) (Not Shown) 73 1001203432 1 Hose (Function Suction) (Not Shown) 74 1001203433 1 Hose (Drive Suction) (Not Shown) 75 1001233763 1 Deutz Breather Heater Installation (Not Shown) (See Separate Breakdown in this Section) 75 4240099 AR Tie-Strap 75 1001196634 1 Fuse 2amp 75 1001232842 1 Heater, Deutz Breather Kit 75 2400060 1 Fuse, Holder 100 1001235532 1 Battery Cable Kit (Includes Items 56 & 57) (Not Shown)
