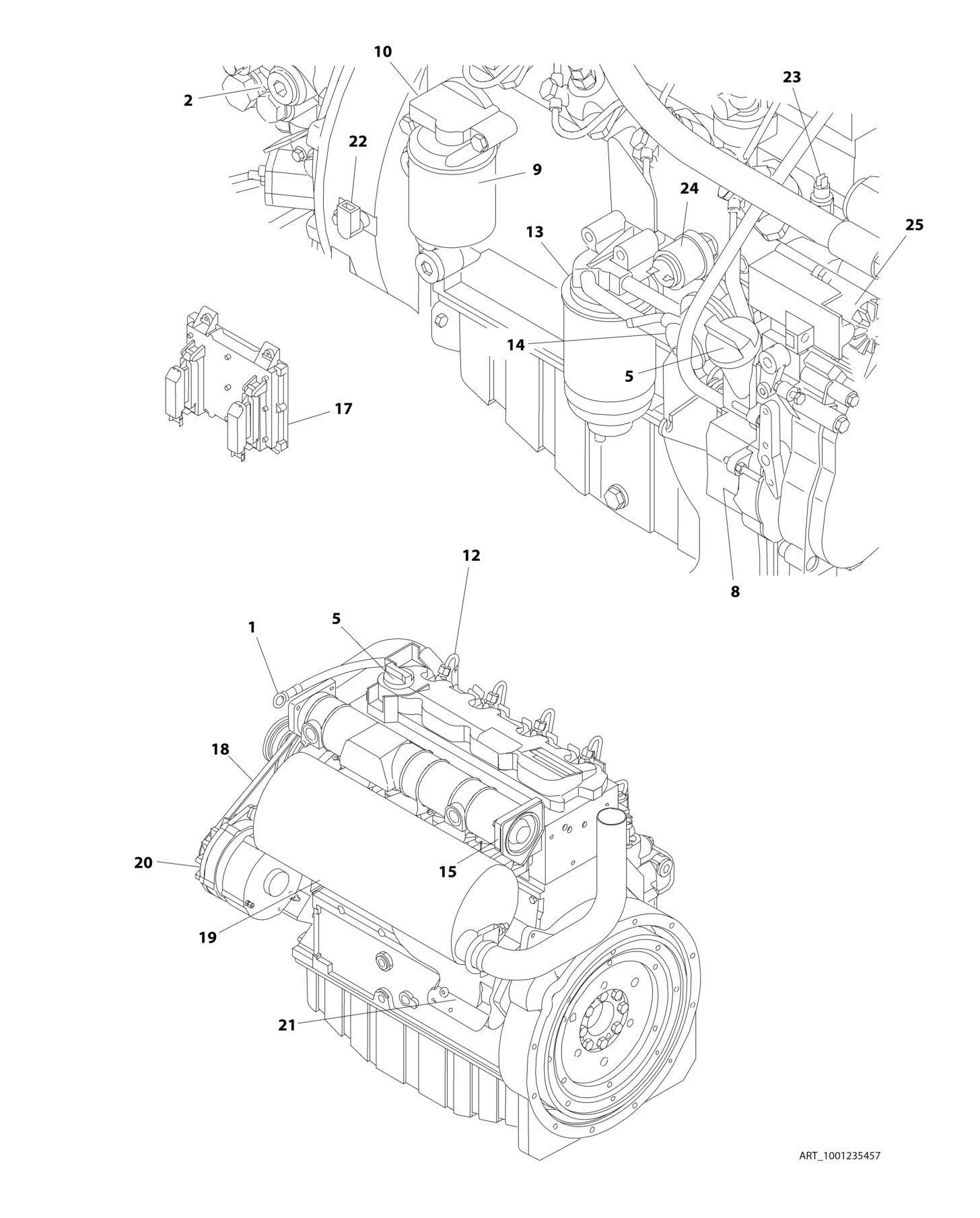

FIGURE 3-14. DEUTZ D2011 (STAGE V) ENGINE COMPONENTS (600S HC3/660SJ HC3
ITEM PART NUMBER QTY
DESCRIPTION
1001235457 Ref DEUTZ D2011 (STAGE V) ENGINE COMPONENTS 1 7026631 1 Dipstick 1 7020487 1 Seal, Dipstick 1 70001002 1 Tube, Dipstick 1 7020403 1 Seal, Dipstick Tube 2 70003475 1 Thermostat 3 70002718 1 Seal, Rear Main (Not Shown) 4 70001870 1 Flywheel (Not Shown) 4 7024579 1 Ring Gear (Located on Flywheel - Not Shown) 5 7020465 2 Cap, Filler 6 Ref Gasket, Head Options (Not Shown): 6 70003456 1 Gasket with 1 Notch 6 70003457 1 Gasket with 2 Notches 6 70003003 1 Gasket with 3 Notches 6 7020431 1 Gasket, Valve Cover (Not Shown) 6 70004273 1 Gasket Kit (Note: Does not include Head Gasket) 7 70000800 1 Kit, Timing Belt/Idler (Not Shown) 8 70001850 1 Pump, Oil Lube 8 7020468 1 Seal Between Oil Pump and Engine Block (Not Shown) 9 7016331 1 Filter, Oil 10 70003472 1 Bracket, Oil Filter 10 7027236 1 Sender, Temperature 10 70003473 1 Gasket, Bracket to Engine Block 11 70004268 2 Connector, Radiator Hose (Not Shown) 11 70004269 2 Ring, Sealing (Not Shown) 12 70003478 4 Injector, Fuel 12 70003136 4 Seal 12 Ref Pump, Injector Options: 12 70000912 Ref Series A Injector 12 70000913 4 Series B Injector 12 70000914 4 Series C Injector 12 70000915 4 Series D Injector 12 70003464 4 O-Ring 13 7016328 1 Filter, Fuel 13 70001423 1 Bracket, Fuel Filter 14 70000916 1 Pump Fuel Supply 14 70001435 1 Repair Kit for 70000916 Pump 14 70000919 1 Hand Pump 14 70000918 1 Seal, Hand Pump 14 70000917 1 O-Seal Between Fuel Pump and Engine Block 15 Ref Intake Manifold Components 15 70003469 1 Flange, Blanking 15 70003468 1 Seal (Flange to Air Intake Manifold) 15 70001871 4 Gasket, Intake Manifold to Engine Block (Not Shown) 15 70003470 8 Screw, Torx Head (Not Shown) 16 70001847 1 Breather Valve (Not Shown - Located On Front Cover) 16 70001126 1 Seal, Breather Valve 17 7027795 1 Module, Control 17 Ref Left Module Connections: 17 7027796 1 Cable, Interconnect (Module to 70001872 Cable)
REV
B
ITEM PART NUMBER QTY DESCRIPTION
17 70004060 1 Plug, Connector 17 70001872 1 Cable, Harness 17 70004103 1 Cable (Alternator to 70001872 Cable) 17 70004271 1 Cable (Starter to 70001872 Cable) 17 Ref Right Module Connections: 17 70004059 1 Plug, Diagnostic 18 7020408 1 V-Belt 19 Ref Muffler Options: 19 7000695 1 Standard Muffler (Supplied with Engine) 19 See Note 1 Spark Arrester Muffler 19 See Note 1 Catalytic Muffler 19 Ref Muffler Components: 19 1320176 1 Clamp, Saddle 19 70001017 1 Clamp 19 7024560 1 Plug, Brass 19 See Note 1 Pipe, Exhaust Standard Muffler (Note: Purchase Locally) 19 7024398 1 Pipe, Exhaust 19 7020471 4 Gasket, Exhaust Manifold to Engine Block 19 70004270 8 Stud, Muffler 20 70004056 1 Alternator 20 70001868 1 Regulator, Voltage (Not Shown) 20 70001866 1 Seal, Gasket for Voltage Regulator (Not Shown) 20 70000851 1 Bracket, Mounting (Not Shown) 20 70002234 1 Bracket, Adjusting (Not Shown) 21 7020479 1 Starter 21 70004058 1 Relay 21 70001498 1 Shield, Starter Heat 22 70004272 1 Sensor, Speed 22 70003932 1 Spacer, Sensor 23 7027791 1 Transmitter, Temperature 24 7027790 1 Sensor, Oil Pressure 25 7027792 1 Actuator, Throttle 25 7027276 2 Spring, Actuator 26 70000345 4 Plug, Glow (Not Shown) 27 70005479 1 Pulley, Crankshaft (Not Shown)
