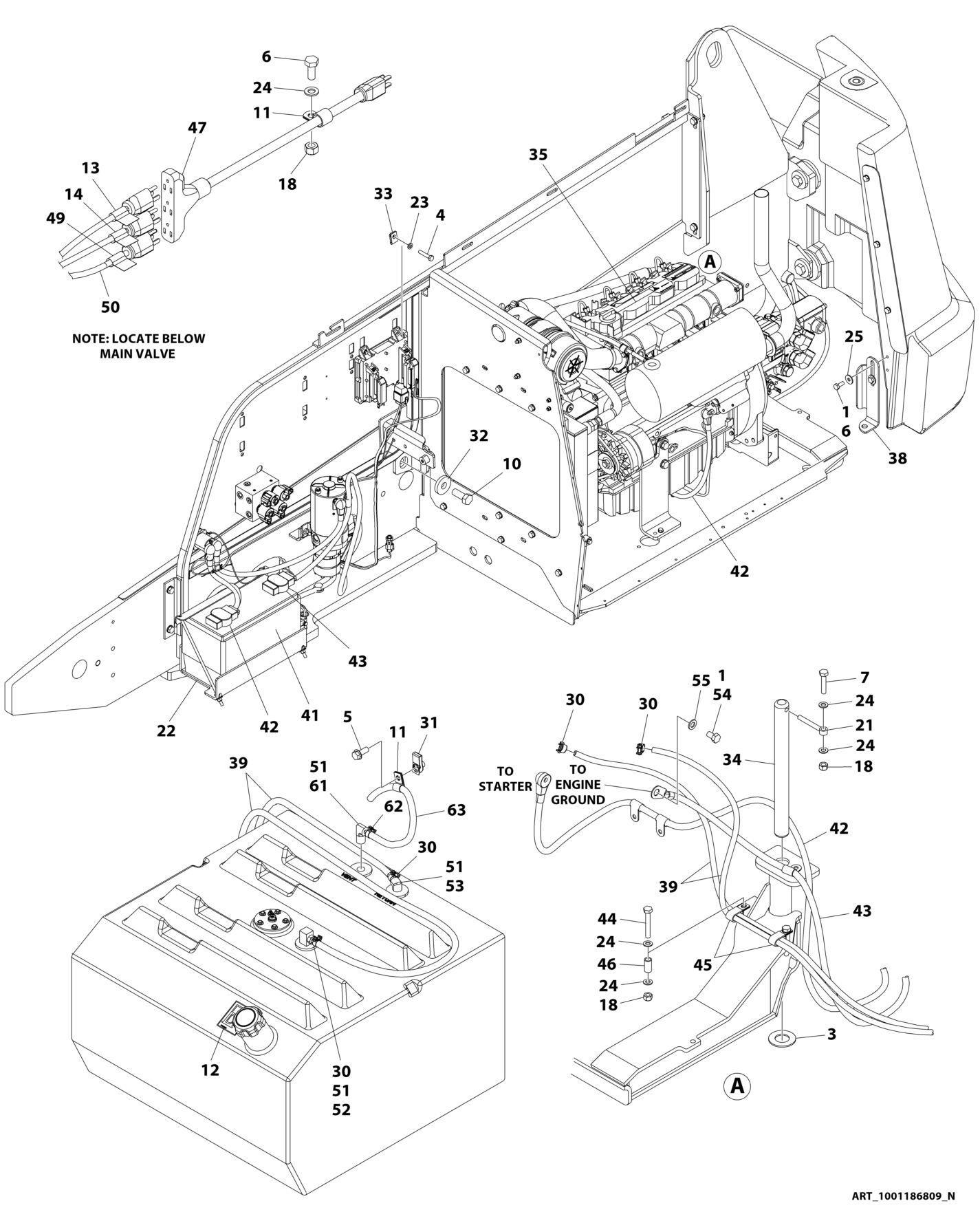

FIGURE 3-5. DEUTZ D2011 ENGINE INSTALLATION - WITH ARCTIC PACKAGE (600S HC3
ITEM PART NUMBER QTY
DESCRIPTION
1001186809 Ref DEUTZ D2011 ENGINE INSTALLATION 1 0100011 AR Compound, Locking 3 0440162 1 Bearing 4 0700614 4 Bolt M6 x 30 5 5251012 1 Bolt M10 x 25 6 0701012 3 Bolt M10 x 25 7 0711018 1 Bolt M10 x 50 10 0772018 1 Bolt M20 x 50 11 1320061 AR Clamp 12 1701505 1 Decal - Diesel Fuel 13 1702941 1 Decal - Battery Heater 14 1702943 1 Decal - Hydraulic Tank Heater 17 1001188972 1 Heater, Immersion (Not Shown - Located on Hydraulic Tank) 18 3291005 4 Nut M10 21 3841143 1 Keeper, Pin 22 3980007 1 Seal, Battery 23 4811700 4 Washer M6 24 4812000 7 Washer M10 25 4812002 2 Washer M10 30 1001174486 AR Clamp 31 1001118972 1 Nut, Tinnerman M10 32 1001119051 1 Washer 33 1001130220 4 Nut, Tinnerman M6 34 1001155094 1 Pin 35 1001186817 1 Deutz D2011 Engine and Pumps Sub-Assembly (See Separate Breakdown in this Section) 38 1001196398 1 Bracket 39 2720058 208 in/ 7.3m Hose, Fuel 41 2580024 1 Heater, Battery 42 1001188667 1 Cable, Battery (+) to Aux Relay to Starter 43 1001188670 1 Cable, Battery (-) to Aux Pump and Ground 44 0701022 2 Bolt M10 x 70 45 1001026127 2 Clamp 46 1001200731 2 Tube 47 1060626 1 Plug, 3 Way 48 4240099 1 Tie-Strap (Not Shown) 49 1702942 1 Decal - Engine Block Heater 50 1001150918 1 Cable, Extension 51 0100020 AR Sealant 52 2180348 1 Fitting, Straight NPT/Barbed 53 2221176 AR Fitting, 90 Barbed 54 0761210 1 Bolt M12 x 20 55 4812100 1 Washer M12 57 1001192690 1 Hose (Case Drain) (Drive Pump Case Gauge Port to Tank) (Not Shown) 58 1001203431 1 Hose (Case Drain) (Drive Pump Case Outlet Port to Tank) (Not Shown) 59 1001203432 1 Hose (Function Suction) (Not Shown) 60 1001203433 1 Hose (Drive Suction) (Not Shown)
REV
N
ITEM PART NUMBER QTY DESCRIPTION
61 2220313 1 Fitting, 90 NPTF/Barb 62 1001136975 1 Clamp 63 1001165035 20 in/ 0.5m Hose 100 1001235699 1 Battery Cable Kit (Includes Items 42 & 43) (Not Shown)
