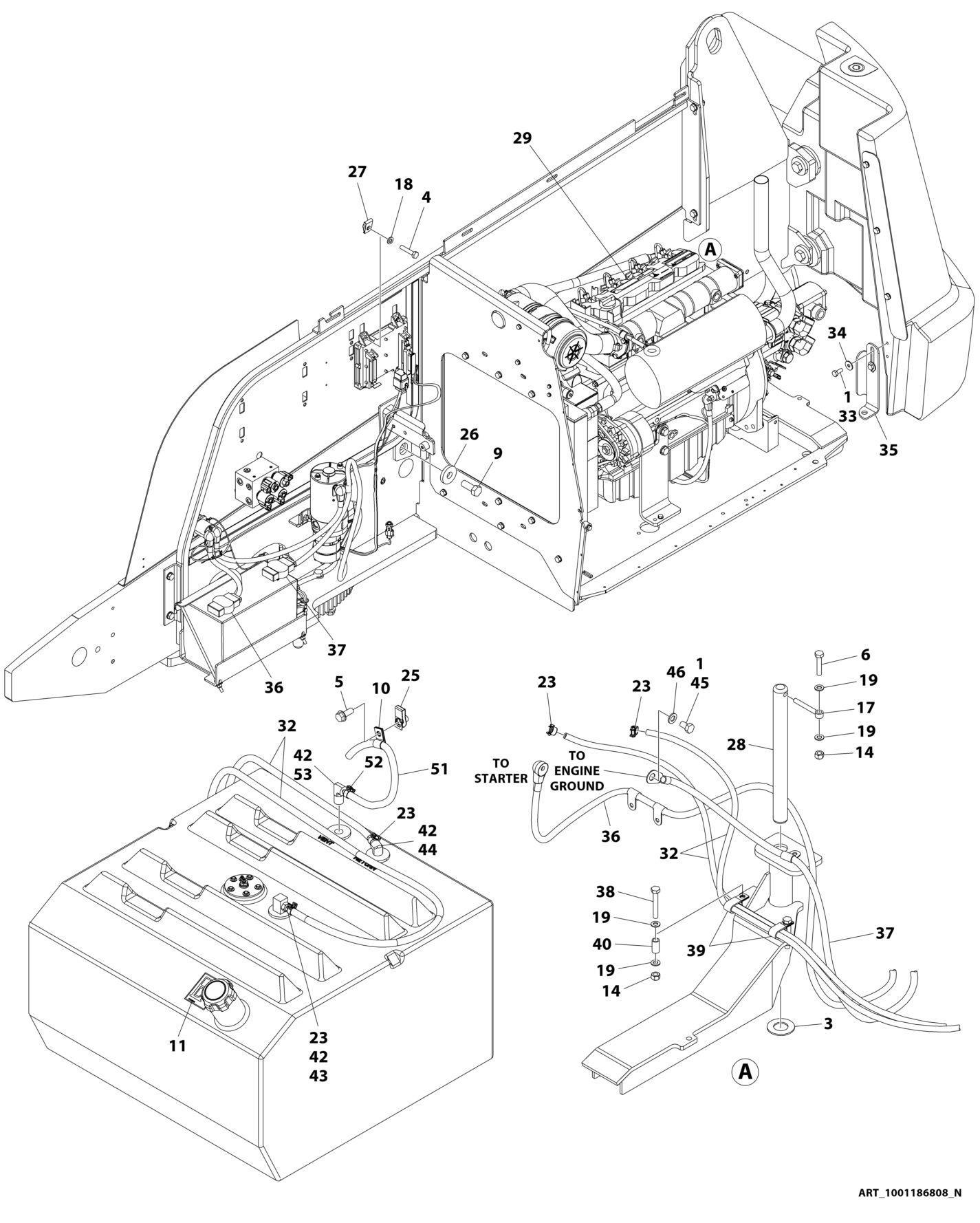

FIGURE 3-1. DEUTZ D2011 ENGINE INSTALLATION - WITHOUT ARCTIC PACKAGE (600S HC3
ITEM PART NUMBER QTY
DESCRIPTION
1001186808 Ref DEUTZ D2011 ENGINE INSTALLATION 1 0100011 AR Compound, Locking 3 0440162 1 Bearing 4 0700614 4 Bolt M6 x 30 5 5251012 1 Bolt M10 x 25 6 0711018 1 Bolt M10 x 50 9 0772018 1 Bolt M20 x 50 10 1320061 1 Clamp 11 1701505 1 Decal - Diesel Fuel 14 3291005 3 Nut M10 17 3841143 1 Keeper, Pin 18 4811700 4 Washer M6 19 4812000 6 Washer M10 23 1001174486 AR Clamp 25 1001118972 1 Nut, Tinnerman M10 26 1001119051 1 Washer 27 1001130220 4 Nut, Tinnerman M6 28 1001155094 1 Pin 29 1001186815 1 Deutz D2011 Engine and Pumps Sub-Assembly (See Separate Breakdown in this Section)
32 2720058 288 in/ 7.3m Hose, Fuel
33 0701012 2 Bolt M10 x 70 34 4812002 2 Washer M10 35 1001196398 1 Bracket 36 1001188667 1 Cable, Battery (+) to Aux Relay to Starter 37 1001188670 1 Cable, Battery (-) to Aux Pump and Ground 38 0701022 2 Bolt M10 x 70 39 1001026127 2 Clamp 40 1001200731 2 Tube 41 4240099 6 Tie-Strap (Not Shown) 42 0100020 AR Sealant 43 2180348 1 Fitting, Straight NPT x Barb 44 2221176 AR Fitting, 90 Barbed 45 0761210 1 Bolt M12 x 20 46 4812100 1 Washer M12 47 1001192690 1 Hose (Case Drain) (Drive Pump Case Gauge Port to Tank) (Not Shown) 48 1001203431 1 Hose (Case Drain) (Drive Pump Case Outlet Port to Tank) (Not Shown) 49 1001203432 1 Hose (Function Suction) (Not Shown) 50 1001203433 1 Hose (Drive Suction) (Not Shown) 51 1001165035 20 in/ 0.5m Hose 52 1001136975 1 Clamp 53 2220313 1 Fitting, 90 NPTF/Barb 100 1001235699 1 Battery Cable Kit (Includes Items 36 & 37) (Not Shown)
REV
N
