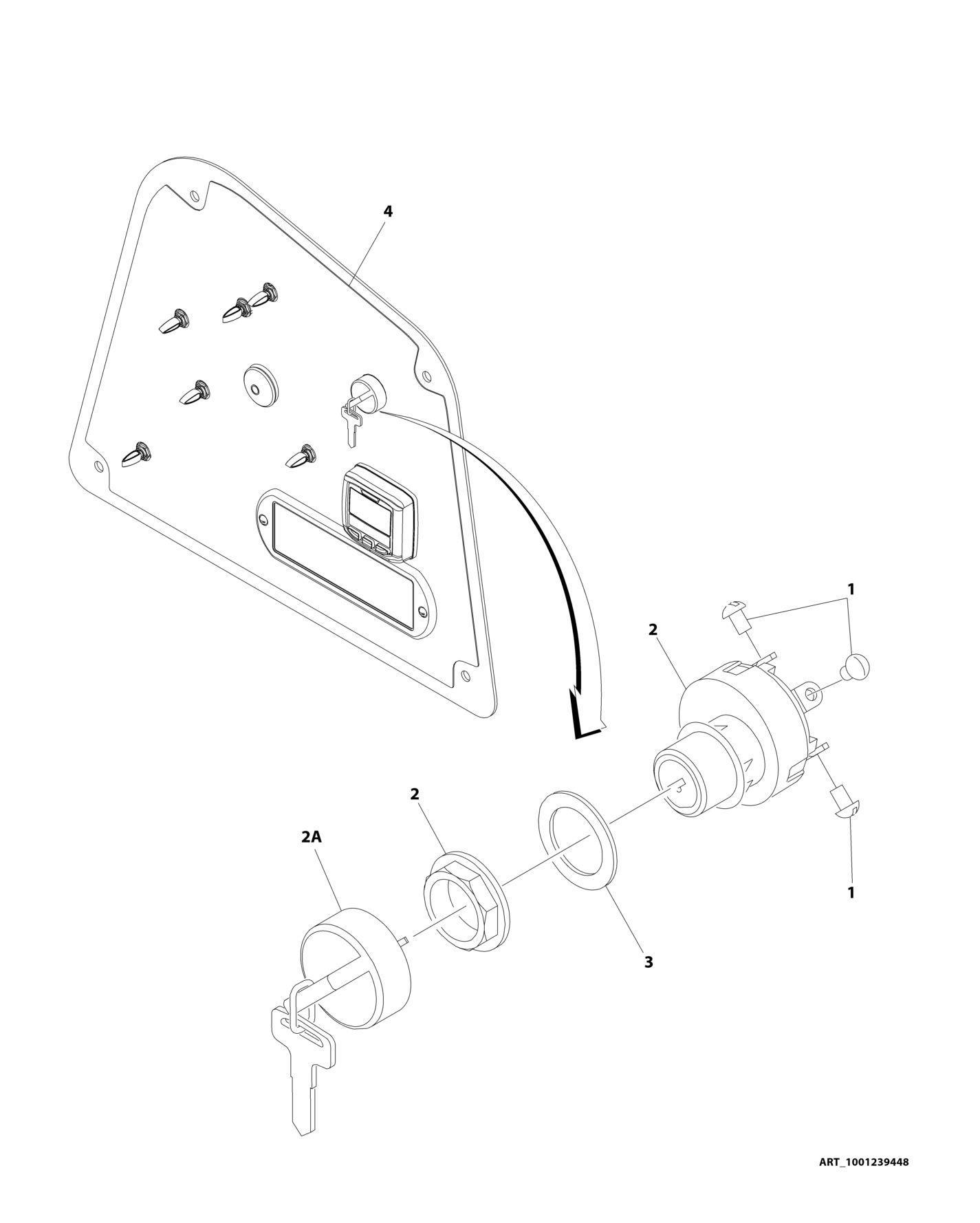

FIGURE 2-25. KEYSWITCH INSTALLATION - 600S HC3 (ALL SPECS EXCEPT CE SPECS

from JLG 600S HC3 660SJ HC3 PVC 2001 Parts Manual (31215909) - PDF DOWNLOAD (ENGLISH)

by www.heydownloads.com

FIGURE 5-20. CONTROLLER ASSEMBLY (DRIVE AND STEER

FIGURE 2-25. KEYSWITCH INSTALLATION - 600S HC3 (ALL SPECS EXCEPT CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001239448 Ref KEYSWITCH INSTALLATION 1 3910804 6 Screw #8 x 1/4 2 4360469 1 Switch, Key 2A 2860030 1 Set Key, Replacement 3 1001151393 1 Shim 4 1001239450 1 Decal - Ground Control Panel

FIGURE 2-25. KEYSWITCH INSTALLATION - 600S HC3 (ALL SPECS EXCEPT CE SPECS
