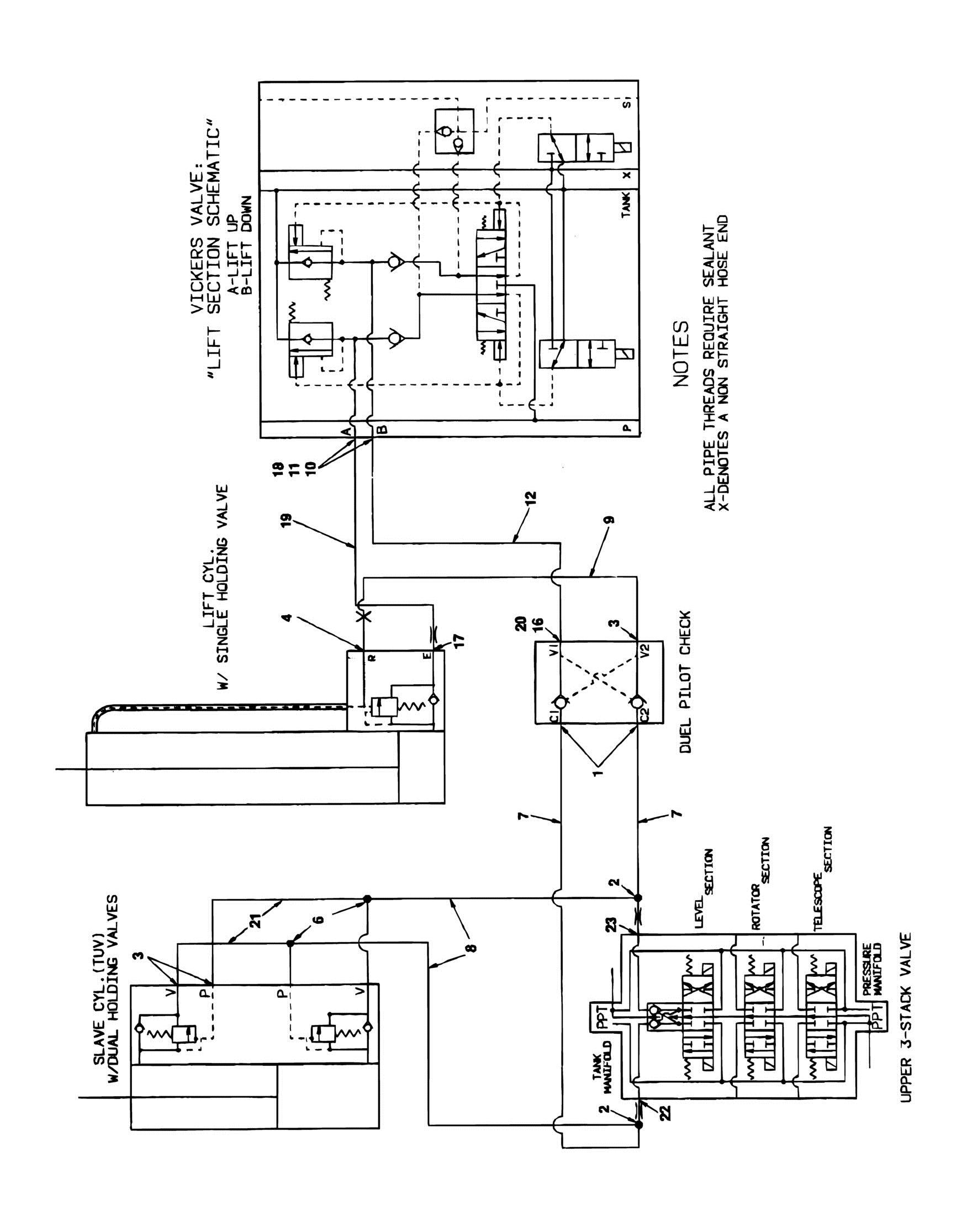

FIGURE 6-5. LIFT AND SLAVE (MAIN BOOM) HYDRAULIC DIAGRAM
Advertisement
ITEM PART NUMBER QTY
DESCRIPTION
Ref LIFT AND SLAVE (MAIN BOOM) HYDRAULIC DIAGRAM 2792009 Ref Gas and Diesel Machines 2792011 Ref Electric Machines 1 2220371 2 Fitting, Straight 2 2220579 2 Fitting, Tee 3 2220473 3 Fitting, 90 4 2180548 1 Fitting, Modified (Gas and Diesel Machines) 4 2180448 1 Fitting, Orifice (.062) (Gas and Diesel Machines) (Prior to SN
27346)
4 2180380 1 Fitting, Orifice (.062) (Gas and Diesel Machines) (SN 27346 to
Present)
4 2220343 1 Fitting, Straight (Electric Machines) 6 2220899 2 Fitting, Tee 7 2751113 2 Hose 8 2751161 2 Hose 9 2750910 1 Hose 10 2220501 2 Fitting, Reducer (Gas and Diesel Machines Only) 11 2220221 2 Fitting, Reducer 12 2751912 1 Hose (Gas and Diesel Machines) 12 2751911 1 Hose (Electric Machines) 16 2220472 1 Fitting, 90 17 2220585 1 Fitting, 90 (Gas and Diesel Machines) 17 2180630 1 Fitting, 90 Modified (Electric Machines) 17 2180631 1 Fitting, Orifice (.062) (Electric Machines) 18 2220609 2 Fitting, Reducer (Gas and Diesel Machines) 18 2220582 2 Fitting, Straight (Electric Machines) 19 2751911 1 Hose (Gas and Diesel Machines) 19 2751912 1 Hose (Electric Machines) 20 2220654 1 Fitting, 90 21 2750918 2 Hose 22 2220473 1 Fitting, 90 (Gas and Diesel Machines) 22 2180480 1 Fitting, Modified Straight (Electric Machines) 22 2180724 1 Fitting, Orifice (Electric Machines) 23 2220371 1 Fitting, Straight (Gas and Diesel Machines) 23 2180480 1 Fitting, Modified Straight (Electric Machines) 23 2180615 1 Fitting, Orifice (.047) (Electric Machines)
REV
B
