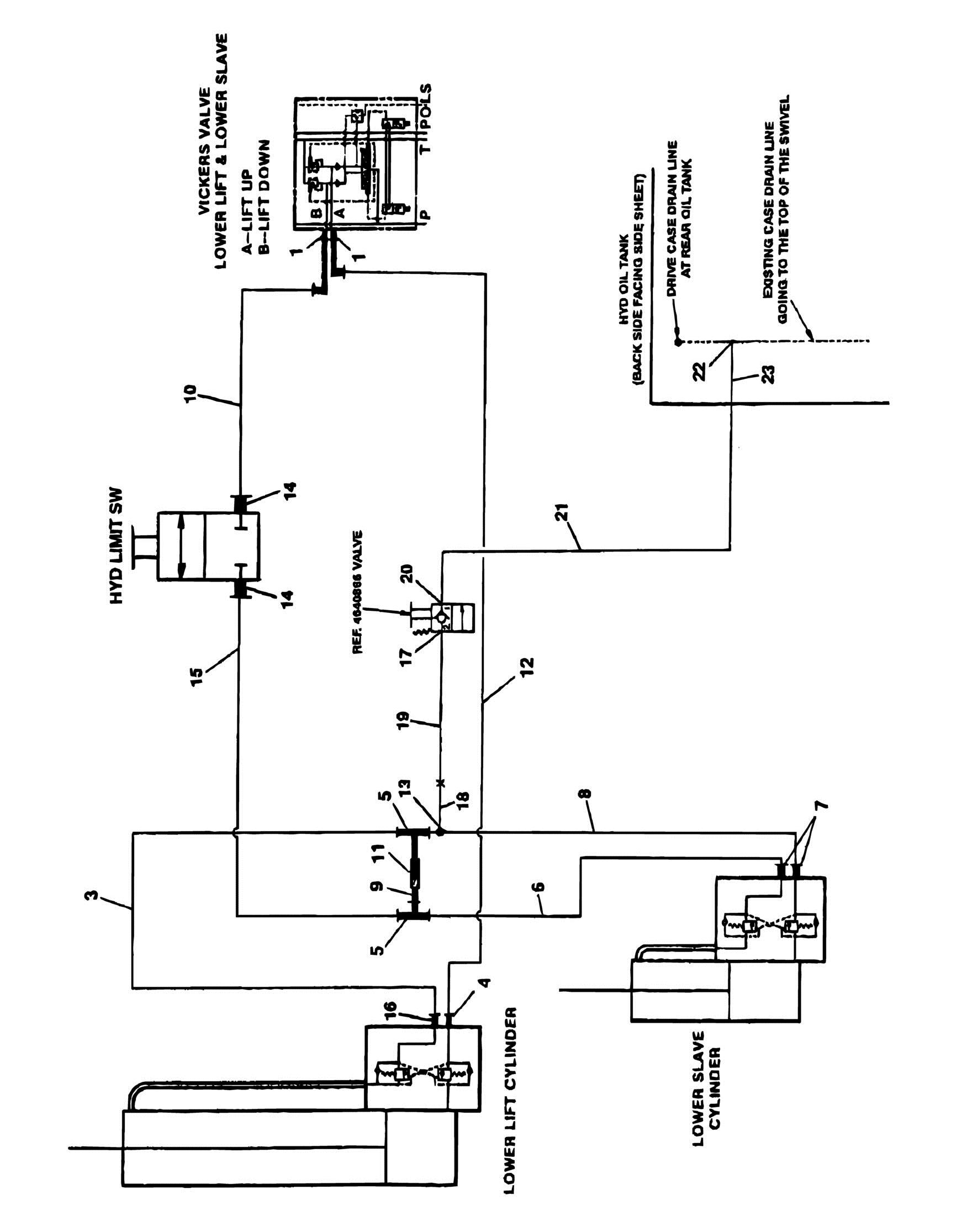

FIGURE 6-4. LIFT AND LEVEL (TOWER BOOM) HYDRAULIC DIAGRAM
Advertisement
ITEM PART NUMBER QTY
DESCRIPTION
Ref LIFT AND LEVEL (TOWER BOOM) HYDRAULIC DIAGRAM 2791487 Ref Gas and Diesel Machines 2791387 Ref Electric Machines 1 2220577 2 Fitting, Straight 3 2750991 1 Hose 4 2220343 1 Fitting, Straight (Gas and Diesel Machines) 4 2180423 1 Fitting, Orifice (.078) (Electric Machines) 4 2180548 1 Fitting, Modified Straight (Electric Machines) 5 2220604 2 Fitting, Tee 6 2751163 1 Hose 7 2220399 2 Fitting, Straight 8 2751164 1 Hose 9 2200283 1 Fitting, Coupling 10 2751133 1 Hose 11 4640160 1 Valve, Relief 12 2751110 1 Hose 13 2220635 1 Fitting, Tee (Gas and Diesel Machines) 14 2220703 2 Fitting, 90 15 2750911 1 Hose 16 2220343 1 Fitting, Straight 17 2220582 1 Fitting, Straight (Gas and Diesel Machines) 18 2220609 1 Fitting, Reducer (Gas and Diesel Machines) 19 2750891 1 Hose (Gas and Diesel Machines) 20 2220472 1 Fitting, 90 (Gas and Diesel Machines) 21 2751899 1 Hose (Gas and Diesel Machines) 22 2220385 1 Fitting, Tee (Gas and Diesel Machines) 23 2220618 1 Fitting, Reducer (Gas and Diesel Machines) 0100020 AR Sealant, Pipe 2901310 1 Resynchronizing Kit (Standard January 1995 to Present)
REV
D E
