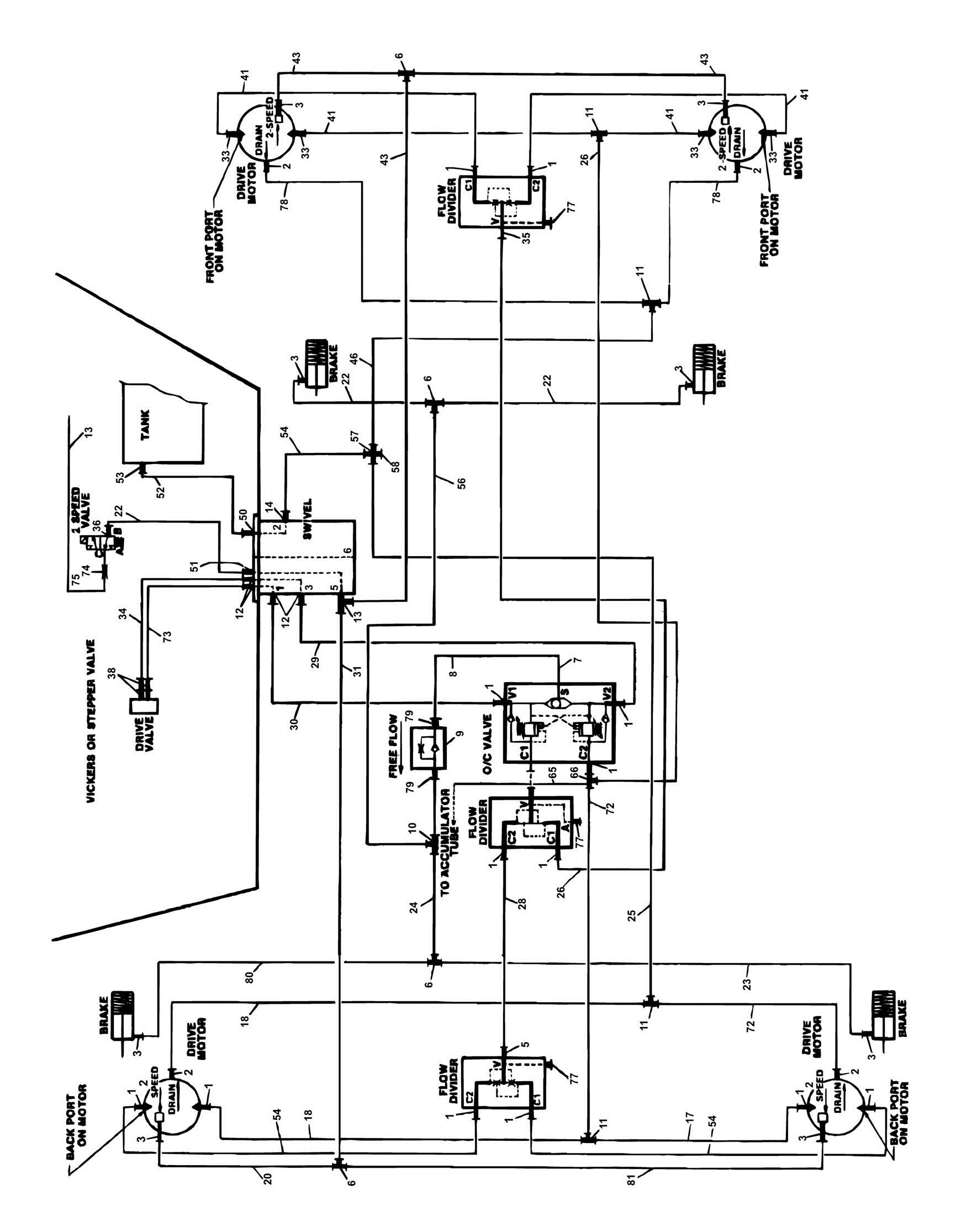

FIGURE 6-3. DRIVE HYDRAULIC DIAGRAM (4WD WITH SWIVEL
ITEM PART NUMBER QTY
DESCRIPTION
2791971 Ref DRIVE HYDRAULIC DIAGRAM (4WD WITH SWIVEL) 1 2220375 13 Fitting, Straight 2 2220596 4 Fitting, 90 3 2220415 8 Fitting, Straight 5 2220800 1 Fitting, Straight 6 2220504 4 Fitting, Tee 10 2220711 1 Fitting 11 2220362 4 Fitting, Tee 12 2220346 4 Fitting, Straight 13 2220684 1 Fitting, Tee 14 2220345 1 Fitting, Swivel 17 2750791 1 Hose 18 2750976 2 Hose 19 2751412 1 Hose 20 2750889 1 Hose 22 2751899 3 Hose 23 2751017 1 Hose 24 2751409 1 Hose 25 2750777 1 Hose 26 2750759 2 Hose 28 2751490 1 Hose 29 2751494 1 Hose 30 2750968 1 Hose 31 2751021 1 Hose 33 2220366 4 Fitting, 90 34 2750927 1 Hose 35 2220367 1 Fitting, 90 36 2220472 1 Fitting, 90 38 2220375 1 Fitting, Straight 41 2750766 4 Hose 43 2751026 3 Hose 45 2750773 2 Hose 46 2750762 1 Hose 50 2220345 1 Fitting, Straight 51 2220417 1 Fitting, Straight 52 2750972 1 Hose 53 2220659 1 Fitting, 90 54 2750928 3 Hose 56 2750756 1 Hose 57 2220469 1 Fitting, Cross 58 2220619 1 Fitting, Reducer 66 to 71 2220385 1 Fitting, Tee 72 2750929 2 Hose 73 2750757 1 Hose 74 2220582 1 Fitting 75 2220909 1 Fitting, Orifice (.015) 77 2220235 3 Fitting 78 4100026 2 Sleeve, Nylon 80 2751010 1 Hose 81 2750889 1 Hose
