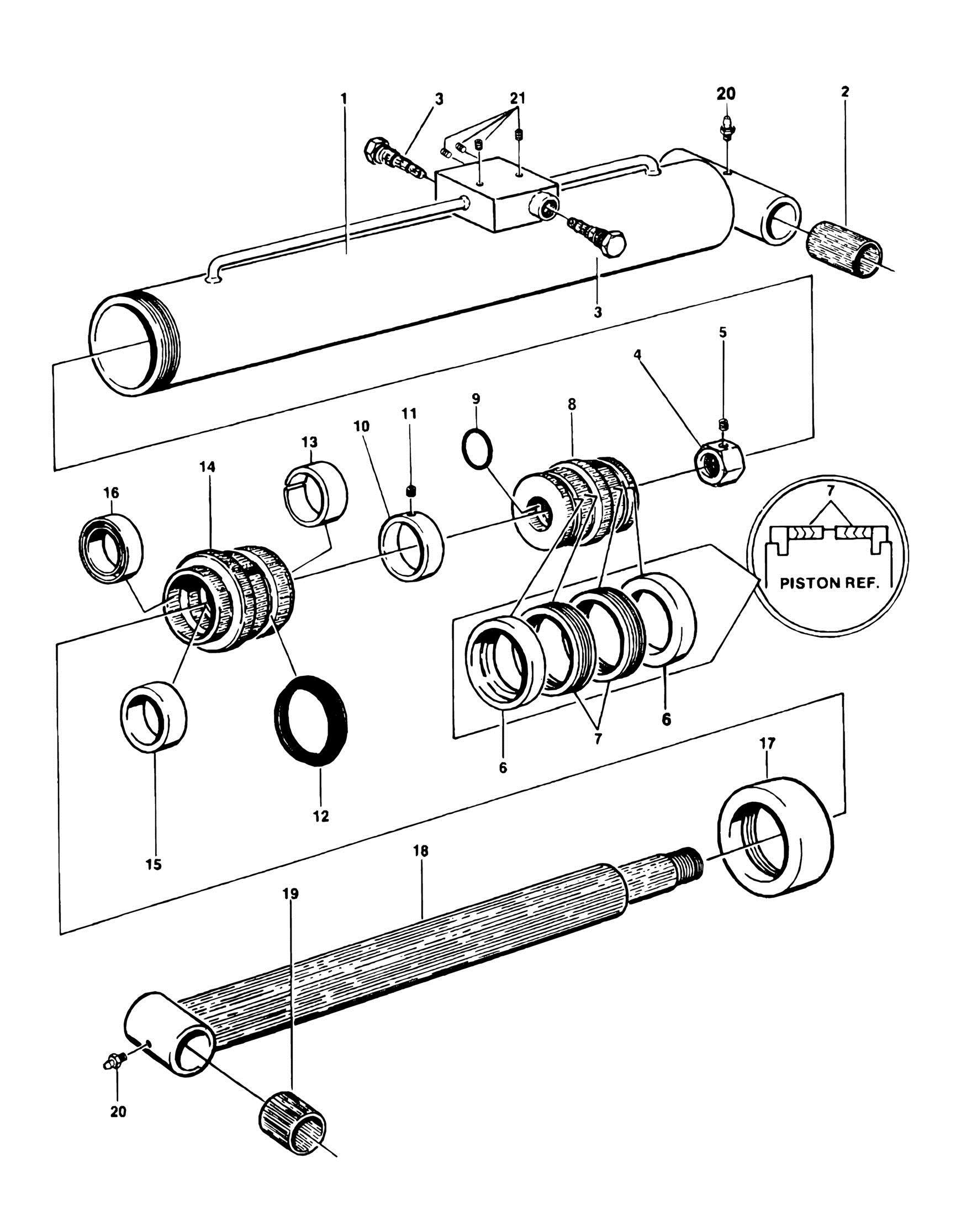

FIGURE 5-5. PLATFORM LEVEL CYLINDER ASSEMBLY (MAIN BOOM) (PRIOR TO OCTOBER 1992

FIGURE 5-5. PLATFORM LEVEL CYLINDER ASSEMBLY (MAIN BOOM) (PRIOR TO OCTOBER 1992)

FIGURE 5-5. PLATFORM LEVEL CYLINDER ASSEMBLY (MAIN BOOM) (PRIOR TO OCTOBER 1992)

ITEM PART NUMBER QTY

DESCRIPTION

Ref PLATFORM LEVEL CYLINDER ASSEMBLY (MAIN BOOM) 1682178 Ref Platform Level Cylinder Assembly (Main Boom) Prior to

October 1992

1 1681869 1 Barrel Assembly 2 0960613 2 Bushing, Bronze 3 4640509 2 Valve 3 2900792 1 Seal Kit - 4640509 Valve 4 3300284 1 Nut, Hex 4 0100011 AR Loctite #242 4 0100038 AR Primer, Locking 5 3900170 1 Setscrew 3/8in-16NC x 3/8in 5 0100011 AR Loctite #242 6 Kit 2 Lok-Ring 7 Kit 2 Seal, Piston 8 3480141 1 Piston 9 Kit 1 O-Ring 10 4563771 1 Spacer, Tube 11 3900141 1 Setscrew 1/4in-20NC x 3/8in 11 0100011 AR Loctite 12 Kit 1 T-Seal 13 Kit 1 Ring, Wear 14 1681847 1 Head 15 Kit 1 Seal, Rod 16 Kit 1 Wiper, Rod 17 1120336 1 Cap 17 0100035 AR Loctite 18 1682177 1 Rod Assembly 19 0961254 2 Bushing, Bronze 20 2160002 2 Fitting, Grease 21 2200202 2 Plug 1/4in 21 2200201 2 Plug 1/8in 21 0100020 AR Sealant, Pipe 2901103 1 Seal Kit (Includes Items 6, 7, 9, 12, 13, 15 & 16.) Ref Note: Refer to number stamped on barrel for identification.

REV

C
