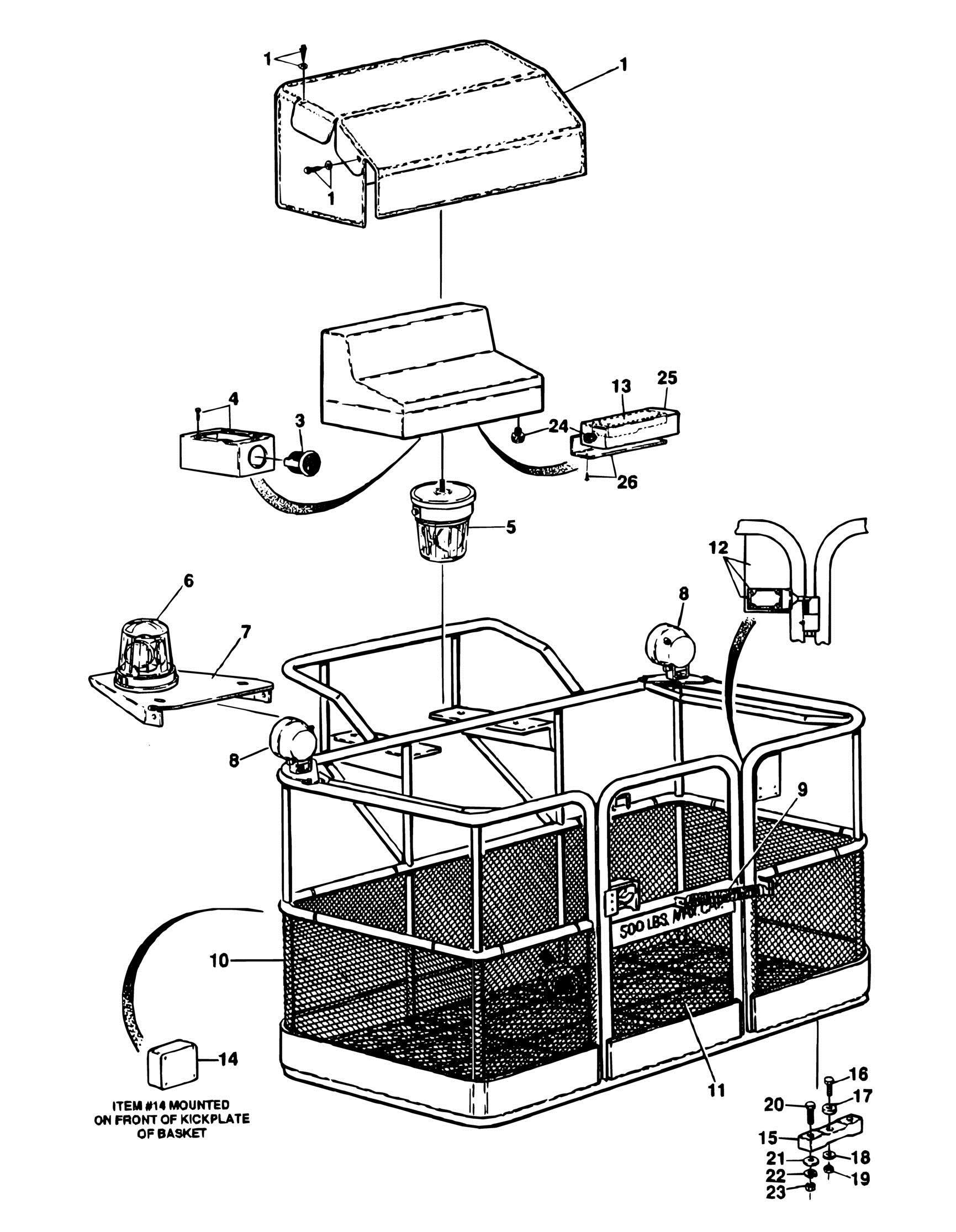

FIGURE 4-7. OPTIONAL COMMON PLATFORM MOUNTED COMPONENTS

FIGURE 4-7. OPTIONAL COMMON PLATFORM MOUNTED COMPONENTS

FIGURE 4-7. OPTIONAL COMMON PLATFORM MOUNTED COMPONENTS

ITEM PART NUMBER QTY

DESCRIPTION

Ref CONSOLE BOX COVER INSTALLATION 0252054 Ref Black Vinyl 0251203 Ref Yellow Vinyl 0252848 Ref CLEAR PLEXI-GLASS 0253634 Ref Metal 1 1670607 1 Cover Options: 1 1670607 1 Cover (Black Vinyl) 1 1670526 1 Cover (Yellow Vinyl) 1 1670641 1 Cover, Plexi-Glass (Not Shown) 1 Not Available Cover (Metal - Not Shown) (Purchase Individual Pieces) 1 1670674 1 Cover, Top 1 1670676 1 Cover, Hinged Mid 1 1670677 1 Cover, Bottom 1 3252369 1 Nameplate - Caution/Danger 1 3941406 4 Screw, Self-Tapping 1/4inx20 1 4751400 4 Flatwasher 1/4in 1 0901842 1 Bracket (Right Side) (Use with Plexi-Glass Cover Only) 1 0901843 1 Bracket (Left Side) (Use with Plexi-Glass Cover Only) Ref BATTERY CAPACITY GAGE INSTALLATION ELECTRIC

MACHINES

0238951 Ref Gage Installation - Standard 0239195 Ref Gage Installation - With Interrupt 3 Ref Gage Options: 3 2420075 1 Gage - Battery Capacity 3 2420049 1 Gage - Battery Capacity with Interrupt 4 0860530 1 Box, Mounting Ref BEACON LIGHT OPTIONS 0252210 Ref Beacon Mounted Under Console 0252211 Ref Beacon Mounted Under Console 5 Ref Beacon Options: 5 2920009 Ref Beacon (Red) 5 2920018 Ref Beacon (Amber) 5 Ref Beacon Mounted in Front of Console 5 0238864 Ref Amber Beacon (Gas/Diesel Machines) 5 0238865 Ref Red Beacon (Gas/Diesel Machines) 5 0238868 Ref Amber Beacon (Electric Machines) 5 0238869 Ref Red Beacon (Electric Machines) 6 Ref Beacon Options: 6 2920009 Ref Beacon (Red) 6 2920018 Ref Beacon (Amber) 7 0901449 Ref Bracket, Mounting Ref WORKLIGHT INSTALLATIONS (OPTIONAL) 2900068 Ref Worklight Installations (Prior To November 1992) 0253987 Ref Worklight Installations (November 1992 To Present) 8 Ref Floodlight Options: 8 2920013 2 Floodlight (Electric/Gas/Diesel Machines) 8 2920111 2 Halogen Light (Electric/Gas/Diesel Machines) (Uses P/N 3536089 Mounting Plate) 0250143 Ref SELF-CLOSING GATE INSTALLATION (WELDED-ON) 0256829 Ref SELF-CLOSING GATE INSTALLATION (BOLT-ON)

REV

2 2

3 3

F C

A A

ITEM PART NUMBER QTY DESCRIPTION REV

9 4160028 1 Spring 9 0900232 1 Bracket (Door Mounted) (Welded-On Models) 9 0901056 1 Bracket (Platform Mounted) (Welded-On Models) 9 4220007 1 Stop, Door 9 0630515 2 Eyebolt (Bolted-On Model) 9 3300151 2 Nut, Acorn (Bolted-On Model) Ref MESH TO MIDRAIL INSTALLATION 0253846 Ref Mesh to Midrail Installation (Low Mount Platform) 0254130 Ref Mesh To Midrail Installation (Standard 30in X 60in Platform) 0254796 Ref Mesh To Midrail Installation (Standard 30in X 48in Platform) -

10

Ref Mesh (Sides) Options: 10 0480083 2 Mesh (Sides) (Low-Mount Platform) 10 0480086 2 Mesh (Sides) (Standard 30in x 60in Platform) 10 0480088 1 Mesh (Sides) (Standard 30in x 48in Platform) 11 0480084 1 Mesh (Door) Ref SAFE LOAD INDICATOR SYSTEM INSTALLATION (FRENCH

SPEC)

1692979 Ref Safe Load Indicator System Installation (Prior to June 1997) A 0251921 Ref Safe Load Indicator System Installation (June 1997 to March

1998)

A 0258040 Ref Safe Load Indicator System Installation (March 1998 to

Present)

4

12 Ref Safe Load Indicator System Kit Options: 12 1692405 1 Safe Load Indicator System Kit (Prior to March 1998) 12 2901557 1 Safe Load Indicator System Kit (March 1998 to Present) 13 Ref Amplifier 14 Ref Box, Junction 15 Ref Cell, Load (Front of Basket) 15 1692959 2 Spacer (Rear of Basket) 16 0641820 1 Bolt 1/2in-13NC x2 1/2in 17 1692980 1 Spacer 18 4751800 1 Flatwasher 1/2in 19 3311805 1 Locknut 1/2in-13NC 20 0641616 2 Bolt 3/8in-16NC x 2in 21 4751600 2 Flatwasher 3/8in 22 4761600 2 Lockwasher 3/8in 23 3311601 2 Nut 3/8in-16NC 24 4460071 1 Connector, Strain Relief 24 0960238 1 Bushing 24 3300048 1 Nut, Conduit 25 0860619 1 Box 25 3911012 4 Screw #10-24NC 25 4751000 8 Flatwasher #10 25 4761000 4 Lockwasher #10 26 3533904 1 Lid 26 0750806 4 Screw, Self-Tapping #8 x 3/4in 26 4740120 4 Washer, Nylon 26 3300177 4 Nut, Tinnerman 26 4420008 75.8 cm Tape, Insulating
