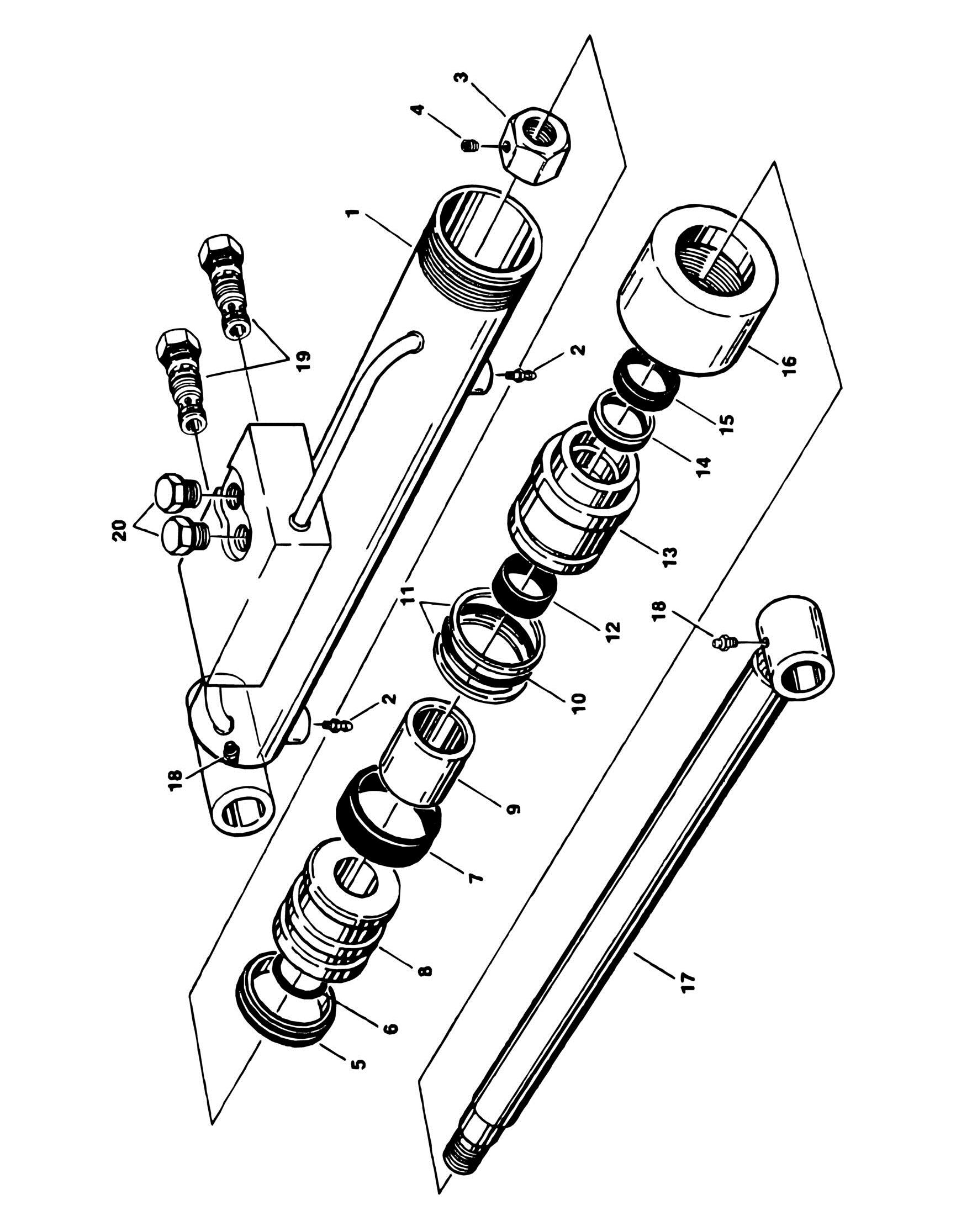

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY
FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY
FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1682406 Ref AXLE LOCKOUT CYLINDER ASSEMBLY 1 1682407 1 Barrel 2 3900175 2 Setscrew 1/4in-28NF x 3/4in 2 3960416 2 Seal, Thread 2 3321401 2 Nut 1/4in-28NF Ref Note: Replace existing bleeders with these components when ordering parts. 3 3300273 1 Nut 4 3900170 1 Setscrew 4 0100035 AR Compound, Locking 4 0100038 AR Primer, Locking 5 Kit 1 Seal, Piston 6 Kit 1 O-Ring 7 Kit 1 Ring, Wear 8 3480120 1 Piston 9 4563647 1 Tube, Spacer 10 Kit 1 O-Ring 11 Kit 1 Ring, Back-up 12 Kit 1 Ring, Wear 13 1680892 1 Head 14 Kit 1 Seal, Rod 15 Kit 1 Seal, Wiper 16 1120179 1 Retainer 16 0100011 AR Loctite 17 1681787 1 Rod 18 2160002 1 Fitting, Grease 19 4640438 2 Cartridge, Check Valve 19 2900770 2 Seal Kit -Cartridge 20 2220885 2 Plug 2900381 1 Seal Kit (Includes Items 5-7, 10-12 & 14-15)
REV
B
