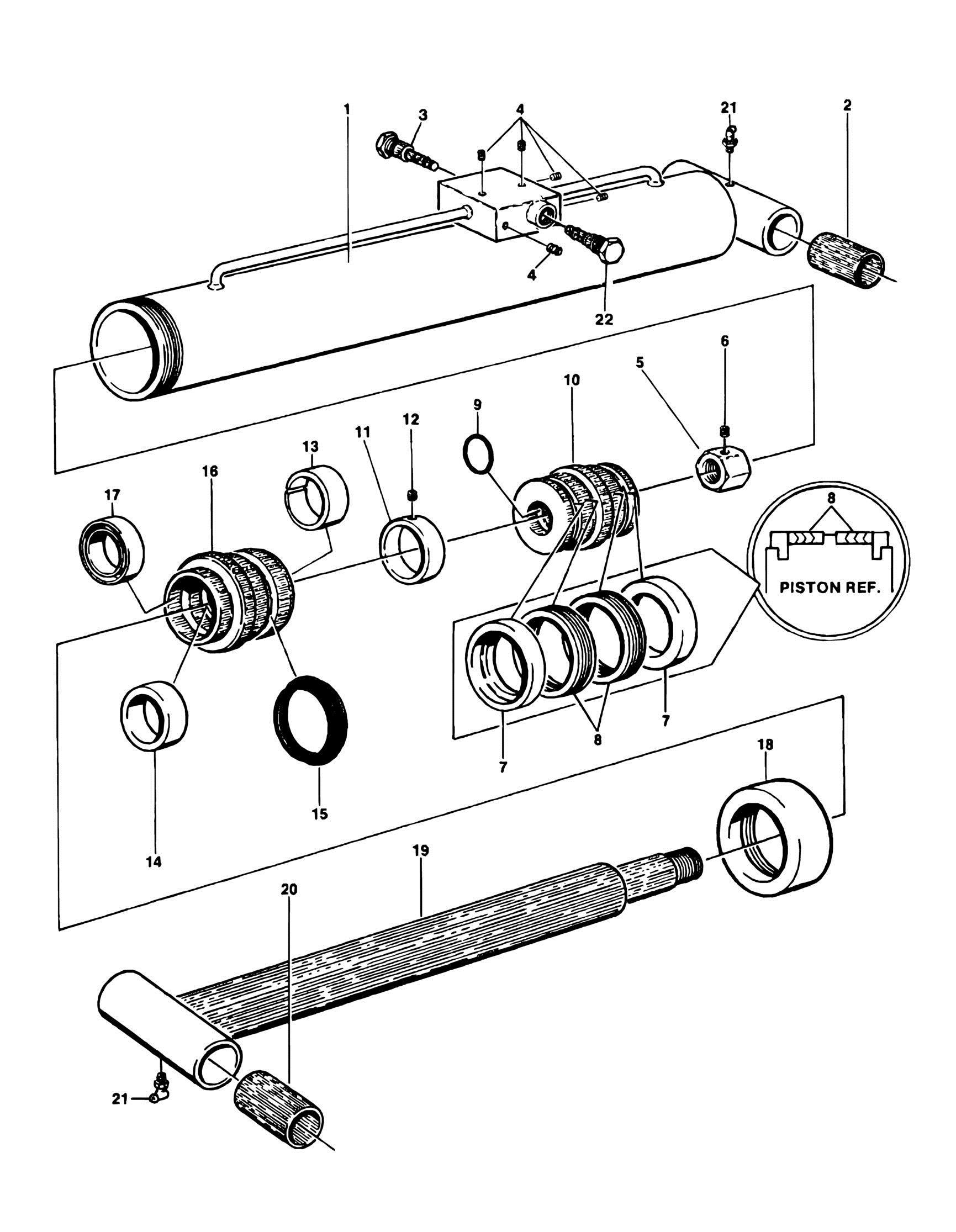

FIGURE 5-2. LEVEL CYLINDER ASSEMBLY (TOWER BOOM

FIGURE 5-2. LEVEL CYLINDER ASSEMBLY (TOWER BOOM)

FIGURE 5-2. LEVEL CYLINDER ASSEMBLY (TOWER BOOM)

ITEM PART NUMBER QTY

DESCRIPTION

1681962 Ref LEVEL CYLINDER ASSEMBLY (TOWER BOOM) 1 1681962 1 Barrel Assembly 2 0960946 2 Bushing, Bronze 3 4640509 1 Valve 3 2900792 1 Seal Kit - 4640509 Valve 4 2200202 2 Plug 1/4in 4 2200201 4 Plug 1/8in 4 0100020 AR Sealant 5 3300281 1 Nut, Hex 5 0100011 AR Loctite #242 5 0100038 AR Primer, Locking 6 3900170 1 Setscrew 3/8in-16NC x 3/8in 6 0100011 AR Loctite 7 Kit 2 Ring, Guidelock 8 Kit 2 Seal 9 Kit 1 O-Ring 10 3480102 1 Piston 11 4563828 1 Spacer 12 3900141 1 Setscrew 1/4in-20NC x 3/8in 12 0100011 AR Loctite 13 Kit 1 Ring, Wear 14 Kit 1 Seal 15 Kit 1 T-Seal 16 1681843 1 Head 17 Kit 1 Ring, Wiper 18 1120336 1 Cap 18 0100011 AR Loctite 19 1681848 1 Rod Assembly 20 0960946 2 Bushing, Bronze 21 2160003 2 Fitting, Grease 22 4640509 1 Valve 22 2900792 1 Seal Kit - 4640509 Valve 2901102 1 Seal Kit (Includes Items 7, 8, 9, 13, 14, 15 & 17)

REV

E
