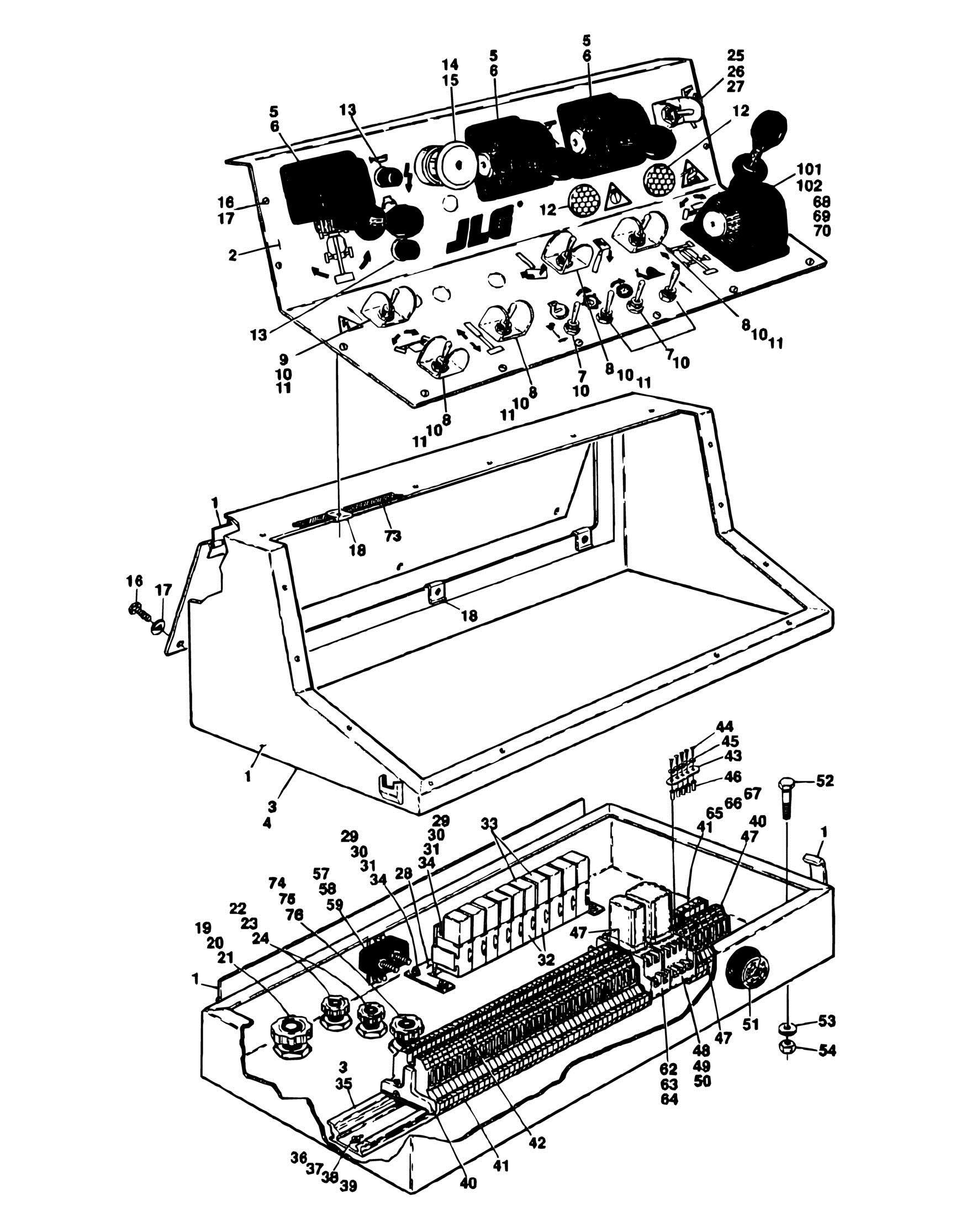

FIGURE 4-6. CONSOLE BOX ASSEMBLY (GAS, DIESEL AND DUAL FUEL MACHINES JANUARY 1993 TO PRESENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONSOLE BOX ASSEMBLY - PQ CONTROLLERS AND
VICKERS VALVE
0860825 Ref 2WS 0860826 Ref 4WS 1 0860739 1 Box Weldment 1 2940052 2 Latch 1 2600132 1 Hinge (Top to Bottom) 1 2600105 1 Hinge (Access Door) 1 3531023 1 Plate, Backing 2 Ref Decal/Lid Plate Options: 2 3252224 1 Lid (International Symbols) (January 1993 to May 1994) 2 3252382 1 Lid (International Symbols) (May 1994 to November 1994) 2 3538392 1 Plate, Lid (November 1994 to Present) 2 1702402 1 Decal, Console (November 1994 to Present) 3 4420008 6 ft/2.5m Tape, Insulation 4 0100001 AR Adhesive 5 1600141 3 Controller Assembly Options (Note: Refer to JLG Manual 3120351 for more information): 5 7011907 3 Electric Assembly 6 2560112 3 Knob 7 4360199 4 Switch, Toggle 8 4360202 4 Switch, Toggle 9 4360200 1 Switch, Toggle 10 3790012 9 O-Ring 11 4060229 5 Shield 12 2920015 2 Lamp 12 2920029 2 Bulb 13 4360274 2 Switch, Push Button 14 4360289 1 Switch, Emergency Stop 14 7012611 1 Head, Mushroom 14 7012612 1 Boot 15 4360282 1 Block, Contact 16 0751006 21 Screw, Pan Head #10-24NC x 3/4in 17 4740120 21 Washer, Nylon 18 3300177 21 Nut, Tinnerman 19 4460386 1 Connector, Strain Relief 20 0960905 1 Bushing, Insulating 21 3300147 1 Nut, Conduit 22 4460052 1 Connector 23 0960239 1 Bushing, Insulating 24 3300047 1 Nut, Conduit 25 4360202 1 Switch, Toggle 26 3790012 1 O-Ring 27 4060229 1 Shield 28 0901796 1 Bracket 29 4751000 8 Flatwasher #10 30 4761000 8 Lockwasher #10 31 3311001 8 Nut #10-24NC 32 3740085 AR Socket, Micro Switch
REV
B B
ITEM PART NUMBER QTY DESCRIPTION
33 3740086 AR Relay, Micro Switch 34 3911012 8 Screw #10-24NC x 3/4in 35 3640752 1 Track 36 3910608 2 Screw, Round Head #6-32NC x 1/2in 37 4750600 2 Flatwasher #6 38 4760600 2 Lockwasher #6 39 3310601 2 Nut #6-32NC 40 4460299 2 Stop, Terminal Strip 41 4460298 54 Block, Terminal 42 4460301 1 Strip, Marking 43 4460311 2 Bar, Buss 44 4460305 10 Screw, Terminal Block 45 4460306 10 Washer, Terminal Block 46 4460307 10 Sleeve, Terminal Block 47 4460300 3 Barrier, Terminal 48 4120013 1 Socket, Relay 49 3740058 1 Relay 50 3740063 1 Spring, Relay 51 0140019 1 Alarm 52 0641508 4 Bolt 5/16in-18NC x 1in 53 4751500 8 Flatwasher 5/16in 54 3311505 4 Locknut 5/16in-18NC 56 3560034 8 Plug, Hole (Not Shown) 57 4761000 1 Lockwasher #10 58 3311001 1 Nut #10-24NC 59 4360232 1 Breaker, Circuit - 15Amp 62 4120012 1 Socket, Relay 63 3740057 1 Relay 64 3740066 1 Spring, Relay 65 4460404 10 Strip, Terminal #8 66 4460405 32 Strip, Terminal #9 67 4460423 2 Strip, Terminal #7 68 0720803 16 Screw, Machines #8-32NC x 3/8in 69 4750800 16 Flatwasher #8 70 4760800 16 Lockwasher #8 73 4420037 14 ft/4m Tape, Insulation 74 4460071 1 Connector, Strain Relief 75 3300048 1 Locknut, Conduit 76 0960238 1 Bushing 101 Ref Controller Options: 101 1600141 1 2WS Controller 101 7011907 1 Electric Assembly 101 1600140 1 4WS Controller 101 7011907 1 Electrical Assembly 102 Ref Knob Options: 102 2560112 1 2WS 102 Not Required 0 4WS Ref OPTIONAL COMPONENTS (NOT SHOWN) 4360200 1 Switch, Toggle (Glow Plugs - Diesel Machines Option) 4360199 1 Switch, Toggle (Worklights Option)
