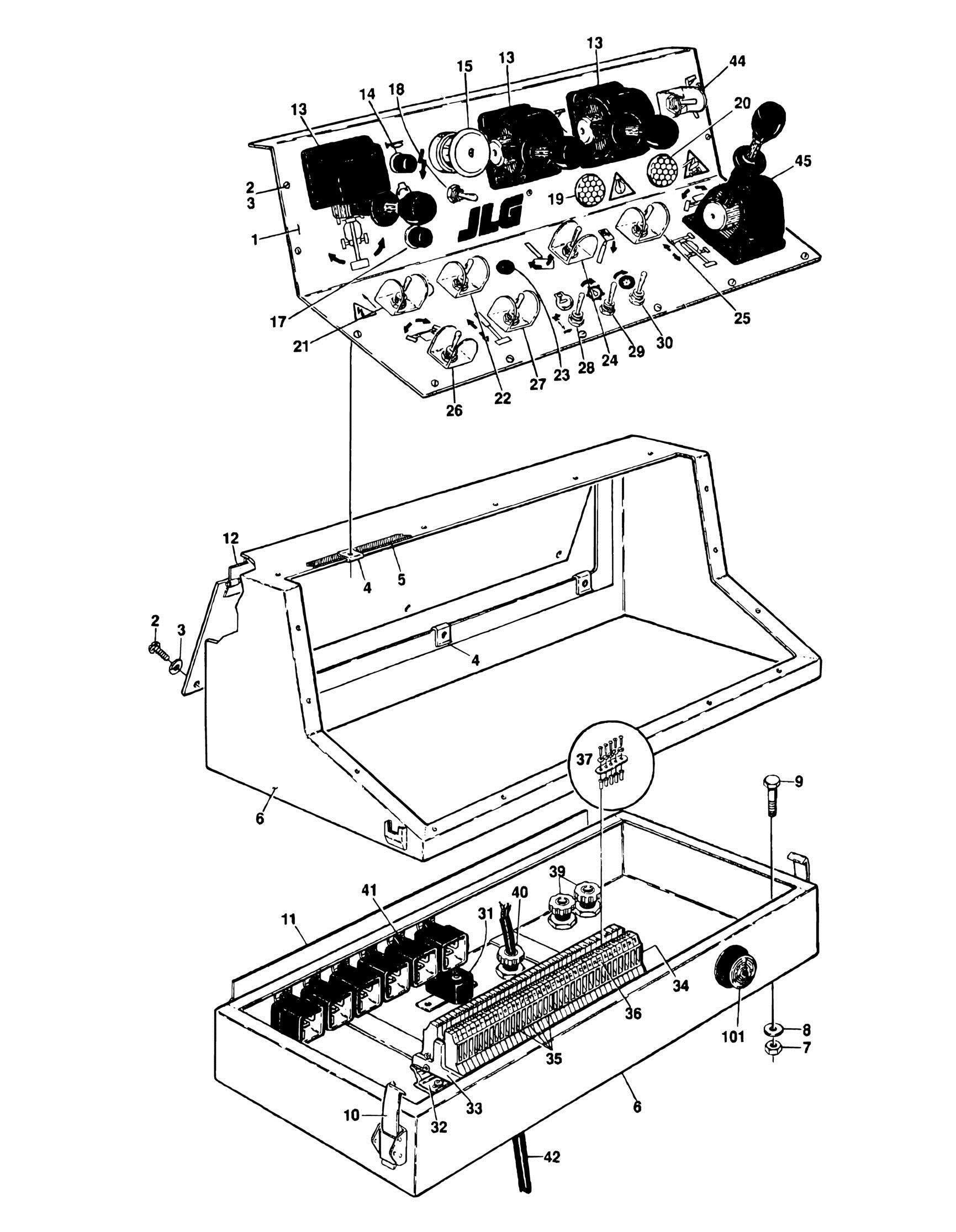

FIGURE 4-5. CONSOLE BOX ASSEMBLY (GAS, DIESEL AND DUAL FUEL MACHINES PRIOR TO JANUARY 1993
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONSOLE BOX ASSEMBLY - PQ CONTROLLERS AND
VICKERS VALVES (GAS, DIESEL AND DUAL FUEL MACHINES PRIOR TO JANUARY 1993)
0860686 Ref 2WS 0860706 Ref 4WS 1 3252043 1 Lid (International Symbols) 2 0751006 18 Screw, Pan Head #10-24NC x 3/4in 3 4740120 18 Washer, Nylon 4 3300177 18 Nut, Tinnerman 5 4420038 3 1/4 ft Tape, Insulation 5 0100001 AR Adhesive 6 0860538 1 Box, Control Includes Items 10-12 7 3311505 AR Nut 5/16in-18NC 8 4751500 8 Flatwasher 5/16in 9 4320002 AR Stud, Mounting 9 0641508 AR Bolt 5/16in-18NC x 1in 10 2940052 2 Latch 11 2600132 1 Hinge (Top to Bottom) 12 2600105 1 Hinge (Access Door) 13 1600094 3 Controller, PQ (Note: Refer to JLG Manual 3120351 for more information) 13 7003737 3 Electrical Assembly 14 4360274 1 Switch, Push Button (Horn) 14 3790015 1 O-Ring 15 4360132 1 Switch, Push-Pull (Emergency Stop) 15 4360131 1 Lens, Red Switch (Emergency Stop) 15 4360108 1 Block, Contact 17 4360274 1 Switch, Push Button (Start) 17 3790015 1 O-Ring 18 4360200 1 Switch, Toggle (Glow Plugs - Optional) 18 3790012 1 O-Ring 18 3521872 1 Nameplate - Glow Plug (Optional) 19 2920015 1 Lamp (Engine Distress) 19 2920029 1 Bulb 20 2920015 1 Lamp (Chassis Out of Level) 20 2920029 1 Bulb 21 4360200 1 Switch, Toggle (Auxiliary Power) 21 4060229 1 Shield 21 3790012 1 O-Ring 22 4360199 1 Switch, Toggle (Lights - Optional) 22 3790012 1 O-Ring 23 3520028 1 Plug, Hole 24 4360202 1 Switch, Toggle (Rotate) 24 4060229 1 Shield 24 3790012 1 O-Ring 25 4360202 1 Switch, Toggle (Level) 25 4060229 1 Shield 25 3790012 1 O-Ring 26 4360202 1 Switch, Toggle (Steer)
REV
G D
ITEM PART NUMBER QTY DESCRIPTION
26 4060229 1 Shield 26 3790012 1 O-Ring 27 4360202 1 Switch, Toggle (Main Tele) 27 4060229 1 Shield 27 3790012 1 O-Ring 28 4360199 1 Switch, Toggle (Engine Speed) 28 3790012 1 O-Ring 29 4360199 1 Switch, Toggle (Pump Volume) 29 3790012 1 O-Ring 30 4360199 1 Switch, Toggle (Wheel Motor Speed) 30 3790012 1 O-Ring 31 4360209 1 Breaker, Circuit - 20 Amp 31 3910608 1 Screw #6-32NC x 1/2in 31 4750600 1 Flatwasher #6 31 4760600 1 Lockwasher #6 31 3310601 1 Nut #6-32NC 32 3640500 1 Rail, Mounting 32 3910608 2 Screw, Round Head #6-32NC x 1/2in 32 4750600 2 Flatwasher #6 32 4760600 2 Lockwasher #6 32 3310601 2 Nut #6-32NC 33 4460299 2 Stop, Terminal Strip 34 4460300 1 Barrier, Terminal End 35 4460298 42 Block, Terminal 36 4460301 1 Strip, Marking 37 4460311 1 Bar, Buss 37 4460305 3 Screw, Terminal Block 37 4460306 3 Washer, Terminal Block 37 4460307 3 Sleeve, Terminal Block 39 4460244 2 Connector 39 0960238 2 Bushing 39 3300048 2 Nut 40 4460071 1 Connector 40 0960238 1 Bushing 40 3300048 1 Nut 41 3740049 AR Relay - SPDT 41 3311001 AR Nut #10-24NC 41 4761000 AR Lockwasher #10 42 1060309 8 ft Cable, Control 12/4 (To Footswitch) 44 4360202 1 Switch, Toggle (Tower Tele) 44 4060229 1 Shield 44 3790012 1 O-Ring 45 Ref Controller, PQ - Drive Options: 45 1600094 1 2WS Machines Controller, PQ (Note: Refer to JLG Manual 3120351 for more information) 45 7003737 1 Electrical Assembly - 1600094 Controller 45 1600134 1 4WS Machines Controller, PQ (Note: Refer to JLG Manual 3120351 for more information) 45 7003796 1 Electrical Assembly - 1600134 Controller 0253077 Ref TILT ALARM INSTALLATION 101 0140026 1 Alarm
