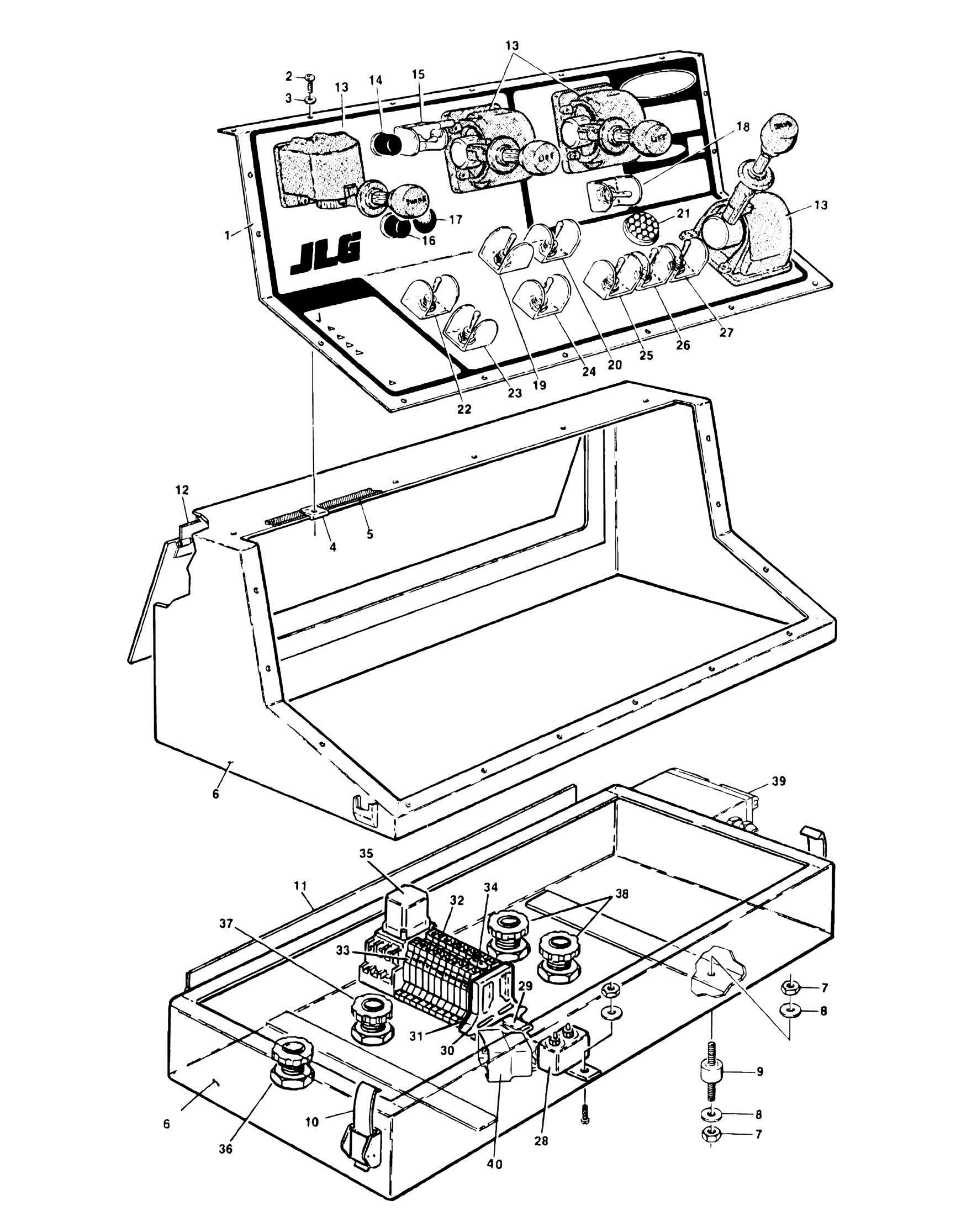

FIGURE 4-4. CONSOLE BOX ASSEMBLY (ELECTRIC MACHINES

FIGURE 4-4. CONSOLE BOX ASSEMBLY (ELECTRIC MACHINES)

FIGURE 4-4. CONSOLE BOX ASSEMBLY (ELECTRIC MACHINES)

ITEM PART NUMBER QTY

DESCRIPTION

Ref CONSOLE BOX ASSEMBLY - PQ CONTROLLERS AND

VICKERS VALVES

0250607 Ref All Electric Machines Built To Present 0254439 Ref Receptacle Installation 1 Ref Lid Options: 1 3251894 1 Lid (Prior to May 1994) 1 3252392 1 Lid (May 1994 to Present) 2 0751006 18 Screw, Pan Head #10-24NC x 3/4in 3 4740120 18 Washer, Nylon 4 3300177 18 Nut, Tinnerman 5 4420038 3 1/4 ft Tape, Insulation 5 0100001 AR Adhesive 6 0860538 1 Box, Control Includes Items 10-12 7 3311505 AR Nut 5/16in-18NC 8 4751500 8 Flatwasher 5/16in 9 4320002 AR Stud, Mounting 9 0641508 AR Bolt 5/16in-18NC x 1in 10 2940052 2 Latch 11 2600132 1 Hinge (Top to Bottom) 12 2600105 1 Hinge (Access Door) 13 1600094 4 Controller, PQ (Note: Refer to JLG Manual 3120351 for more information) 13 7003737 4 Electrical Assembly 14 4360274 1 Switch, Push Button (Horn) 14 3790015 1 O-Ring 15 4360199 1 Switch, Toggle (Ignition) 15 3790012 1 O-Ring 15 4360141 1 Guard, Switch 16 4360274 1 Switch, Push Button (Start) (Gas, Diesel and Dual Fuel Only) 16 3790015 1 O-Ring 16 3520026 1 Plug, Hole (Electric) 17 3520026 1 Plug, Hole 18 4360202 1 Switch, Toggle (Tower Tele) 18 4060229 1 Shield 18 3790012 1 O-Ring 19 4360202 1 Switch, Toggle (Rotate) 19 4060229 1 Shield 19 3790012 1 O-Ring 20 4360202 1 Switch, Toggle (Level) 20 4060229 1 Shield 20 3790012 1 O-Ring 21 2920015 1 Lamp (Chassis Out of Level) 22 Ref Switch, Toggle Options (Auxiliary Power): 22 4360200 1 Switch, Toggle (Prior to October 1991) 22 4360229 1 Switch, Toggle (October 1991 to Present) 22 4060229 1 Shield 22 3790012 1 O-Ring 23 4360202 1 Switch, Toggle (Steer) 23 4060229 1 Shield 23 3790012 1 O-Ring

REV

E 2

ITEM PART NUMBER QTY DESCRIPTION REV

24 4360202 1 Switch, Toggle (Main Tele) 24 4060229 1 Shield 24 3790012 1 O-Ring 25 4360199 1 Switch, Toggle (High Engine) (Gas, Diesel and Dual Fuel Only) 25 3790012 1 O-Ring 26 4360199 1 Switch, Toggle (Pump Volume) 26 3790012 1 O-Ring 27 4360199 1 Switch, Toggle (Wheel Motor Speed) 27 3790012 1 O-Ring 28 4360209 1 Breaker, Circuit - 20 Amp 28 3910608 1 Screw #6-32NC x 1/2in 28 4750600 1 Flatwasher #6 28 4760600 1 Lockwasher #6 28 3310601 1 Nut #6-32NC 29 3640555 1 Rail, Mounting 29 3910608 2 Screw, Round Head #6-32NC x 1/2in 29 4750600 2 Flatwasher #6 29 4760600 2 Lockwasher #6 29 3310601 2 Nut #6-32NC 30 4460299 2 Stop, Terminal Strip 31 4460300 1 Barrier, Terminal End 32 4460298 10 Block, Terminal 33 4460301 1 Strip, Marking 34 4460309 1 Bar, Buss 34 4460305 3 Screw, Terminal Block 34 4460306 3 Washer, Terminal Block 34 4460307 3 Sleeve, Terminal Block 35 3440058 1 Relay 35 4120013 1 Socket, Relay 35 3740063 1 Spring 36 4460052 1 Connector 36 0960239 1 Bushing 36 3300047 1 Nut 37 4460051 1 Connector 37 0960238 1 Bushing 37 3300048 1 Nut 38 4460052 2 Connector 38 0960238 2 Bushing 38 3300048 2 Nut 39 0860038 1 Box, Receptacle 39 Not Available 1 Receptacle 39 3900294 4 Screw, Self-Tapping #10-16NC x 1in 39 4761000 4 Lockwasher #10 39 Not Available 1 Shield, Weatherproof 39 1060514 70 ft/21.3m Cable, Electric - 12/3 (Was p/n 1060268) 40 3740049 1 Relay - SPDT 40 1060309 8 ft Cable, Control 12/4 (To Footswitch) 1281056 Ref OPTIONAL LIGHTS SWITCH INSTALLATION (NOT SHOWN) C 4360199 1 Switch, Toggle (Located on Front of Item 6)
