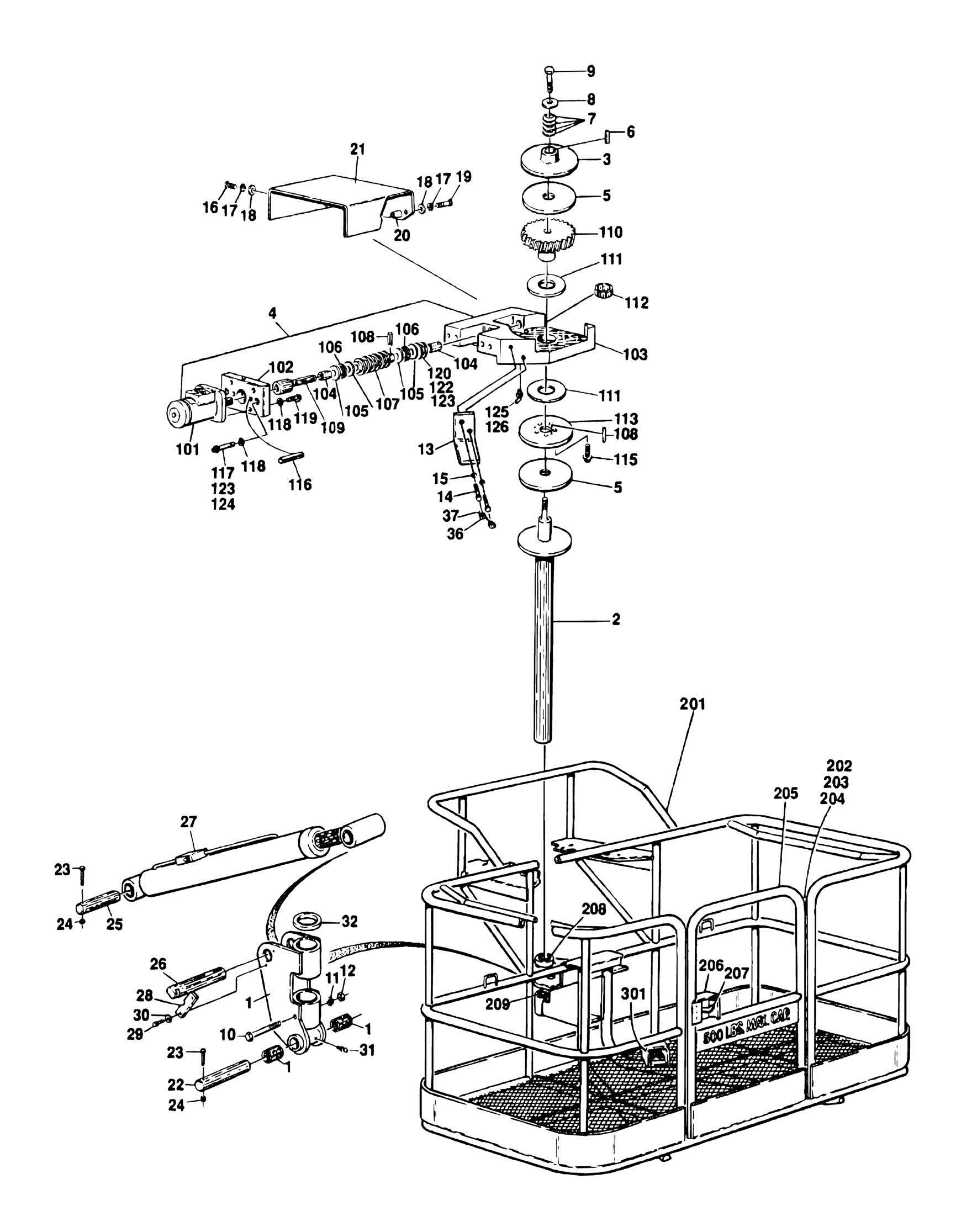

FIGURE 4-2. LOW MOUNT PLATFORM AND FOOTSWITCH INSTALLATIONS
ITEM PART NUMBER QTY
DESCRIPTION
Ref SUPPORT INSTALLATION 0250593 Ref With Rotating Platform 0251252 Ref With Fixed Platform (Not Shown) 1 0238540 1 Pivot Attach Weldment 1 0961257 2 Bushing, Bronze 2 Ref Shaft Weldment Options: 2 4040215 1 With Rotating Platform 2 4564579 1 With Fixed Platform 3 1120299 1 Cap (Rotating Platform Only) 4 0235238 1 Rotator Assembly (See Item 101-126 for Breakdown) (Rotating Platform Only) 5 3340454 2 Pad, Brake (Rotating Platform Only) 6 2880404 1 Key (Rotating Platform Only) 7 4160026 8 Washer, Belleville (Rotating Platform Only) 8 4752000 1 Flatwasher 5/8in (Rotating Platform Only) 9 0652014 1 Bolt 5/8in-18NF x 1 3/4in (Rotating Platform Only) 10 0641836 1 Bolt 1/2in-13NC x 4 1/2in 11 4751800 3 Flatwasher 1/2in 12 3311805 1 Locknut 1/2in-13NC 13 0901756 1 Bracket (Rotating Platform Only) 14 0641811 2 Bolt 1/2in-13NC x 1 3/8in (Rotating Platform Only) 15 4761800 2 Lockwasher 1/2in (Rotating Platform Only) 16 0641404 1 Bolt 1/4in-20NC x 1/2in (Rotating Platform Only) 17 4761400 2 Lockwasher 1/4in (Rotating Platform Only) 18 4751400 2 Flatwasher 1/4in (Rotating Platform Only) 19 0641408 1 Bolt 1/4in-20NC x 1in (Rotating Platform Only) 20 4562083 1 Tube, Spacer (Rotating Platform Only) 21 1670630 1 Cover (Rotating Platform Only) 22 3421490 1 Pin, Nose 23 0641522 2 Bolt 5/16in-18NC x 2 3/4in 24 3311505 2 Locknut 5/16in-18NC 25 3421491 1 Pin, Attach (Lower) 26 3421494 1 Pin, Attach (Upper) 27 Ref Platform Level Cylinder Assy (See CYLINDER SECTION for Breakdown) 27 1682178 1 Platform Level Cylinder Assy (Prior to October 1992) 27 1682793 1 Platform Level Cylinder Assy (October 1992 to SN 33104) (TUV Style) 27 1683526 1 Platform Level Cylinder Assy (TUV Style) (SN 33105 to
Present)
28 3532054 1 Plate, Retainer 29 0641506 2 Bolt 5/16in-18NC x 3/4in 30 4761500 2 Lockwasher 5/16in 31 2160002 3 Fitting, Grease 32 4740158 1 Washer, Thrust 33 4220137 2 Bar, Stop (Fixed Platform Only) 34 1320160 1 Clamp (Fixed Platform Only) (Not Shown) 35 3520035 1 Plug (Fixed Platform Only) 36 1380137 1 Clip Retainer (Rotating Platform Only) 37 4920986 1 ft/.3m Wire, Mechanics (Rotating Platform Only)
REV
9 B
ITEM PART NUMBER QTY
0235238 Ref ROTATOR ASSEMBLY:
DESCRIPTION
Ref Note: For Machines Built Prior to September 1991 refer to
Service Information Bulletin #91-5 for required upgrade.
101 3160083 1 Rotator Motor Assy (See ROTATOR MOTOR ASSEMBLY for Breakdown) 102 0080099 1 Adapter, Motor 103 2760064 1 Housing, Gear 104 0440134 2 Bearing, Sleeve 105 4740199 4 Washer, Thrust 106 0440120 2 Bearing, Thrust 107 2440043 1 Gear, Worm 108 3440816 4 Rollpin 1/4in x 1in 109 0080098 1 Adapter, Motor to Worm Gear 110 2440044 1 Gear, Worm 111 4740256 2 Washer, Thrust 112 0440135 1 Bearing, Sleeve 113 1760068 1 Disc, Brake 115 3931010 5 Bolt, Socket Head #10-24NC x 5/8in 116 3441228 2 Rollpin 3/8in x 1 3/4in 117 3931620 2 Bolt, Socket Head 3/8in-16NC x 1 1/4in 118 4761600 6 Lockwasher 3/8in 119 3931612 4 Bolt, Socket Head 3/8in-16NC x 3/4in 120 4070585 AR Shim .010 121 4070586 AR Shim .005 122 4070587 AR Shim .002 123 0100019 AR Loctite #271 124 0100021 AR Primer 125 2160001 1 Fitting, Grease - 90 126 3020025 AR Grease Ref PLATFORM WELDMENTS Ref Note: Replacement Decals Must Be Ordered Separately - See
DECALS SECTION.
201 Ref Low Mount Platform Options: 201 3510376 1 76cm x 122cm Platform 201 3510377 1 76cm x 152.4cm Platform 201 3510378 1 76cm x 183cm Platform Ref Standard Platform Components 202 2600143 2 Pin, Hinge 203 3311805 2 Locknut 1/2in-13NC 204 2160006 2 Fitting, Grease 205 1780254 1 Door Weldment 206 2940006 1 Latch, Door 207 2560010 1 Handle 208 0961450 1 Bushing, Bronze (Top) 209 0961259 1 Bushing, Bronze (Bottom) 0237963 Ref FOOTSWITCH INSTALLATION 301 0641408 3 Bolt 1/4in-20NC x 1in 301 3311405 3 Locknut 1/4in-20NC 301 4740362 3 Washer, Fender 1/4in 301 4360031 1 Footswitch 301 7000625 2 Block, Contact 301 4460071 1 Connector, Strain Relief
REV
E
F
