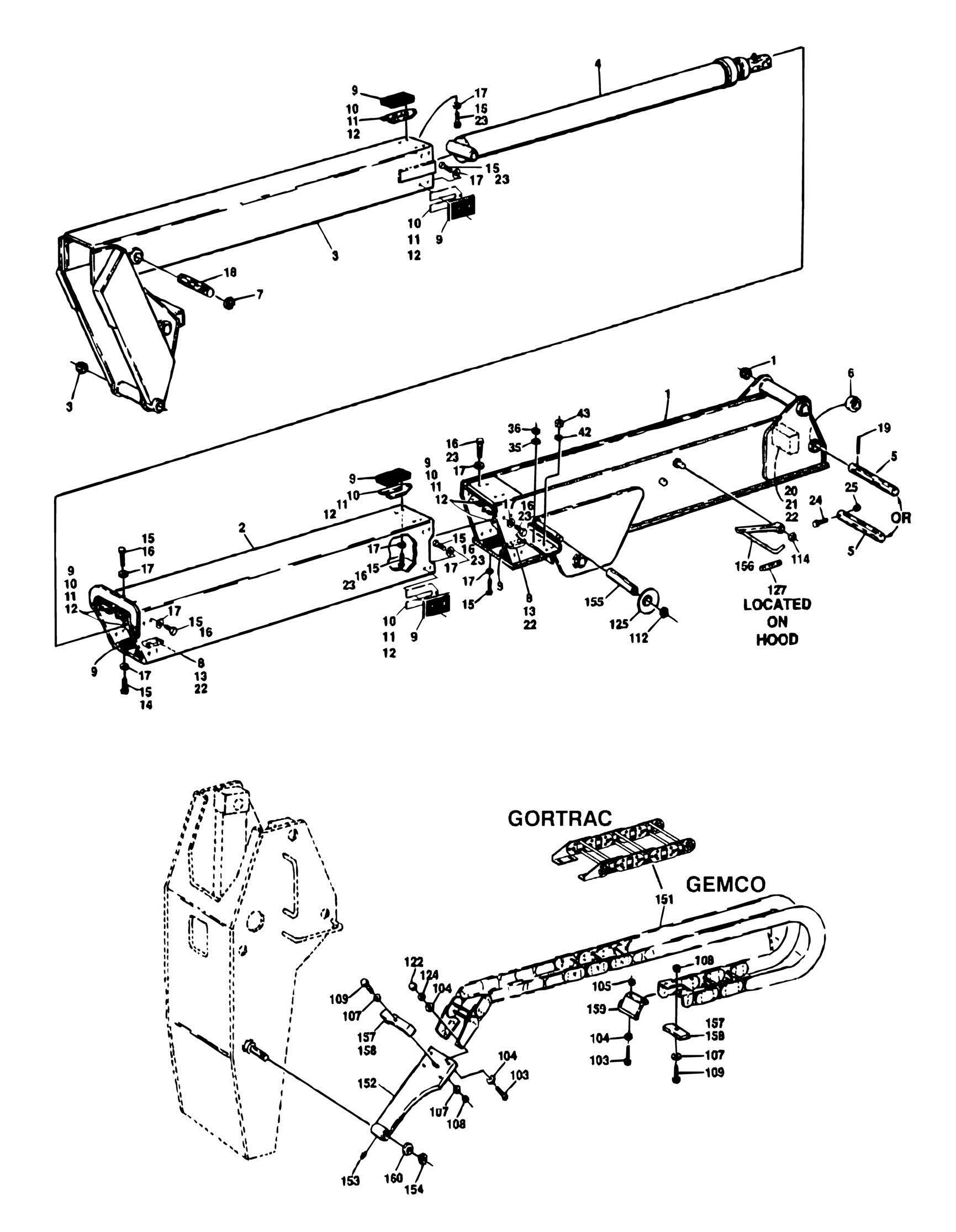

FIGURE 3-3. TOWER BOOM ASSEMBLIES
FIGURE 3-3. TOWER BOOM ASSEMBLIES
FIGURE 3-3. TOWER BOOM ASSEMBLIES
ITEM PART NUMBER QTY
DESCRIPTION
0800567 Ref TOWER BOOM ASSEMBLY 1 0800566 1 Base Weldment 1 0961029 2 Bushing, Bronze 2 0800532 1 Mid Weldment 3 0800701 1 Fly Weldment 3 0961029 2 Bushing, Bronze 4 1681980 1 Telescope Cylinder Assembly (See CYLINDER SECTION for Breakdown) 5 3421991 1 Pin, Attach (Lower) 6 0961268 2 Bushing, Spacer 7 3760255 2 Ring, Retaining 8 3531908 2 Plate, Stop 9 3340550 32 Pad, Wear 10 4070670 AR Shim 1/32in 11 4070854 AR Shim 5/64in 12 4070855 AR Shim 1/8in 13 0641807 4 Bolt 1/2in-13NC x 7/8in 14 0100019 AR Loctite #271 (Not Shown) 15 0641607 32 Bolt 3/8in-16NC x 7/8in 16 0641608 16 Bolt 3/8in-16NC x 1in 17 4761600 64 Lockwasher 3/8in 18 3421992 1 Pin, Attach (Upper) 19 3421475 1 Pin, Grooved (Machines Built Prior to October 1991) 20 0361645 1 Bar, Stop 21 0641812 2 Bolt 1/2in-13NC x 1 1/2in 22 4761800 6 Lockwasher 1/2in 23 0641609 16 Bolt 3/8in-16NC x 1 1/8in 24 0641522 1 Bolt 5/16in-18NC x 2 3/4in (Machines Built October 1991 to Present) 25 3311505 1 Locknut 5/16in-18NC (Machines Built October 1991 to Present) 0251524 Ref LOWER CARRIER INSTALLATION 103 0641408 4 Bolt 1/4in-20NC x 1in 104 4751400 16 Flatwasher 1/4in 105 3311405 4 Locknut 1/4in-20NC 107 4751600 6 Flatwasher 3/8in 108 3311605 4 Locknut 3/8in-16NC 109 0641616 2 Bolt 3/8in-16NC x 2in 112 3760254 1 Ring, Retainer 114 3300246 1 Nut, Push 1/2in 122 3300151 4 Nut, Acorn 1/4in-20NC 123 0630407 4 Screw, Cap Button 1/4in-20NC x 5/8in 124 4761400 4 Lockwasher 1/4in 125 1760131 1 Disc 126 0741408 2 Screw, Machine 1/4in-20NC x 1in 151 Ref Carrier Options: Ref Note: Original Equipment Power Track may have been
replaced with a Service Replacement. Visually identify the power track before ordering parts.
151 Ref Power Track Repair Components 151 1180178 1 Gemco Replacement Parts
REV
F
B
ITEM PART NUMBER QTY
DESCRIPTION
151 7006139 AR Powertrack - One Foot Section 151 7006151 2 Pair Mounting Feet 151 7006152 AR Pin Kit (Includes 1 pin, 1 Retaining Ring & 4 Washers) 151 1001119694 1 Gortrac Replacement Parts 151 70003151 AR Powertrack - 1 Section Repair Kit 151 70003152 2 Pair Power Track - Bracket Kit 152 4843803 1 Plate, Mounting 153 2160006 1 Fitting, Grease 154 3760140 1 Ring, Retaining 155 4564034 1 Roller, Tube 156 4843071 1 Bracket 157 1320152 2 Hose, Clamp 158 2820031 18 in/46cm Shrink, Heat 159 4843075 1 Shield, Hose 160 4740067 1 Washer, Thrust
