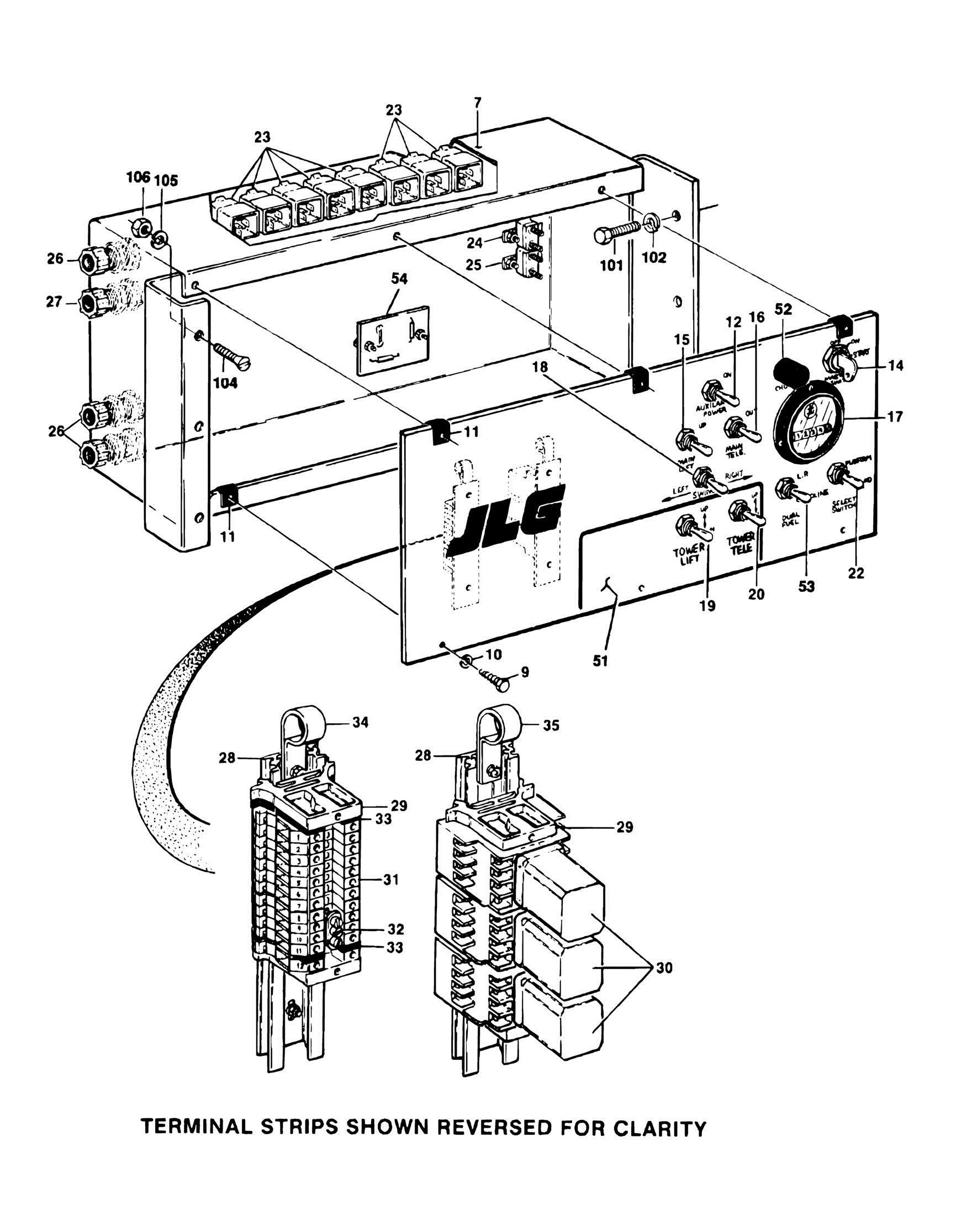

FIGURE 2-25. GROUND CONTROL BOX INSTALLATION (ELECTRIC MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
Ref GROUND CONTROL BOX ASSEMBLY 0250610 Ref Electric Machines 7 4842906 1 Control Box Weldment 9 0750806 2 Screw, Self-Tapping #8 x 3/4in 10 4760800 2 Lockwasher #8 11 3300177 2 Nut, Tinnerman 12 4360200 1 Switch, Toggle (Auxiliary Power) 14 4360003 1 Switch, Key (Master Switch) 14 2860002 1 Key, Replacement 15 4360202 1 Switch, Toggle (Main Lift) 16 4360202 1 Switch, Toggle (Main Tele) 17 2420009 1 Hourmeter 18 4360202 1 Switch, Toggle (Swing) 19 4360202 1 Switch, Toggle (Tower Lift) 20 4360202 1 Switch, Toggle (Tower Tele) 22 4360201 1 Switch, Toggle (Select Switch) 23 3740049 AR Relay - SPDT 23 3311001 1 Nut #10-24NC 23 4761000 1 Lockwasher #10 24 4360216 1 Switch, Circuit Breaker - 30 Amp 24 3311001 1 Nut #10-24NC 24 4761000 1 Lockwasher #10 25 4360232 1 Switch, Circuit Breaker - 15 Amp 25 3311001 1 Nut #10-24NC 25 4761000 1 Lockwasher #10 26 4460051 1 Connector, Strain Relief 26 0960238 1 Bushing 26 3300048 1 Nut, Conduit 27 4460071 1 Connector, Strain Relief 27 0960238 1 Bushing 27 3300048 1 Nut, Conduit 28 3640555 2 Rail 28 3910606 2 Screw #6-32NC x 3/8in 28 4750600 2 Flatwasher #6 28 4760600 2 Lockwasher #6 28 3310601 2 Nut #6-32NC 29 4460299 2 Stop, Terminal 30 3740058 AR Relay - 4PDT 30 4120013 AR Base, Relay 30 3740063 AR Spring 31 4460298 12 Block, Terminal 31 4460301 1 Marker, Terminal 32 4460309 1 Bar, Buss (3 Position) 32 4460305 3 Screw 32 4460306 3 Washer 32 4460307 3 Sleeve 33 4460300 2 Barrier, Terminal 34 1320044 1 Clamp 35 1320130 1 Clamp 51 Not Available 1 Panel, Front
REV
B
ITEM PART NUMBER QTY
DESCRIPTION
52 4360274 1 Switch, Push Button (Run) 53 3520028 1 Plug, Hole Ref GROUND CONTROL BOX INSTALLATION 0250608 Ref Electric Machines 101 0641406 3 Bolt 1/4in-20NC x 3/4in 102 4711400 3 Flatwasher 1/4in Narrow 104 0741405 3 Screw, Countersunk 1/4in-20NC x 5/8in 105 4761400 3 Lockwasher 1/4in 106 3311001 3 Nut 1/4in-20NC
