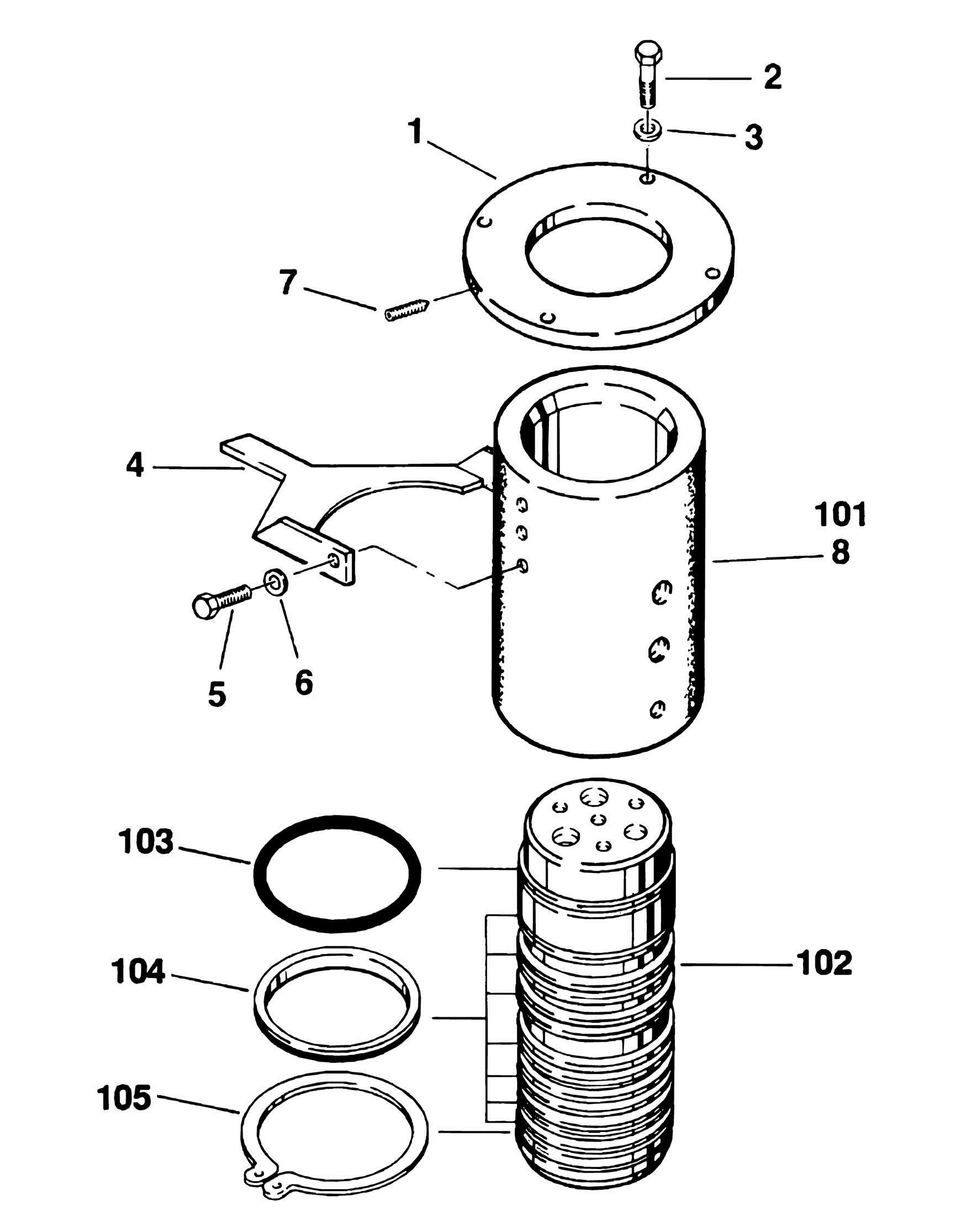

FIGURE 2-22. ROTARY OIL COUPLING INSTALLATION

FIGURE 2-22. ROTARY OIL COUPLING INSTALLATION

FIGURE 2-22. ROTARY OIL COUPLING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

0238615 Ref ROTARY OIL COUPLING INSTALLATION 1 1440154 1 Collar 2 0641512 4 Bolt 5/16in-18NC x 1 1/2in 3 4761500 4 Lockwasher 5/16in 4 3530403 1 Plate, Retaining 5 0641807 2 Bolt 1/2in-13NC x 7/8in 6 4761800 2 Lockwasher 1/2in 6 0100003 AR Loctite TL277-41 7 3951820 2 Setscrew 1/2in-13NC x 7/8in 7 0100011 AR Loctite #242 8 1660160 1 Coupling Assembly (Includes Items 101-105) 1660160 Ref COUPLING ASSEMBLY 101 2760091 1 Housing, Swivel 102 0620058 1 Body, Swivel 103 Kit 7 O-Ring 104 Kit 1 T-Seal 105 3760004 1 Ring, Retaining Ref Seal Kit Options: 2901146 1 1660154, 1660160 & 1660185 Couplings (Includes Items 103 & 105)

REV

A

A

1660213EX 1 1660213 Couplings (was p/n 7013175) Ref Note: Due to complexity of repair, seal kit no longer available. Use rebuilt unit as replacement.
