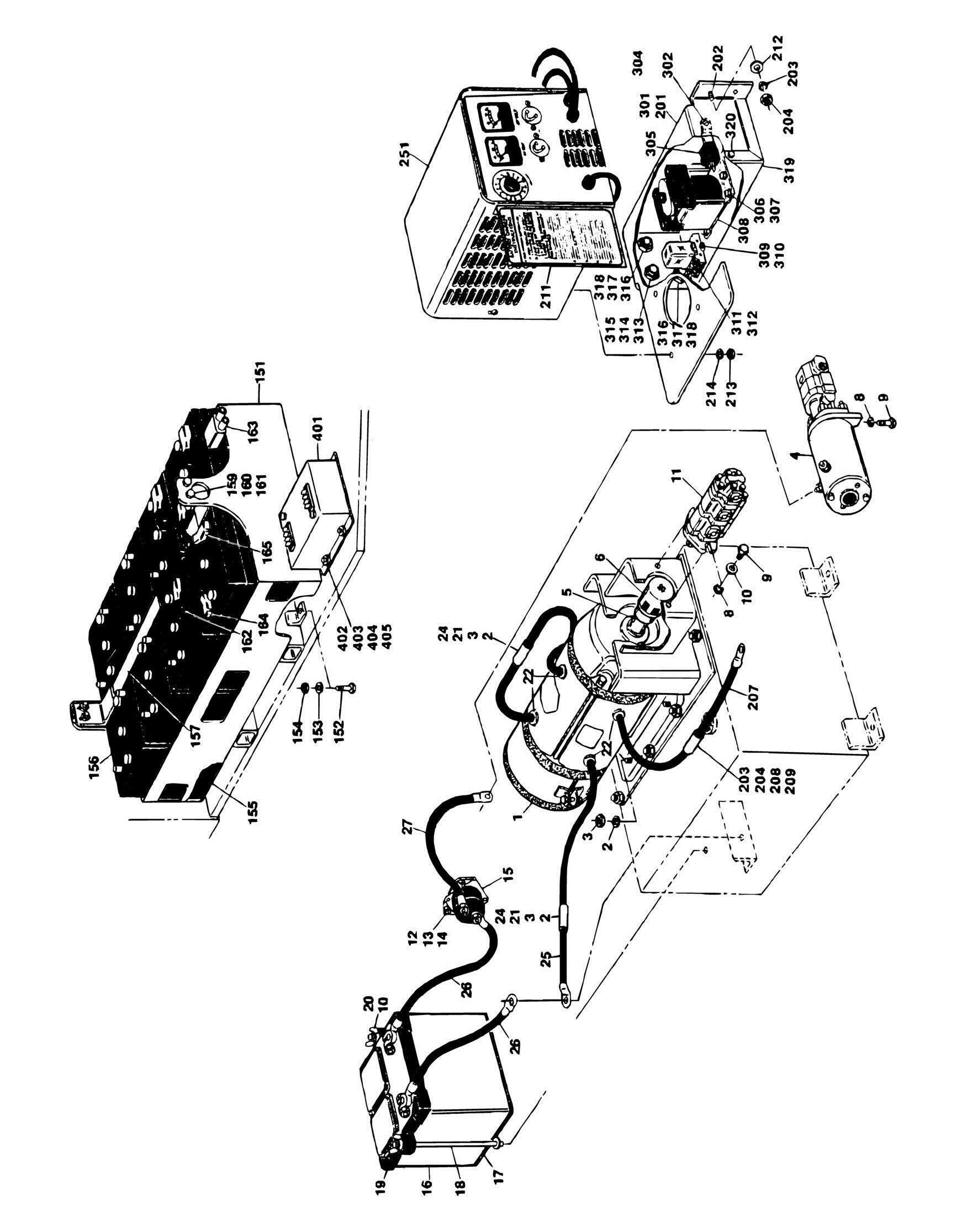

FIGURE 2-18. ELECTRIC POWERED MACHINES COMPONENTS INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
Ref Note: See SPECIAL OPTIONS SECTION for U/L and 440VAC
Machines.
0258465 Ref MOTOR AND PUMP INSTALLATION (STANDARD PARTS) G 1 Ref Motor, Electric Options: 1 3160145 1 Flex Coupling Mount (Used Prior to November 1989) 1 3160153 1 Direct Mount (Used November 1989 to Present) 1 7012588 8 Brush (3160153 Motor) 1 7012589 8 Spring (3160153 Motor) 2 4761500 6 Lockwasher 5/16in 3 3311501 6 Nut 5/16in-18NC 4 Ref Auxiliary Pump Assembly (Vendors Vary): 4 3600050 1 John S. Barnes Version: 4 7004248 1 Motor 4 7004249 1 Coupling 4 7010923 1 Pump 4 3600050 1 Stone Industries Version: 4 7000482 1 Motor 4 7004412 1 Coupling 4 7004414 1 Pump 4 3600208 1 Fenner Fluid Power Version: 4 7013710 1 Motor 4 7013711 1 Coupling 4 7013712 1 Pump 5 2880416 1 Key (Used Prior to November 1989 Only) 6 1660166 1 Coupling, Flex (Used Prior to November 1989 Only) 8 4761600 4 Lockwasher 3/8in 9 0641610 4 Bolt 3/8in-16NC 10 4751600 4 Flatwasher 3/8in 11 Ref Pump Assembly Options: 11 3600142 1 Pump Assembly - Vickers (Not Field Serviceable) 11 2900660 1 Shaft Seal Kit - Vickers 11 3600201 1 Pump Assembly - Barnes (1 each of fittings p/n's 2220376 & 2210014 are required when replacing Vickers Pump with Barnes Pump) (See PUMP ASSEMBLY - BARNES (ELECTRIC POWERED MACHINES) for Breakdown) 12 4300032 2 Stud (Welded on Part) 13 4761400 2 Lockwasher 1/4in 14 3311401 2 Nut 1/4in-20NC 15 3740067 1 Relay 16 0400003 1 Battery 17 3980003 1 Seat, Battery 18 0236768 2 Rod, Hold-down 19 0400002 1 Hold-Down, Battery 19 2910479 1 Replacement Clip Kit for 0400002 20 3300029 2 Wingnut 3/8in-16NC 21 0641504 2 Bolt 5/16in-18NC x 1/2in 22 0100009 AR Silicone RTV 24 2820030 12 in/30cm Tubing, Heat Shrink 25 1060221 1 Cable, Battery (Motor to Ground) 26 1060146 2 Cable, Battery (Negative to Ground and Positive to Relay)
ITEM PART NUMBER QTY
DESCRIPTION
27 1060133 1 Cable, Battery (Relay to Aux Pump) 0238522 Ref BATTERIES INSTALLATION (MACHINES BUILT PRIOR TO
NOVEMBER 1991)
101 Ref Tray Weldment Options: 101 4843427 1 Tray Weldment (January 1990 through November 1991) 101 4842925 1 Tray Weldment (Prior to January 1990) 102 0641612 2 Bolt 3/8in-16NC x 1 1/2in 103 4761600 2 Lockwasher 3/8in 104 3311601 2 Nut 3/8in - 16NC 105 3980003 8 Seat, Battery 106 Ref Battery Options: 106 0400067 8 Battery (Wet) (Standard Equipment) 106 0400113 8 Battery (Dry) (Optional) 107 0236768 3 Rod, Hold-down 108 4740273 3 Washer, Special 109 3300029 3 Wingnut 3/8in-16NC 110 1060084 7 Cable, Battery 111 1060277 1 Cable Assembly 112 0840016 16 Boot, Terminal 113 0100001 AR Adhesive 0252482 Ref BATTERIES INSTALLATION (MACHINES BUILT NOVEMBER
1991 TO PRESENT)
151 4844054 1 Tray Weldment 152 0641612 2 Bolt 3/8in-16NC x 1 1/2in 153 4761600 2 Lockwasher 3/8in 154 3311601 2 Nut 3/8in-16NC 155 3980018 1 Seat, Battery 156 Ref Battery Options: 156 0400055 8 Battery (Wet) (Standard Equipment) 156 0400107 8 Battery (Dry) (Optional) 157 0362075 1 Bar, Tee 158 0181554 2 Angle, Retaining 159 0641408 4 Bolt 1/4in-20NC x 1in 160 3311405 4 Locknut 1/4in-20NC 161 4751400 4 Flatwasher 1/4in 162 1060352 7 Cable, Battery 163 1060277 1 Cable Assembly 164 0840031 8 Boot, Terminal 165 0840032 8 Boot Terminal Ref BATTERY CHARGER INSTALLATION (STANDARD PARTS) 201 0239003 1 Contactor Box Assembly (See Items 301-320 for Breakdown) 202 4300038 4 Stud (Welded on Part) 203 4761500 5 Lockwasher 5/16in 204 3311501 5 Nut 5/16in-18NC 206 1060276 1 Cable Assembly (Contactor to Batteries to Ground) 207 1060197 1 Cable, Battery (Motor to Contactor) 208 0641504 1 Bolt 5/16in-18NC x 1/2in 209 2820030 12 in/30cm Tubing, Heat Shrink 211 3252163 1 Nameplate - Instruction 212 4751500 4 Flatwasher 5/16in 213 3311401 4 Nut 1/4in-20NC
REV
C
ITEM PART NUMBER QTY DESCRIPTION
214 4761400 4 Lockwasher 1/4in Ref BATTERY CHARGER INSTALLATION (Variable parts) 0238619 Ref Battery Charger Installation (Variable Parts) (Prior to
November 1991)
0252481 Ref Battery Charger Installation (Variable Parts) (November 1991
to Present)
251 Ref Battery Charger Assembly Options (See BATTERY CHARGER ASSEMBLY (ELECTRIC POWERED MACHINE) for Breakdown) 251 0400068 1 Battery Charger Assembly (Prior to November 1991) 251 0400077 1 Battery Charger Assembly (November 1991 to Present) 0239003 Ref CONTACTOR BOX ASSEMBLY 301 0901477 1 Bracket 302 3911012 1 Screw, Machine #10-24NC x 3/4in 303 4761000 1 Lockwasher #10 304 3311001 1 Nut #10-24NC 305 3740049 1 Relay 306 0641403 4 Bolt 1/4in-20NC x 3/8in 307 4761400 4 Lockwasher 1/4in 308 3740064 1 Contactor 309 4760600 2 Lockwasher #6 310 3910608 2 Screw, Machine #6-32NC x 1/2in 311 4120002 1 Socket, Relay 312 3740035 1 Relay - DPDT 313 4460052 1 Connector, Strain Relief 314 3300047 1 Locknut, Conduit 315 0960239 1 Bushing 316 4460051 2 Connector, Strain Relief 317 3300048 2 Locknut, Conduit 318 0960238 2 Bushing 319 1670471 1 Cover 320 3941003 2 Screw, Self-Tapping #10-24NC x 3/8in 0250775 Ref CONVERTOR INSTALLATION (STANDARD PARTS ON
MACHINES BUILT APRIL 1990 TO PRESENT)
401 1600119 1 Convertor Assembly 402 0721014 4 Bolt #10-24NC x 1 3/4in 403 4761000 4 Lockwasher #10 404 3311001 4 Nut #10-24NC 405 4751000 4 Flatwasher #10
REV
C
C
B
B
