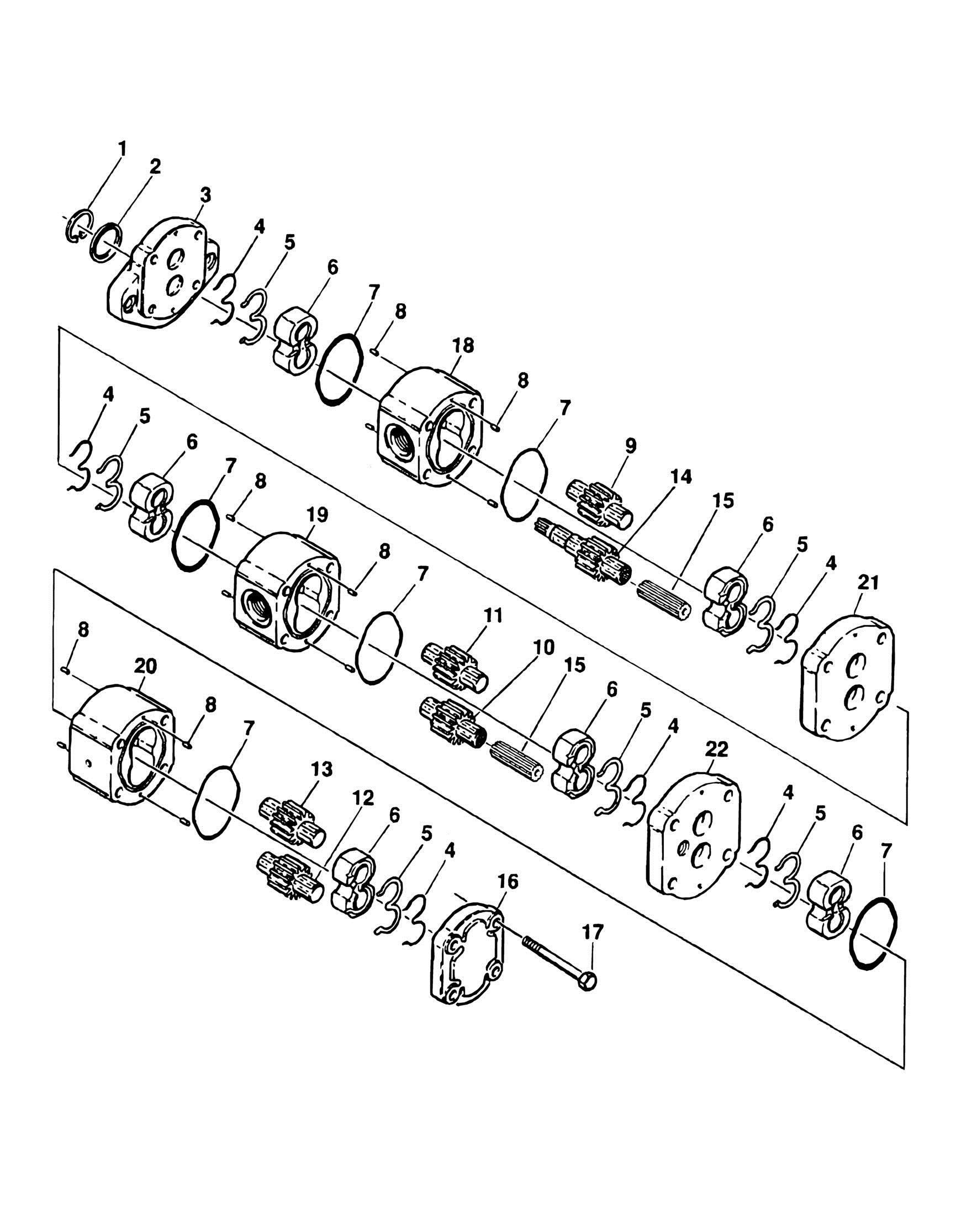

FIGURE 2-17. PUMP ASSEMBLY - BARNES (FORD AND DEUTZ POWERED MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
3600200 Ref PUMP ASSEMBLY - BARNES (FORD AND DEUTZ POWERED
MACHINES)
1 7010955 1 Ring, Retaining 2 Kit 1 Seal, Shaft 3 7010964 1 Flange, Mounting 4 Kit 6 Ring, Backup 5 Kit 6 E-Seal 6 7010957 6 Bearing 7 Kit 6 O-Ring 8 7010959 12 Pin, Dowel 9 7010980 1 Gear, Idler (Section 1) 10 7010981 1 Gear, Idler 11 7010982 1 Gear, Idler 12 7010976 1 Gear, Idler (Section 3) 13 7010954 1 Gear, Idler 14 7010979 1 Gear, Drive 15 7010965 2 Coupling 16 7010960 1 Cover, End 17 7010966 4 Bolt 18 7010967 1 Housing (Section 1) 19 7010968 1 Housing (Section 2) 20 7010969 1 Housing (Section 3) 21 7010970 1 Plate, Distance (Section 2) 22 7010971 1 Plate, Distance (Section 3) 7010962 1 Seal Kit (Includes Items 2, 4, 5 & 7)
