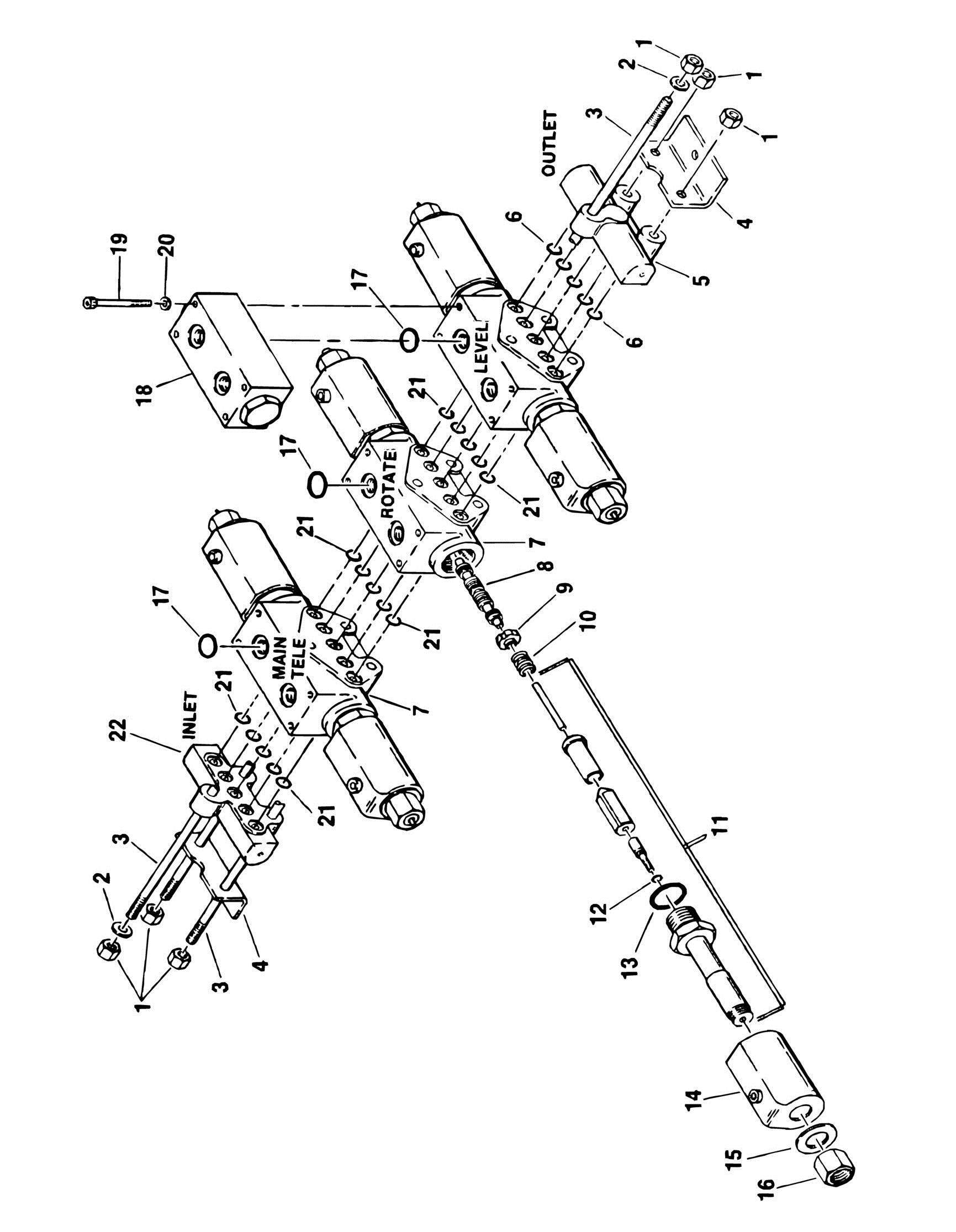

FIGURE 2-8. VALVE ASSEMBLY - FPS

FIGURE 2-8. VALVE ASSEMBLY - FPS

FIGURE 2-8. VALVE ASSEMBLY - FPS

ITEM PART NUMBER QTY DESCRIPTION REV

Ref VALVE ASSEMBLY - FPS 4640544 Ref 4 STACK (Machines with Stepper Valves and Rotate) C 4640556 Ref 3 STACK (Machines with Stepper Valves and without

Rotate/Machines with Vickers Valves and with Rotate)

C 4640555 Ref 2 STACK (Machines with Vickers Valves and without Rotate) C 1 7000585 6 Nut 2 7000586 2 Washer 3 Ref Rod, Tie Options: 3 7006002 3 4 Stack 3 7006059 3 3 Stack 3 7006061 3 2 Stack 4 7006039 2 Bracket, Mounting 5 7006058 1 Section, Valve - Outlet 5 7006055 1 Plug, Closed Center (Not Shown) 6 Kit 5 O-Ring 7 Ref Valve Section - Complete Options (Includes 8-16) 7 7006063 1 Section, Valve - Complete (Main Lift - 4 Stack Used on Stepper Valve Machines) 7 7006041 3 Section, Valve - Complete (Main Tele, Rotate and Level - 4 Stack Used on Stepper Valve Machines) 7 7006041 3 Section, Valve - Complete (Main Lift, Main Tele and Level - 3 Stack Used on Stepper Valve Machines) 7 7006041 3 Section, Valve - Complete (Main Tele, Level and Rotate - 3 Stack Used on Vickers Valve Machines) 7 7006041 3 Section, Valve - Complete (Main Tele and Level - 2 Stack Used on Vickers Valve Machines) 8 Not Available AR Spool (1 per Valve Section) 9 7006037 AR Retainer, Spring (2 per Valve Section) 10 7006036 AR Spring (2 per Valve Section) 11 7006034 AR Tube Assembly (2 per Valve Section) 12 Kit AR O-Ring (2 per Valve Section) 13 Kit AR O-Ring (2 per Valve Section) 14 4640049 AR Coil, Solenoid (2 per Valve Section) 15 Not Available AR Nameplate (2 per Valve Section) 16 7006033 AR Nut (2 per Valve Section) 17 Kit AR O-Ring (2 per Valve Section) 18 7006060 1 Port Block Attachment (Level Section Only) 19 Kit 4 Bolt 20 Kit 4 Washer 21 Kit AR O-Ring (5 per Stack) 22 Ref Inlet Valve Section Options: 22 7006056 1 Inlet Valve Section (1987-1991) (Without Relief Cartridge) 22 7006074 1 Inlet Valve Section (1992 to Present) (With Relief Valve) 7000549 AR Seal Kit - Single Section (Includes 12, 13, 17 & 21) 7006062 1 Seal Kit - Standard Outlet (Includes Item 6) 7000581 Seal Kit - Level Section Port Block (Includes Item 17 and Check Valves O-Rings)
